Hot Dipped Plain Zinc Sheet for Color Coating
- 10000 Ton / Tons per Month
- Qingdao Port China
- T/T
Product Details
Standard: | ASTM, GB, JIS | Grade: | DX51D/DX52D/DX53D/DX54D+Z/ZF | Thickness: | 0.13-5.0mm |
Place of Origin: | Shandong, China | Brand Name: | OEM | Model Number: | Zinc Sheet |
Type: | Steel Plate | Technique: | Cold Rolled | Surface Treatment: | Galvanized |
Application: | Other, Building, Automobiles, Metallurgy and Electrical Equipment | Special Use: | High-strength Steel Plate | Width: | 700-1500mm |
Length: | 12000mm max |
Product Description
Specifications
1. Zinc Sheet in Coil2. Thickness: 0.13-5.0mm
3. Width: 700-1500mm
4. Used for Building, Automobiles, Metallurgy ect.

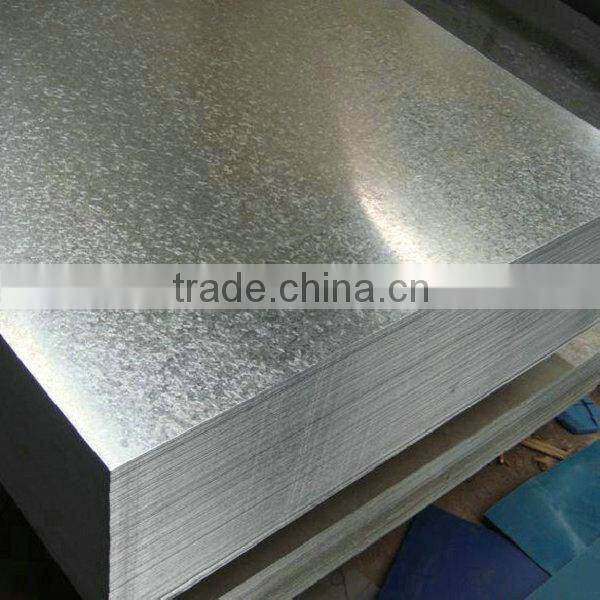

Zinc Sheet
1. Product: Zinc Sheet, Hot Galvanized Sheet, Galvanized Steel Sheet, Hot Dipped Galvanized Sheet, Galvanized Steel Plain Sheet, Alloying Galvanized Sheet
2. Thickness: 0.13-5.0mm
3. Width: 700-1500mm
4. Mass of coating: 60-500g/m²
5. Length: 12000mm max
6. Surface Structure: Smooth+Zero Spangles; Smooth+Regular Spangles
7. Surface Treatment: Oiling, Passivation or Non-chrome passivation, Passivation plus oiling, Non- chrome passivation plus oiling, Fingerprint resistance or Non-chrome fingerprint resistance
8. Features: Excellent Performance, Ideal Combination property including Corrosion Resistance,
Formation and Coating
9. Application:
1) Building Industry: Roof, Door and Window, Roller Shutter Door and Suspended Skeleton
2) Auto Industry: Vehicle Shell, Chassis, Door, Trunk Lid, Oil Tank and Fender
3) Metallurgy Industry: Steel Sash Blank and Color Coated Sheet Substrate
4) Electrical Equipment Industry: Refrigerator Base, Shell, Refrigerating Chamber
10. Material Grade:
Type | Material Grade | Application and characteristics |
Stamping steel | DX51D+Z,DX51D+ZF | Ordinary use, mechanical seaming, deep punching, and ultra-deep punching. Coating and welding performances of alloying hot galvanizing are better. |
DX52D+Z,DX52D+ZF | ||
DX53D+Z,DX53D+ZF | ||
DX54D+Z,DX54D+ZF | ||
Structural steel | S220GD+Z,S220GD+ZF | Used for structure. Good corrosion resistance and processability. |
S250GD+Z,S250GD+ZF | ||
S280GD+Z,S280GD+ZF | ||
S320GD+Z,S320GD+ZF | ||
S350GD+Z,S350GD+ZF | ||
S400GD+Z,S400GD+ZF | ||
S500GD+Z,S500GD+ZF | ||
S550GD+Z,S550GD+ZF | ||
Cold forming high-strength steel | HX260LAD+Z,HX260LAD+ZF | Include low-alloy high-strength steel, and dual-phase steel. Good corrosion resistance and processability. |
HX300LAD+Z,HX300LAD+ZF | ||
HX340LAD+Z,HX340LAD+ZF | ||
HX380LAD+Z,HX380LAD+ZF | ||
HX420LAD+Z,HX420LAD+ZF | ||
HC260/450DPD+Z,HC260/450DPD+ZF | ||
HC300/500DPD+Z,HC300/500DPD+ZF | ||
HC340/600DPD+Z,HC340/600DPD+ZF | ||
HC450/780DPD+Z,HC450/780DPD+ZF |

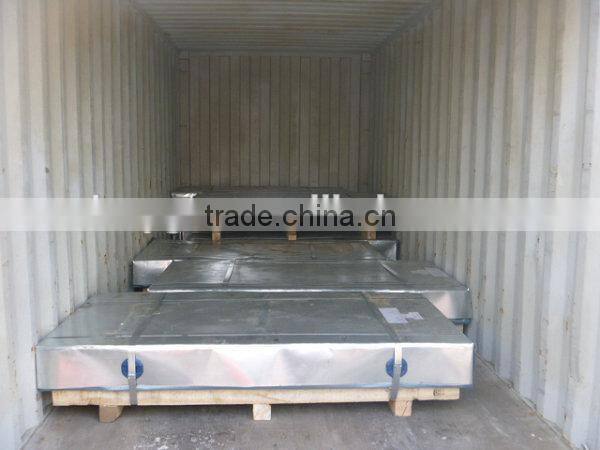

11. Packaging: Standard Seaworthy Packing

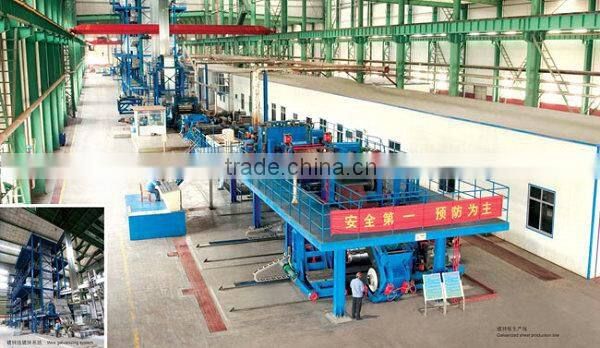

12. Equipment: 5 Galvanized Lines.
Ore equipment: Narrow lap welder of Wuhan Kaiqi and Vertical strip steel cleaning section. It adopts advanced and pragmatic chemical degreasing and electrolytic degreasing phase combination technology, total radiation pipe heating vertical continuous annealing furnace, jet flow line-frequency induction heating ceramic zinc pot, X-ray coating thickness meter, Modified FK air blade, Brushing and polishing machine, Withdrawal and straightening unit, passivation and fingerprint-resisting device, electrostatic oiler, imported CPC and EPC equipment and AC variable frequency speed regulation drive control system.
