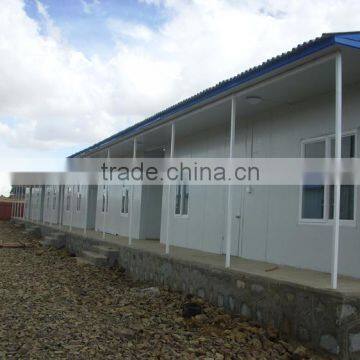

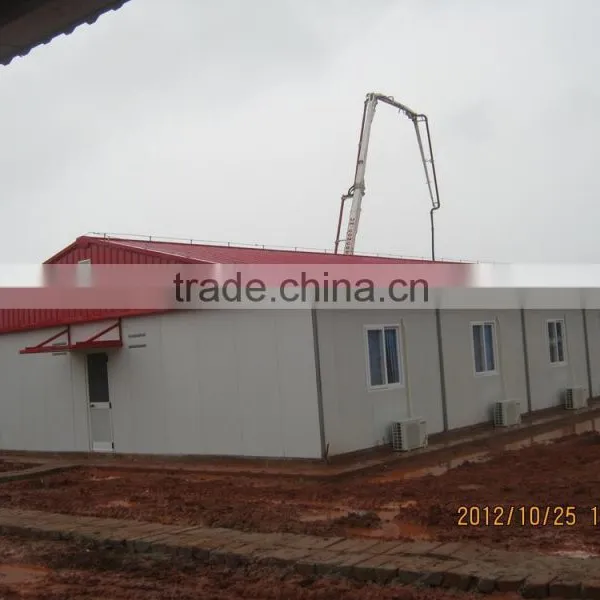

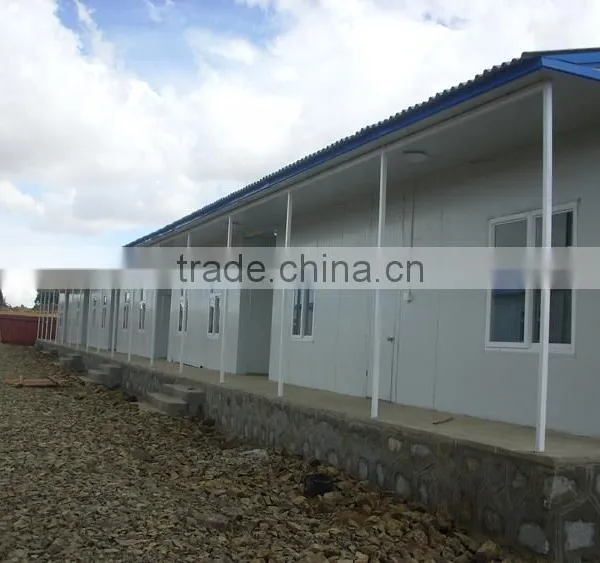

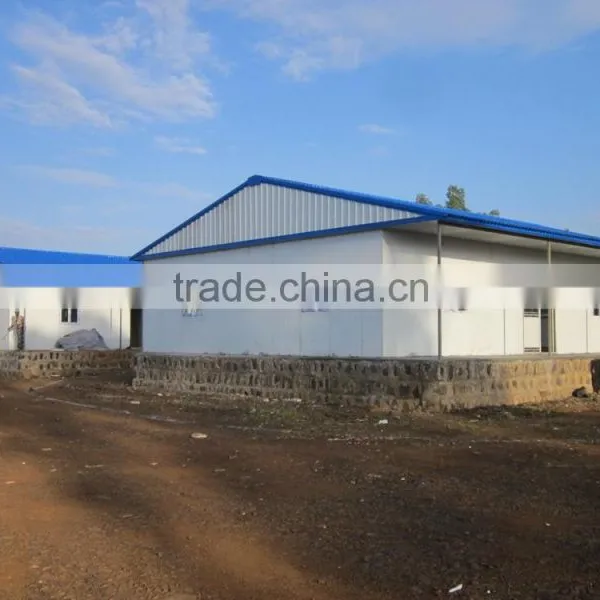

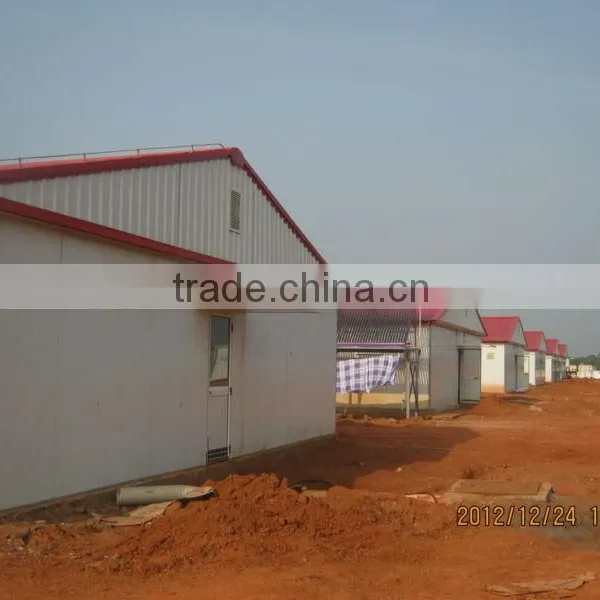

Home room partition panel house(ZB type) is a flexible living house model. The size and layout can be designed as per customers’ requirements and local climate. When delivery, it is knock-down to save space. Based on bolts connection without welding work, it could be assembled and disassembled easily and six common workers can finish 50m2 in 8 hours according to instruction and CD.
The detailed information as follow:
No. |
Sort |
Name |
Specification |
1 |
Specification |
length |
No limited |
2 |
Width |
Less than 11m |
|
3 |
Wall height |
2600mm/2800mm |
|
4 |
Clear height |
2600mm/2800mm |
|
5 |
Roof slope |
15° |
|
6 |
Standard accessory |
Wall board |
75mm thickness double color-steel sandwich panel with polystyrene foam inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/ m².k. |
7 |
False ceiling |
75mm thickness double color-steel sandwich panel with polystyrene foam inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.546w/ m².k. |
|
8 |
Roof board |
color steel corrugated sheet, 0.5mm thickness |
|
9 |
Outside door |
Security door, single door with dimensions of 900*2100mm, furnished with a handle lock with 3keys. Doorframe is made of 1.2mm steel, and door is made of 0.7 mm steel, 90mm thick rock wool insulation foam. |
|
10 |
Inside door |
SIP, single door with dimensions of 750*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam. |
|
11 |
Window(W-1) |
PVC, white color, with dimensions of 1200*1200mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen. |
|
12 |
Window(W-2) |
PVC, white color, with dimensions 500*500mm, glazed with glass in a thickness of 5mm, casement opening, supplied with fly screen. |
|
13 |
Channel |
Galvanized Steel Plain Sheet press moulding Material: Q235. Painted |
|
14 |
Post |
Square steel tube Material: Q235. Painted |
|
15 |
Purline |
Square steel tube Material: Q235. Painted |
|
16 |
Roof truss |
Square steel tube Material: Q235. Painted |
|
17 |
Decoration and connection |
color steel sheet, 0.35mm thickness |
|
18 |
Option |
Decorative floor |
PVC, laminated or ceramic tile |
19 |
Drainage system |
Provided plan, design and construction |
|
20 |
Electric system |
Provided plan, design and construction |
|
21 |
Technical parameter |
Bearing load |
30kg/m2 |
22 |
Wind pressure: |
0.45KN/M2 |
|
23 |
Fire proof |
B2 grade |
|
24 |
Resistant temperature |
-20 ºC to 50ºC |
