puhui t960,conveyor reflow oven,
benchtop reflow oven, led soldering machine, smd oven, smt line machine
- 960 x 300mm soldering area
- 5 temperature zones
- hot sale, good quality
- very easy operate

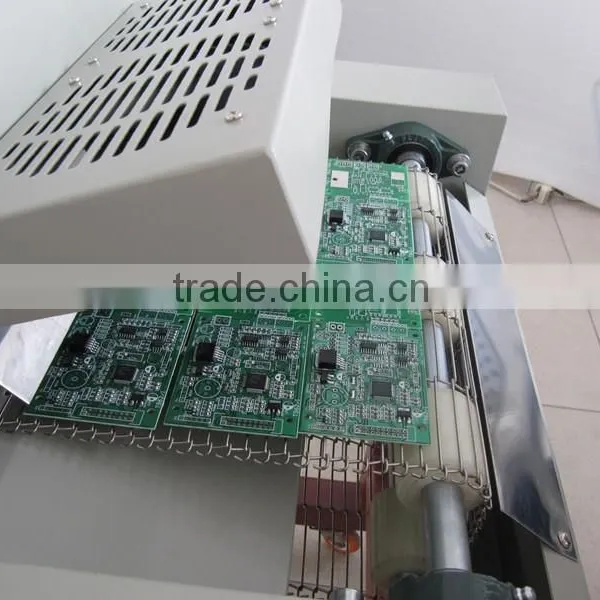

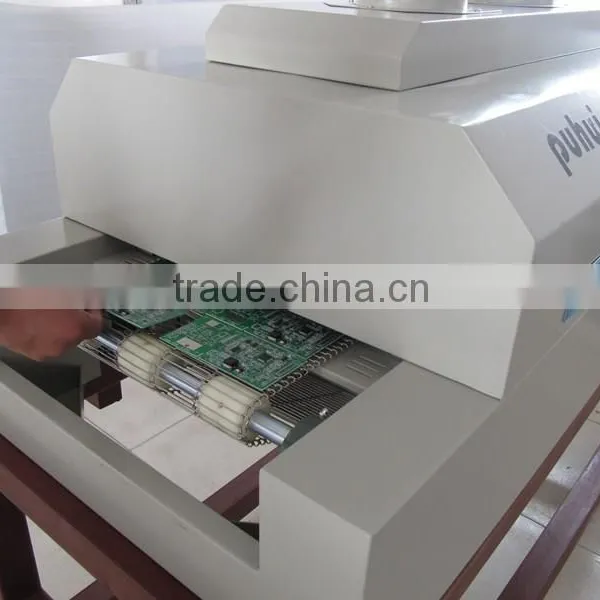

Actual Machine picture
LED reflow oven T-960
1. Infrared and hot air heating technology,suit for uninterrupted soldering the LED and BGA components.
2. Crawler-type and five temperature zones heating systems,
and each temperature zone uses independent PID controlling and up-down heating type
3. Eight temperature waves
4. Programmable technology, preset the temperature wave memory storage function
5. Thermocouple temperature measurement, compensation circuit
6. PID intelligent temperature control technology
7. Imported frequency conversion motor, 1:150 imported turbine speed reducer, speed adjustable range 0-1600mm/min.
8. Independent wheel structure and special stainless steel strut, speed precision can reach ±10mm/min.
9. Independent cooling zone
10. Easy operate, perfect LCD display, no need to connect with the PC
11. Good build quality, big working area, easy transportation or storage.
Model |
T-960 |
The heating zone quantity |
upper3/down2 |
The length of the heating zone |
960mm |
The heating type |
Infrared and hot air |
The cooling zone quantity |
1 |
Maximum width of PCB board |
300MM |
The operation direction |
From left to right |
Transmission type |
Net transmission+chain transmission |
The speed of conveyer belt |
0-1600mm/min |
The power supply |
380V/220V |
Power |
4.5KW |
Heating up time |
Around 15mins |
Temperature control range |
Room temperature~300°C |
Temperature control mode |
PID |
Temperature control accuracy |
±1°C |
PCB temperature distribution balance |
±2°C |
Overall dimensions |
1450×630×470 |
Machine weight |
90KGS |
Warranty
Warranty – the main body maintains for one year and the spare parts maintains for three months.
Service – provide the immediate network online Q/A and the technical advisory work service
We are the ONLY and ORIGINAL manufacturer – Taian Puhui
Please contact us for good price and more details
Skype : Jayzhang223
Trademanager : cntech168
QQ: 2406360635
Cell: 86 18865488821
Or send inquiry to us
Hope to cooperate with you, thank you
