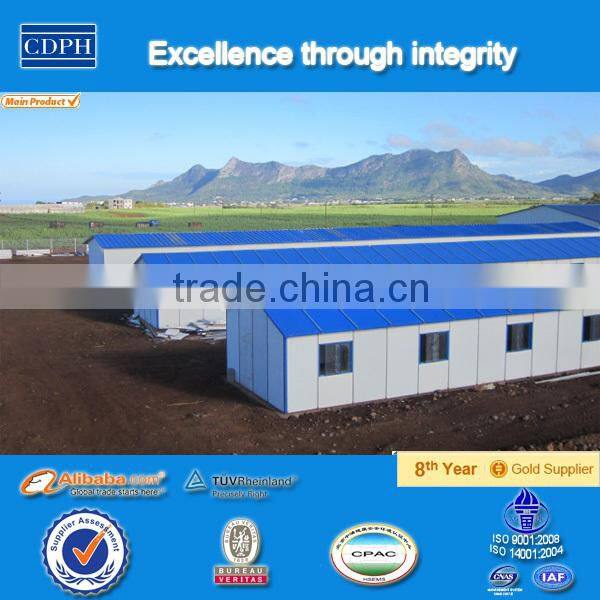

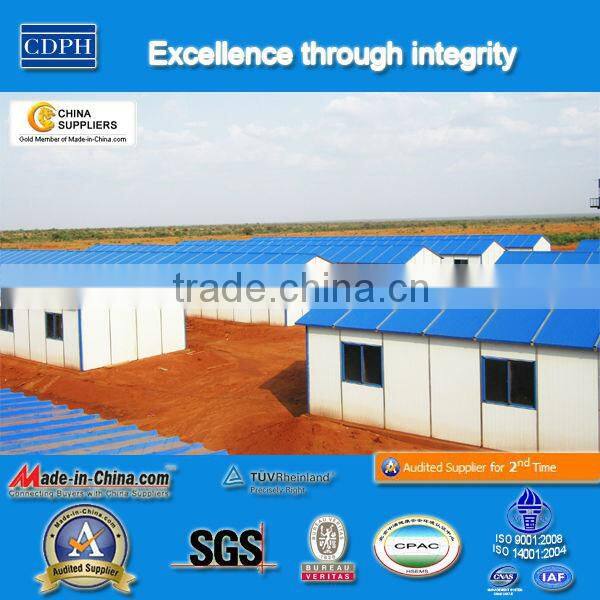

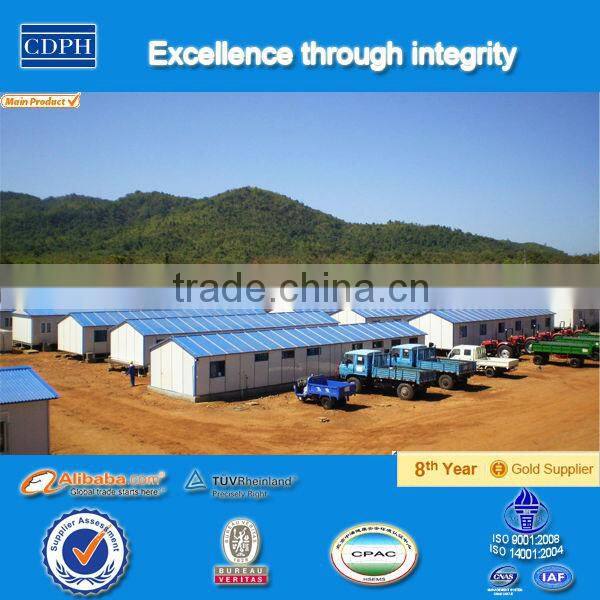

Prefabricated Modern Modular House , Dismantled and Moved House
US$ 60 - 80
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Beijing, China
Brand Name:
CDPH
Model Number:
A Type house
Payment & Shipping
Payment Methods:
Port of Shipment:
Xingang(tianjin)
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Fast Installation and Steel Structure Prefab BuildingsUS$ 60 - 80MOQ: 50 Square Meters -
K Type China Manufacturer Economic Prefabricated Kitchen DinningUS$ 45 - 75MOQ: 20 Cubic Meters
-
High Quality Steel Modular Housing for Mining and Construction Site Worker AccommodationUS$ 70 - 90MOQ: 150 Square Meters
-
Pre Built Buildings for Building and Construction CompanyUS$ 50 - 65MOQ: 100 Square Meters
-
ISO9001 Certified Low Cost Light Steel China Ready Steel Houses Made in ChinaUS$ 50 - 70MOQ: 50 Square Meters
Place of Origin
Beijing, China
Brand Name
CDPH
Model Number
A Type house
Material
Steel
Use
Carport, Hotel, House, Other, Shop, Toilet, Warehouse, Carport, Hotel, House, Kiosk,Booth, Sentry Box,Guard House, Shop, Toilet, Warehouse, Workshop,Plant
Prefabricated house (A type) is a standard modular house. The width is 5.048m as fixed size but the inside layout can be designed as per customers’ requirements. When delivery, it is knock-down to save space. Based on bolts connection without welding work, it could be assembled and disassembled easily and four workers can finish 120m2 in 8 hours according to instruction and CD.
The detailed information as follow:
| No. | Main Item | Subitem | Specification | Remark | |
| 1 | Basic Information | Product Item | Stardard Position | Standard | / |
| 2 | Possibility of Reassemble | Suitable for disassembled and reassembled | / | ||
| 3 | Basic Specification | Span | 5060mm | Fixed | |
| 4 | Length | (n-2)*1224+2*1106mm | n is integer,and 4≤n≤40 | ||
| 5 | Wall Height | 2700mm | / | ||
| 6 | Net Height | 2700mm | / | ||
| 7 | Ridge Height | 3750mm | / | ||
| 8 | Technical Data | Roof Live Load | 0.3 KN/m2 | / | |
| 9 | Wind Load | 0.45 KN/m2 | / | ||
| 10 | Suitable Temperature | (-)15°C~(+)50°C | / | ||
| 11 | Material Data | Structure | Column | cold bend steel plate | grey color |
| 12 | Main Beam | ||||
| 13 | Tie Rod | steel plate bending | galvanized and painting | ||
| 14 | Floor Beam | steel plate bending | anti-rust painting | ||
| 15 | Items Required to Maintain | Wall Panel | 50mm color steel sandwich panel | white in double side | |
| 16 | Roof Panel | 60mm color steel sandwich panel | top:blue bottom:white | ||
| 17 | Door | outdoor:sandwich panel door | EPS insulation | ||
| 18 | indoor:sandwich panel door | EPS insulation | |||
| 19 | Window | color steel sliding window | blue | ||
| 20 | Installation | Tools | spanner, tape, etc. | requiring electric power at working site | |
| 21 | Efficiency | (construction area)120m2 per day by four people(Main Structure) | simple training | ||
| 22 | Loading | Square Meter | around 350m2/40 HC(Main Structure) | / | |
