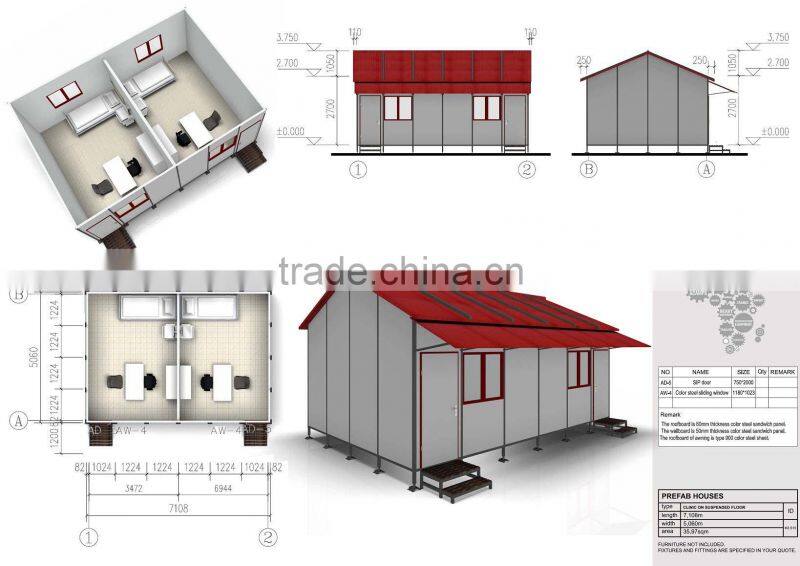

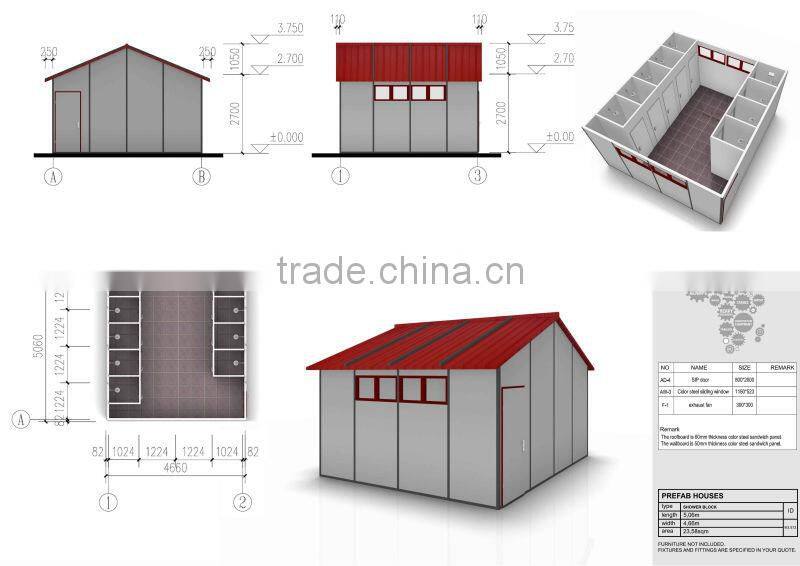

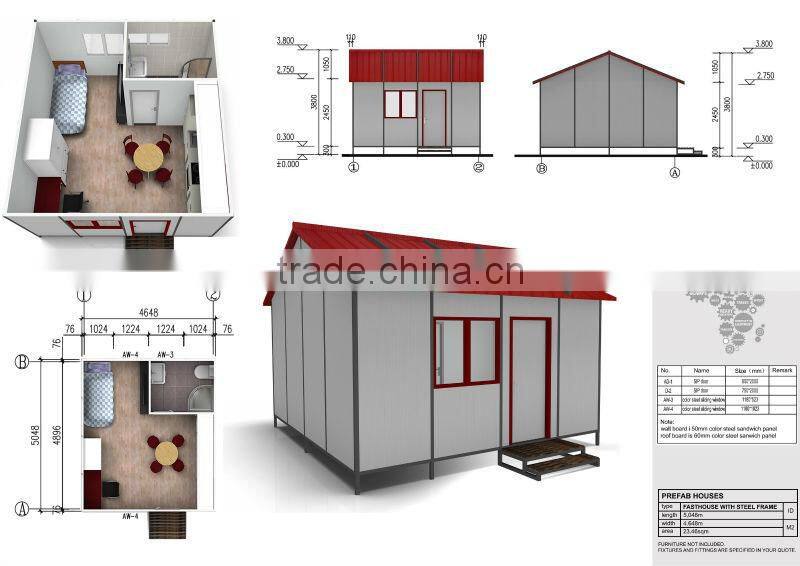

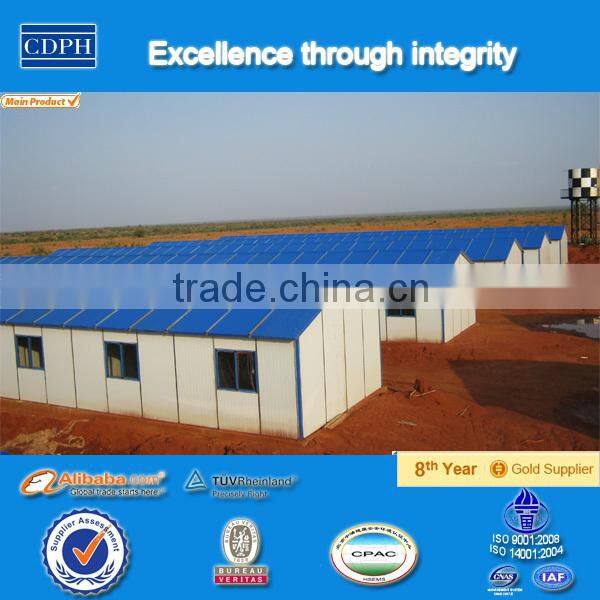

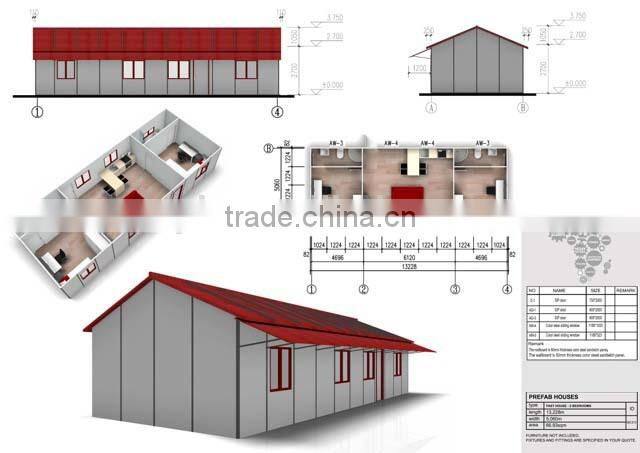

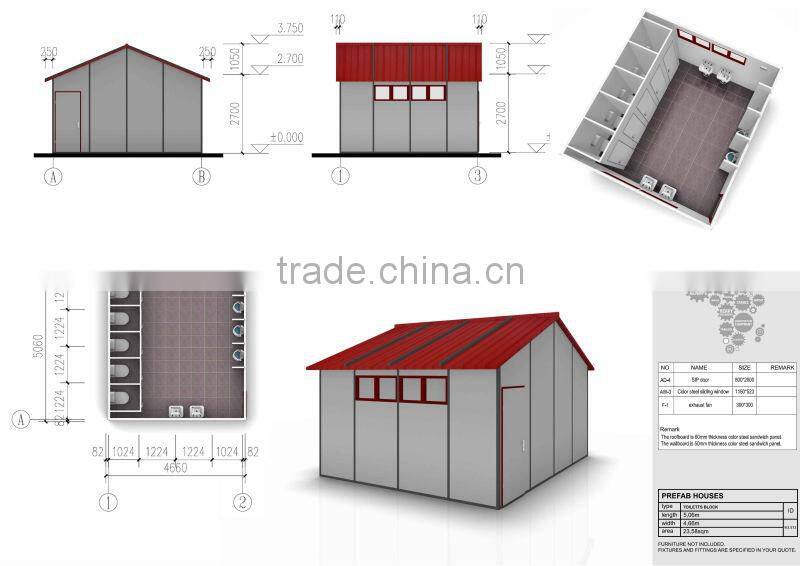

Prefabricated house (A type) is a standard modular house. The width is 5.048m as fixed size but the inside layout can be designed as per customers’ requirements. When delivery, it is knock-down to save space. Based on bolts connection without welding work, it could be assembled and disassembled easily and four workers can finish 120m2 in 8 hours according to instruction and CD.
The detailed information as follow:
| No. | Main Item | Subitem | Specification | Remark | |
| 1 | Basic Information | Product Item | Stardard Position | Standard | / |
| 2 | Possibility of Reassemble | Suitable for disassembled and reassembled | / | ||
| 3 | Basic Specification | Span | 5060mm | Fixed | |

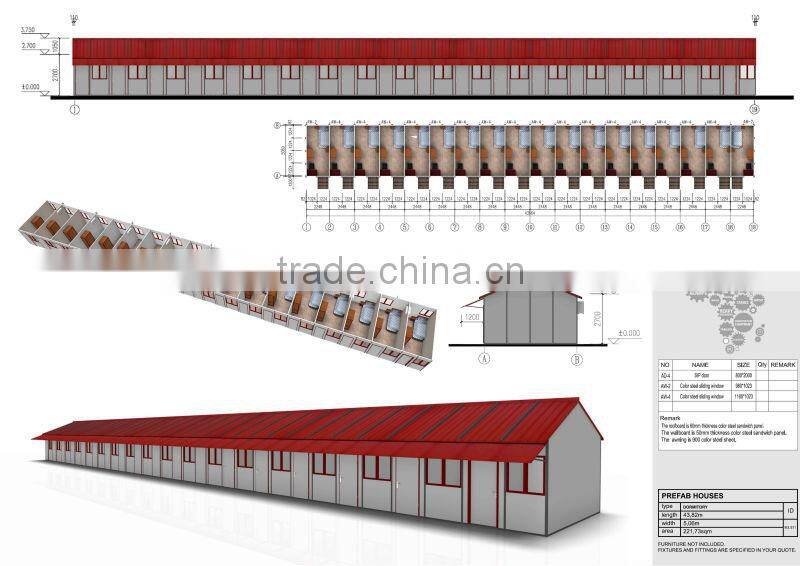

| 4 | Length | (n-2)*1224+2*1106mm | n is integer,and 4≤n≤40 | ||
| 5 | Wall Height | 2700mm | / | ||
| 6 | Net Height | 2700mm | / | ||
| 7 | Ridge Height | 3750mm | / | ||
| 8 | Technical Data | Roof Live Load | 0.3 KN/m2 | / | |
| 9 | Wind Load | 0.45 KN/m2 | / | ||
| 10 | Suitable Temperature | (-)15°C~(+)50°C | / | ||
| 11 | Material Data | Structure | Column | cold bend steel plate | grey color |
| 12 | Main Beam | ||||
| 13 | Tie Rod | steel plate bending | galvanized and painting | ||
| 14 | Floor Beam | steel plate bending | anti-rust painting | ||
| 15 | Items Required to Maintain | Wall Panel | 50mm color steel sandwich panel | white in double side | |
| 16 | Roof Panel | 60mm color steel sandwich panel | top:blue bottom:white | ||
| 17 | Door | outdoor:sandwich panel door | EPS insulation | ||
| 18 | indoor:sandwich panel door | EPS insulation | |||
| 19 | Window | color steel sliding window | blue | ||
| 20 | Installation | Tools | spanner, tape, etc. | requiring electric power at working site | |
| 21 | Efficiency | (construction area)120m2 per day by four people(Main Structure) | simple training | ||
| 22 | Loading | Square Meter | around 350m2/40 HC(Main Structure) | / | |
Production Capacity:
Product Line Name | Production Line Capacity | Actual Units Produced(Previous Year) |
Modular House | 100,000 m2 / Month | 620,000 m2 |
Export Market Distribution:
Market | Revenue(Previous Year) | Total Revenue (%) |
South America | confidential | 8.0 |
Southeast Asia | confidential | 12.0 |
Africa | confidential | 42.0 |
Oceania | confidential | 5.0 |
Mid East | confidential | 1.0 |
Eastern Asia | confidential | 3.0 |
Central America | confidential | 4.0 |
South Asia | confidential | 7.0 |
Domestic Market | confidential | 18.0 |
Production Machinery:
Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
Punching Machine | JB23-63A | 4 | 7.0 | Acceptable |
Sawing Machine | No Information | 4 | 7.0 | Acceptable |
Drilling Machine | ZQ4-16 | 13 | 3.0 | Acceptable |
Bending Machine | WC67Y, SCFHB-001 | 4 | 7.0 | Acceptable |
Shearing Machine | QC12Y-4*4000 | 2 | 7.0 | Acceptable |
Coreboard Production Line | No Information | 3 | 7.0 |
