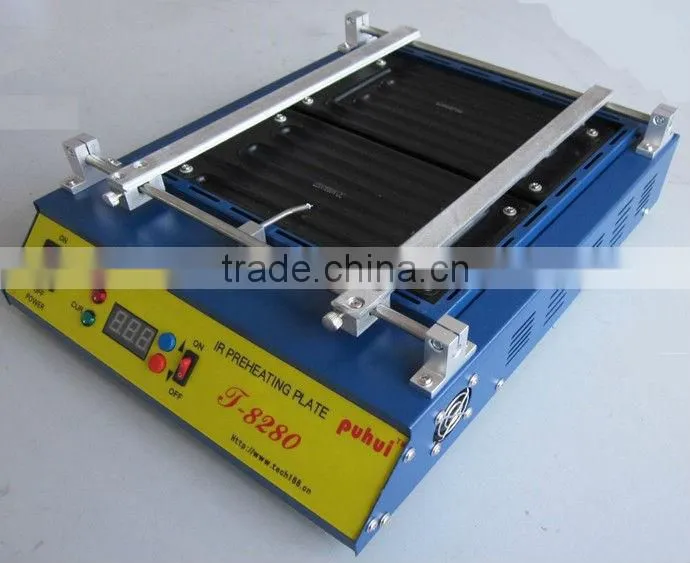

IR-preheating hot plate,puhui T8280,bga rework station,taian,puhui
USD $1 - $199
/ Piece
1 Piece(Min.Order)
- 600 Set / Sets per Month
- Qingdao/shenzhen
- Credit Card
You May Like
-
Denoh For Connecting Automation Special Machine 500e Dgn Flux Core Welding Machine Multi Function
-
High Quality Multi-function Integrated Multi-purpose Multifunctional Welding Machine
-
500e Dgn Flux Core Integrated Multi-purpose Multi-function Welder
-
Denoh Digital Push Wire Type Engine Welding Machine
-
Denoh Engine Welding Machine Push Wire Type High Quality China
-
Denoh Multi-function Welder For Connecting Automation Special Machine At Wholesale Price
Product Details
| Place of Origin: | Shandong, China | Brand Name: | PUHUI | Model Number: | IR-preheating plate T-8280 |
| Voltage: | AC110V/AC220V | Dimensions: | 39x18x49cm | Weight: | 8Kgs |
| Usage: | Preheater hot plate | Certification: | CE |
Product Description
Specifications
IR-preheating plate T-8280Easy operate
Original manufacturer
Factory price supply
CE passed
IR-preheating hot plate,puhui T8280,bga rework station,taian,puhui
Products Features:
1. Infrared welding technology which was developed independently, advanced PID intelligent temperature, controls temperature more accurate.
2. T-8280 can heat PCB board and component which contains lead or not,especially BGA and SMD parts.
3. Use infrared heat, easy to cut through, heat evenness, doesn’t have hot air flow, won’t shift the small components on the PCB board,ensure the welding quality.
4. With 1500W heating system, heating area 280x270mm. Can use with the hand-held infrared rework station T-835.
5. Easy operate; you can operate it after simple training.
6.T-8280 will satisfy soldering/unsoldering of phones, computers, notebooks, play station machines, etc.
Technical Parameter
Work bench size | 410x316mm |
Rated voltage and frequency | AC220-230v/AC110V 60/50Hz |
Complete machine power | 1600W |
Preheating plate power | 1500W |
Preheating plate size | 280x270mm |
Preheating plate temperature adjustable | 0-450 |
Main Components:
Preheating plate main body | 1 |
Temperature sensor | 1 |
PCB board holder | 1 |
Power line | 1 |
User manual (compact disc) | 1 |
Main component function explanation
Operation instructions
1. Inspect the machine and then open it
Check the connection of the power line.
Turn on the power switch. Allow the T-8280 Power-On-Self-Test (POST) to complete. After this, Temperature set-points will display last value used.
The black switch on the front panel are used to control the infrared preheating plate; press the blue button (up),the red button(down), can adjust the infrared preheating plate temperature between 0 and 450. Press the buttonON,the infrared preheating plate starts to work, pressOFF,it stops working.
2. Operation of preheating PCB board
(1) The placement and adjustment of the PCB board
According to the size of the PCB board, adjust the PCB board holder, then put the PCB board and fix the adjust knob.
According to the size of PCB board and welding technological requirement, press the blue button (up)and the red button (down), regulate the output temperature of preheating plate between 0 and 450
(2) Preheating open and close:
Press the ON button,open the preheating plate about 3-5 minutes, make the temperature be the setting value then carry on the next step .
Finishing, press OFF, the preheating plate stops working.
AttentionDont close the power switch until the machine full cooling.
The preheating temperature set: If the PCB board contains lead, adjust the infrared preheating plate temperature to 100-120; if not, adjust to 120-140. You can also set the preheating temperature according to the users experience and technology.
3. Machine installation and adjustment:
The preheating plate heating type includes: the total pressure flow-through heating way and the PID percentage adjustment way. You can adjust it according to the preheating allowance. Generally speaking, if the preheating temperature is lower than 250 , selects the PID percentage adjustment method; and if the preheating temperature is higher than 250, use the total pressure flow-through heating way.
Adjustment method
1. Press power-on, display: C=?
2. Press choose 0 or 1,every press the status change one time,
C=0 is PID percentage adjustment, C=1 is switching control.
Cautions!
1. After finishing, dont turn off the power immediately; make sure the infrared preheating plate complete cooling.
2. Keep the ventilation free-flowing, the infrared preheating plate clean, use dehydrated alcohol clean it regularly!
3. The high temperature operation, pay attention, avoid scalding.
4. If you dont use the machine for a long time, youd better pull off the power source plug!
Warranty
The whole machine maintains for one year and the spare parts maintains for three months. .Provides the immediate network online Q/A and the technical advisory work service.
Statement
If there is any difference between users operating manual and actual product, according to the actual product!
Contact Us
- Taian Puhui Electric Technology Co., Ltd.
- Contact nameKelly Zhang
- Phone86-538-6138575
- AddressSouth Sec. Of Tianzhufeng Road
