AISI 1026 St52.3 CDS DOM Honed Tubing
- Qingdao
- T/T Money Gram
You May Like
-
Hot Rolled Structural Using Schedule 40 Carbon Steel Tubes
-
Hydraulic Cylinder Using E10305-1 Precision Carbon Steel Piping
-
Hydraulic Cylinder Cold Drawing Welded Pipe Lowest Price
-
Stainless Steel Honed Tube ISo9001 Standard High Tolerance
-
Top Material 2013 SRB Tube for Hydraulic High Reputation
-
Hydraulic Cylinder 3 Inch Carbon Seamless Steel Pipes
Product Details
| Thickness | 2, 30 | Section Shape | Round | |
| Outer Diameter | 30 - 250 mm | Place of Origin | Shandong, China | |
| Secondary Or Not | Non-secondary | Application | Other, Hydraulic Pipe, hydraulic cylinder tube | |
| Technique | Cold Drawn | Certification | Other, ISO9001:2008 | |
| Surface Treatment | Other, honed | Alloy Or Not | Non-alloy |
Product Description
Specifications
1 ID30-250mm W.T.2-30mm2 ISO certificated DIN2391
3 Straightness:0.3~1mm/m
4.MOQ:5Mt package accor
5. En10305-1 En10305-2
Commodity name: AISI 1026 St52.3 CDS DOM Honed tubing

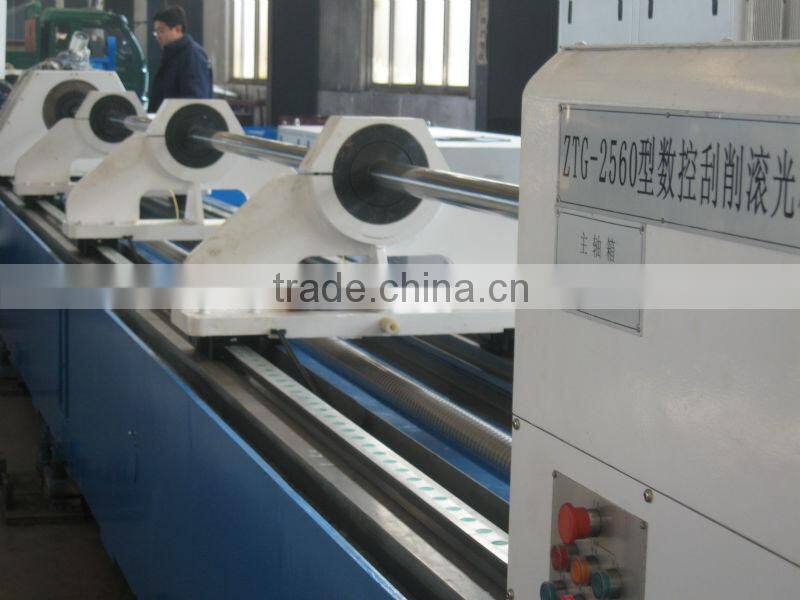

Honed Tubing: Our honed tubing is produced using our Suitable To Hone Drawn Over Mandrel (DOM) and Cold Drawn Seamless CDS. This tubing is ready to use for hydraulic cylinder applications without further ID processing. The honing process involves using abrasive polishing stones and abrasive paper to remove small amounts of material, to produce extremely precise ID dimensions and improved finishes.
- Made from 1026 or ST52.3 Drawn over mandrel and cold drawn seamless tubing.
- stocked to plus side tolerances and also stocked to minus side tolerances.
- Stocked Size Range: 1-1/2” – 14” Honed ID; 3/16” – 1” wall thickness
- Stocked in 20’ random lengths
- Cut to length sizes
- Imperial and metric sizes
- Suitable to hone sizes
- 16 Max RMS ID Finish
- We can process to your custom size
Variety
Processing | Cylinder Diameter | Straightness | Size Accuracy | W.T/mm | Inner Bore Roughess |
Cold drawn | ID30-250 | 0.3 | H9-H11 | ±10% | 0.4~1.6um |
Honed tube | ID50-250 | 0.3 | H7-H9 | ±10% | <0.4um |
Mechanics performance
Material | Tensile strength | Yield strength | Elongation | Hardness |
Ck20/20#/AISI1020 | >520 N/ mm2 | >375 N/mm2 | >15% | >85HB |
Ck45/45#/AISI1045 | >600 N/ mm2 | >520 N/ mm2 | >15% | >85HB |
ST52/16Mn/Q345D | >600 N/ mm2 | >520 N/ mm2 | >15% | >85HB |
25Mn/STKM 13C-T | >600 N/ mm2 | >530 N/ mm2 | >15% | >85HB |
Dimension tolerance
ID size | ID deviation (mm) | |||
H7 | H8 | H9 | H10 | |
30 | +0.021 0 | +0.033 0 | +0.052 0 | +0.084 0 |
>30~50 | +0.025 0 | +0.039 0 | +0.062 0 | +0.100 0 |
>50~80 | +0.030 0 | +0.046 0 | +0.074 0 | +0.120 0 |
>80~120 | +0.035 0 | +0.054 0 | +0.087 0 | +0.140 0 |
>120~180 | +0.040 0
| +0.063 0 | +0.100 0 | +0.160 0 |
>180~250 | +0.046 0 | +0.072 0 | +0.115 0 | +0.185 0 |
>250~315 | +0.052 0 | +0.081 0 | +0.130 0 | +0.210 0 |
>315~400 | +0.0527 0 | +0.089 0 | +0.140 0 | +0.230 |
Delivey conditions:
- Standard packing with plastic caps and strapped bundles.
- Commercial length 2000~10500mm,custom lengths upon request
- Surface protection
We can supply cold drawn/cold rolled seamless tube,honed tube,hydraulic tube,hydraulic cylinder tube. Please feel free to contact us.

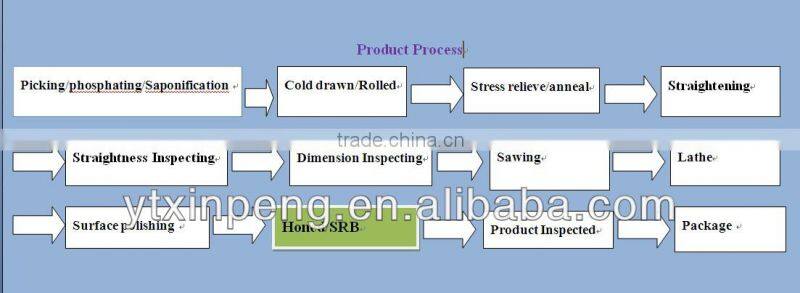

- Pretreatment : Acid cleaning- Parkerizing
- Cold drawn/cold rolled
- Annealing furnace—— stress-relieving (+SR)
- Straightener—— Straightening/ Leveling
- Straightness inspecting
- Dimension inspecting
- Sawing off not good parts

- Lathe
- Surface Polishing
Honed/SRB
Application: Hydraulic cylinder tube
Any need, please feel free to contact us!
