Specifications
1. ID30-250mm W.T.2-30mm2 .ISO certificated DIN2391
3.MOQ:5MT
Honed Welded cylinder tube EN10305-2 High standard

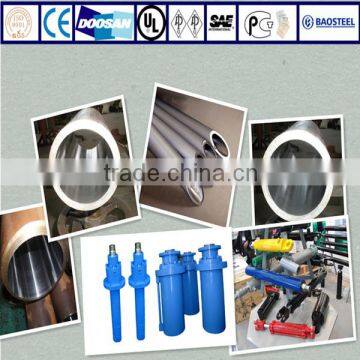

Commodity name: Honed Welded cylinder tube EN10305-2 High standard
Yan Tai Xinpeng Steel Pipe Co., Ltd. was established in December, 1992, with the registered capital of 5 million Yuan. Xinpeng Company Located in Yantai which is one of the beautiful coast city of China.
(Product Introduction)
1.Material:20# Hydraulic tube 20# (CNS S20C,BSIC22,AFNORC22,UNIC20 UBNC25-1 AISI/SAE1020 JISS20C/S22C ASTM A519 Grade B)
- Mechanical Property
Material | Tensile strength | Yield strength | Elongation | Hardness |
Ck20/20#/AISI1020 | ≥520 N/ mm2 | ≥375 N/mm2 | >15% | >85HB |
- Technique:Cold drawn
- Technical Specification: Suitable for SRB/Honed as hydraulic cylinder tube
- Surface Quality(Good quality after coating)
- Other technique Parameter
Material | ODmm | ID mm | Tolerance | ||||
ODmm | IDmm | W.T(mm) | Ovality | Curvature | |||
20# | 40-74 | 30-65 | ±0.01 | -0.3,-0.5 | ≤0.5 | ≤0.1 | 0.3 |
74-98 | 65-85 | ±0.01 | -0.4,-0.6 | ≤0.5 | ≤0.15 | 0.3 | |
100-116 | 85-100 | ±0.02 | -0.4,-0.6 | ≤0.6 | ≤0.15 | 0.3 | |
124-134 | 110-115 | ±0.02 | -0.6-0.8 | ≤0.6 | ≤0.20 | 0.3 | |
140-158 | 120-135 | ±0.02 | -0.7,-0.9 | ≤0.8 | ≤0.20 | 0.3 | |
165-176 | 140-150 | ±0.02 | -0.7,-0.9 | ≤0.8 | ≤0.20 | 0.3 | |
188-203 | 160-180 | ±0.02 | -0.7,-0.9 | ≤0.8 | ≤0.20 | 0.3 | |
1.Material:45# Hydraulic tube 45# (JIS S45C, ASTM 1045, DIN C45, BS IC45,AFNOR CC45,NF C45 UNI C45 NBNC45-1, SS 1650, AISI/SAE 1045,ISO:C45E4)
2.Mechanical Property
Material | Tensile strength | Yield strength | Elongation | Hardness |
Ck45,45# AISI1045 | ≥600 N/ mm2 | >520 N/mm2 | >15% | >85HB |
3.Technique:Cold drawn
4. Technical Specification: Suitable for SRB/Honed as hydraulic cylinder tube
5.Surface Quality(Good quality after coating)
6.Other technique Parameter
Material | ODmm | ID mm | Tolerance | ||||
OD(mm) | ID(mm) | W.T(mm) | Ovality | Curvature | |||
45# | 40-74 | 30-65 | ±0.01 | -0.3,-0.5 | ≤0.5 | ≤0.1 | 0.3 |
74-98 | 65-85 | ±0.01 | -0.4,-0.6 | ≤0.5 | ≤0.15 | 0.3 | |
100-116 | 85-100 | ±0.02 | -0.4,-0.6 | ≤0.6 | ≤0.15 | 0.3 | |
124-134 | 110-115 | ±0.02 | -0.6-0.8 | ≤0.6 | ≤0.20 | 0.3 | |
140-158 | 120-135 | ±0.02 | -0.7,-0.9 | ≤0.8 | ≤0.20 | 0.3 | |
165-176 | 140-150 | ±0.02 | -0.7,-0.9 | ≤0.8 | ≤0.20 | 0.3 | |
188-203 | 160-180 | ±0.02 | -0.7,-0.9 | ≤0.8 | ≤0.20 | 0.3 | |
