Help CenterPuhui T-962 Infrared Reflow Oven, Bga Reflow Soldering Oven,smt Reflow Oven, Infrared IC Heater,pcb Soldering Machine T962
Related Products
-
T-962A Infrared IC Heater/leadfree/SMT/desk/small Reflow Oven/price/cost/wave Soldering MachineUS$ 1 - 499MOQ: 1 Piece -
Mini Wave Soldering Machine,desktop Infrared Reflow Oven,puhui T962AUS$ 1 - 499MOQ: 1 Set
-
Mini Desktop Reflow OvenT962 Infrared ic Heater, Automatic Wave Reflow Soldering Oven,solder,AC110V/220V,machine,taian.puhuiUS$ 1 - 299MOQ: 1 Piece
-
Desktop Reflow Oven, Puhui T962, Infrared IC Heater T-962,mini Wave Soldering Machine,price,taianUS$ 1 - 299MOQ: 1 Set
-
Infrared ic Heater T962C, Reflow Oven Desktop,mini Wave Soldering Machine, Infrared Soldering Station,taian Puhui T962CUS$ 1 - 599MOQ: 1 Piece
Specifications
T962 reflow oven can solder single or double-sides PCBEasy operate, can solder automatic
original manufacturer
CE passed

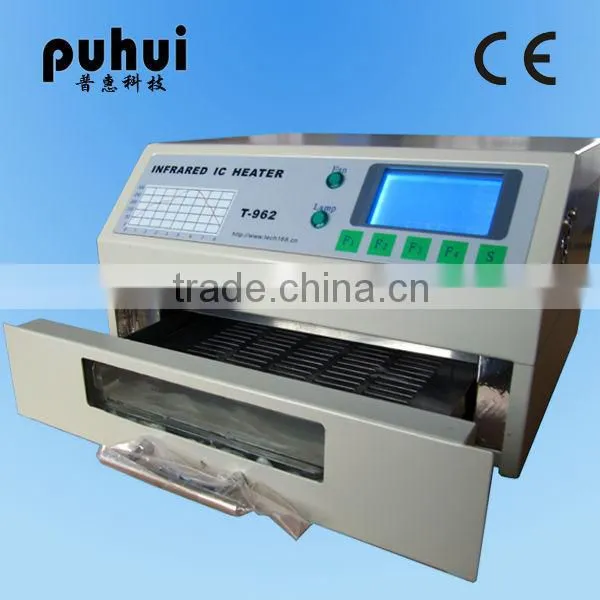

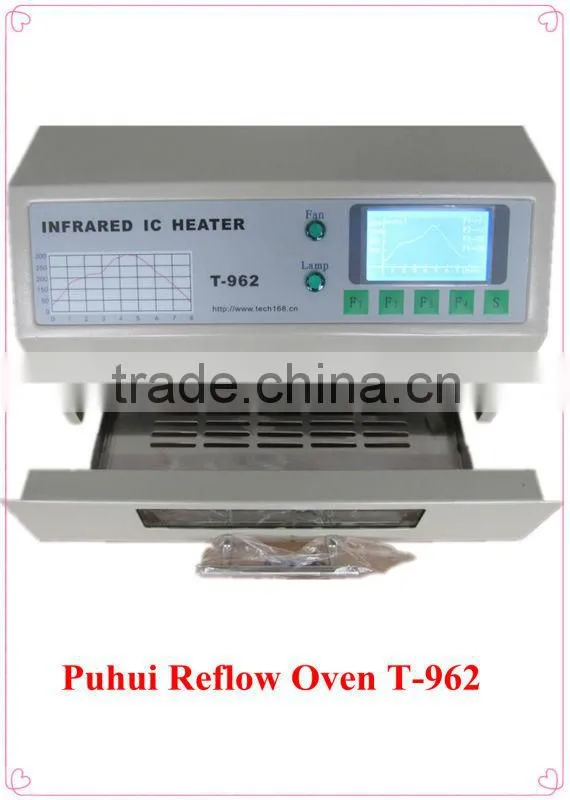

Puhui T-962 Infrared reflow oven, bga reflow soldering oven,smt reflow oven, Infrared IC Heater,pcb soldering machine t962
FEATURES
(1) A large infrared soldering area
Drawer size: 180*235mm; this increases the usage range of this machine drastically and makes it an economical investment.
(2) Choice of different soldering cycles
Parameters of eight soldering cycles are predefined and the entire soldering process can completed automatically from Preheat, Soak and Reflow through to cool down.
(3) Special heat up and temperature equalization with all designs
Uses up to 800 Watts of energy efficient Infrared heating and air circulation to re-flow solder.
(4) Ergonomic design, practical and easily operated
Good build quality but at the same time light weight and a small footprint allows the T962 to be easily bench positioned transported or stored.
(5) Large number of available functions
The T962 can solder most boss-eyed or double-face PCB boards small parts, for example CHIP, SOP, PLCC, QFP, BGA etc. It is the ideal rework solution from single runs to on-demand small batch production.
Technical Parameter
Power supply AC110V/ 50Hz AC220V /60Hz
Rated power 800W
Maximum Soldering Area 180×235 mm
Temperature Range 0℃-280℃
Cycle Time 1~8 min
