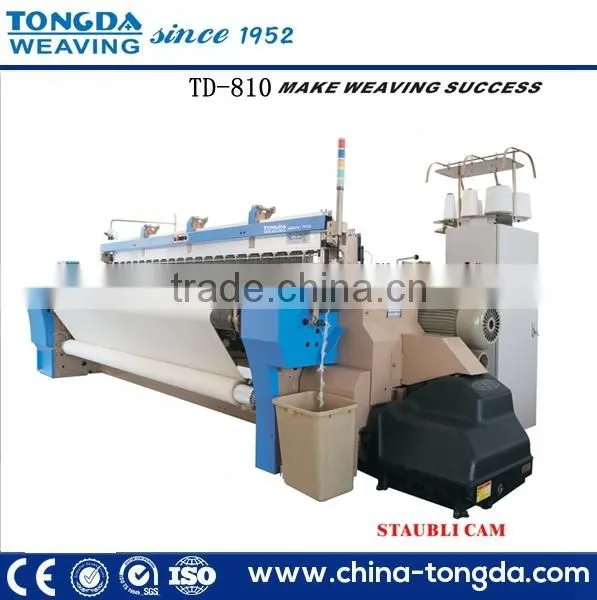

TDA-810 High Speed Air jet loom
Product description
function and characteristics
♥ This series of looms due to its high rigid frame structure, suitable for weaving high density, high fine fabric.
♥ A let-off, take-up and each detection unit are used in electronic control thus reduce the stop block,
the mechanical stop and warp or weft weaving defects such as short rates to improve the quality of production.

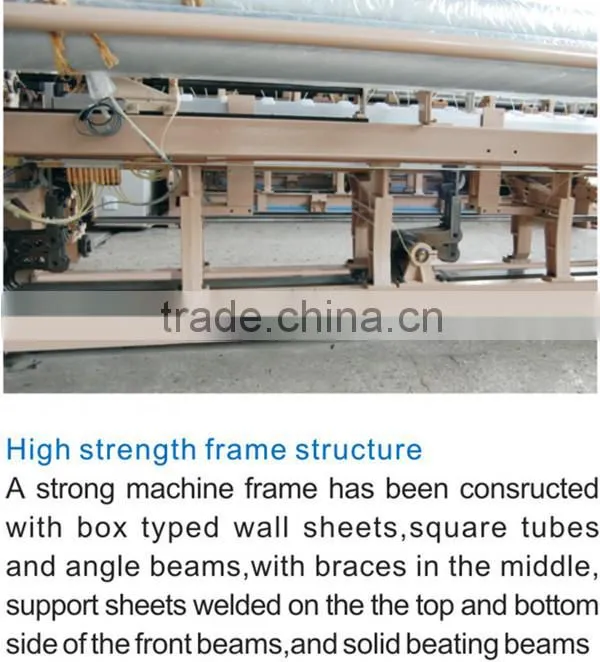

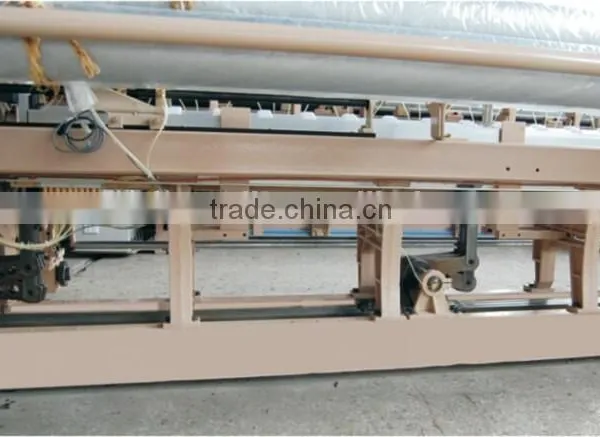

♥ Frame and beam rigidity is enhanced, the machine has good stability, beating -up mechanism further optimization.
♥ Structure more reasonable, can use four or six Linkage Beaing-up connecting rod.
The six connecting rod beating-up can prolong thetime for opening of warp and weft, more suitable for
wide loom weaving fabri, broaden the scope of weaving loom.
♥ The opening mechanism of this tyoe of crank optional: opening,cam,electronic dobby, jacquard,
With electronic let-off and take-up, variable density of weft knitting; waro stop, double weft
electronic length measuring, electronic weft storage, selvage yarn breaking detection,
edge detection by catching weft yarn, electronic control make the operation more humane.

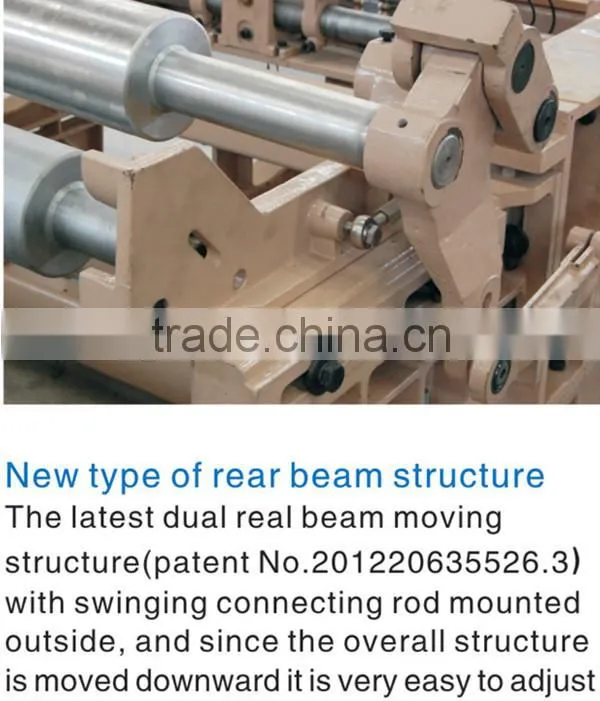

♥ Its structure is reasonable: the further optimization of beam structure change the warp tension sensing more sensitive.
♥ After the tension roller bracket is installed in the outside of the frame, which is convenient for installation and repair.
♥ Can set all kinds of weaving parameters.
Main specifications of this air jet loom
| Rate | up to 1235m/min, depending on fabric types |
| Reed space | 150, 170, 190, 230, 280, 340cm |
| Weft |
Short fiber-7 to 60 tex ( 80 to 10 Ne, need additional device if below 10Ne) Long fiber-5 to 44 tex (40 to 400den) |
| The main transmission | AC starting torque motor direct starting, slow forward and reverse running |
| beating-up | bilateral four connecting rod, the six connecting rod beating up |
| weft stop | double weft detection |
| Shedding | crank, cam, electronic dobby, jacquard |
| take up | electronical |
| Let -off | electronic let-of |
| weft supply | single colr, two color, four- color mixed free weft |
| Stops | 6 lines of electronic stopping device |
| Sevage | leno (rough and plain) |
| Electronic control | using programmable computer controller as the core |
| Lubrication | the big gear, let-off, take- up gear box with the oil bath type lubrication, the other by forced centralized oil supply mode |

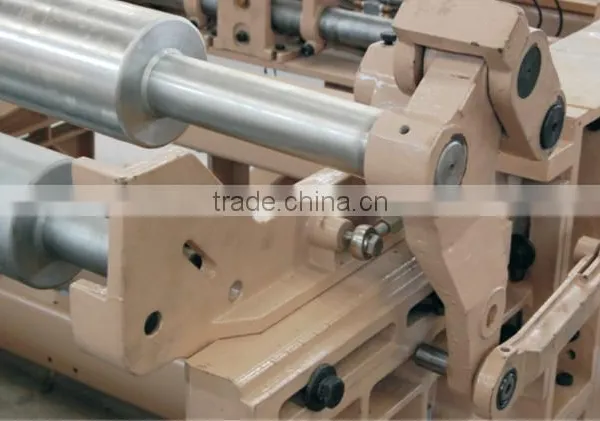

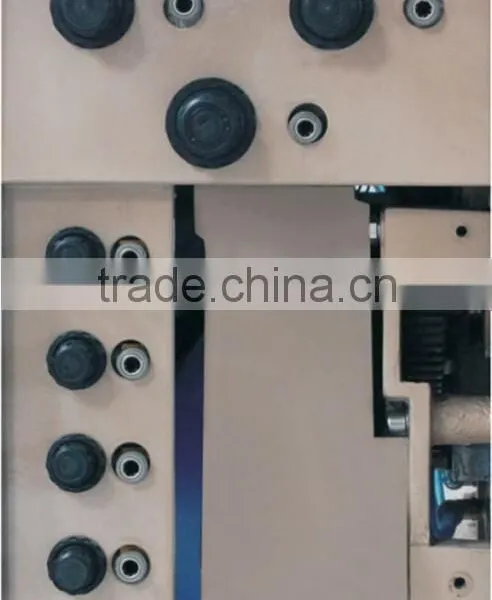

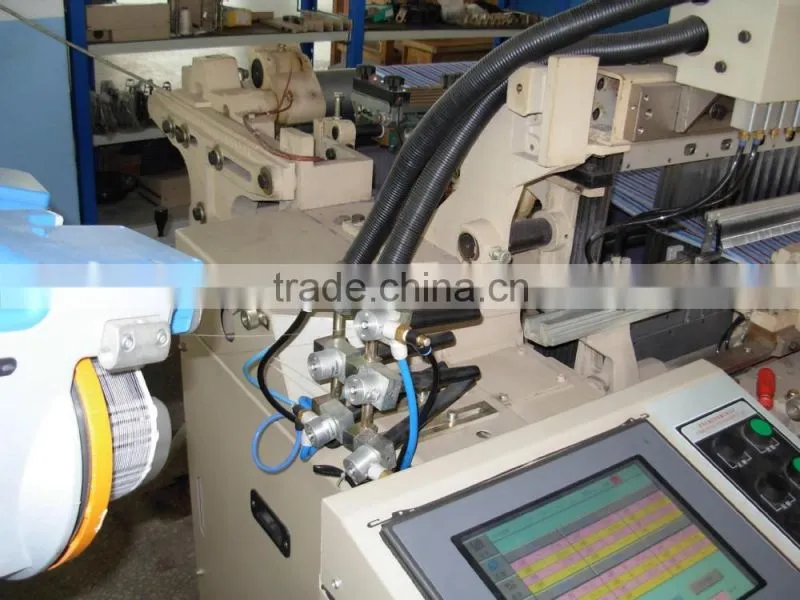

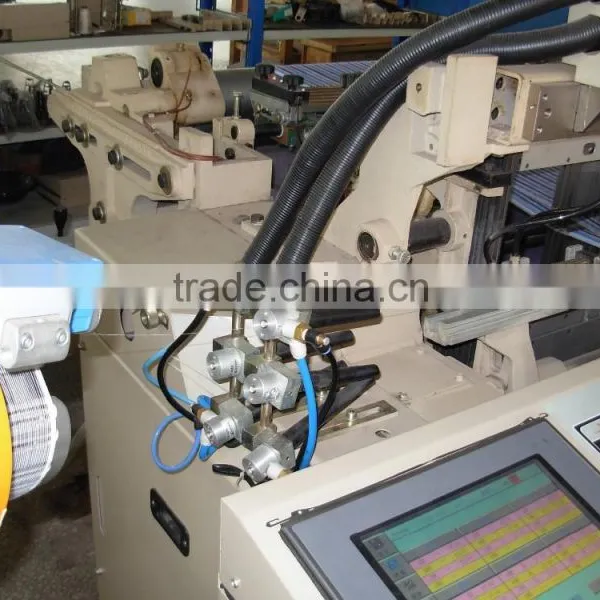

picture of this air jet loom

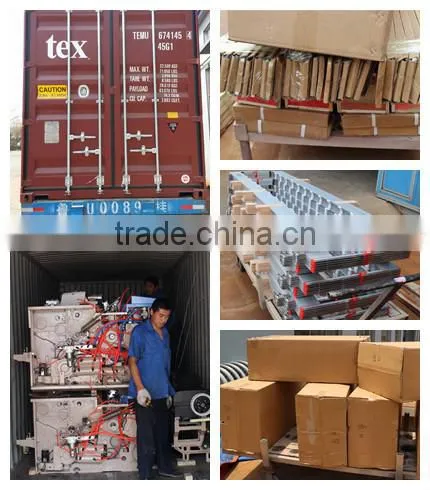

Packaging and shipping
Exhibition --
welcome to make inquiry and look forward to meeting you at Fairs coming
Customers visit us in factory
Our services
Try to make an inquiry then you will get response within 48 hours,
with the support from our experienced design and technique team,
we sales team always get you best solution with our great enthusiasm.
Company information
Shandong Tongda Textile Machinery Group
were established in 1952, It has five branch companies now.
It has been specializing in designing, manufacturing and marketing of a full range of textile machinery--
Spinning system includes blow room, cotton carding machine, draw frame, roving frame, rotor/ring spinning machine etc.
Weaving machine for all kinds of fabric, including Water Jet Loom, Air Jet Loom and Rapier Loom etc.
Nonwoven systems includes Bale Opener, Blending Hoppers, Vibrating Feeder, Carding Machine, Cross Lapper, Needle Loom, Fabric Calendar, Thermal Bonded Oven, etc.
As for the details you can reference https://img13.fr-trading.com/
Our group has passed ISO9001,ISO14001,ISO13485.
The products must meet the technical standards of 3C and CE.
FAQ
1. Packaging Specification
Export and Standard.
2. Quality Guarantee Terms
Quality guarantee term is for one year.
Malfunctions which are caused by machineself will be our manufacturer's responsibility.
Other malfunctions which are caused by operation mistakes, man-made problems, etc will be the
responsibility of clients-self.
3. About MOQ(Minimum Order Quantity)
1 set or 2 et is welcome, also the agent in overseas will be highly appreciated !
The best quality with best price,to achieve the win-win cooperation!
4. About Visiting Our Company
Our factory and headquarter in Weifang city in Shandong Province, welcome to visit us to examine the
quality and negotiate our business!
