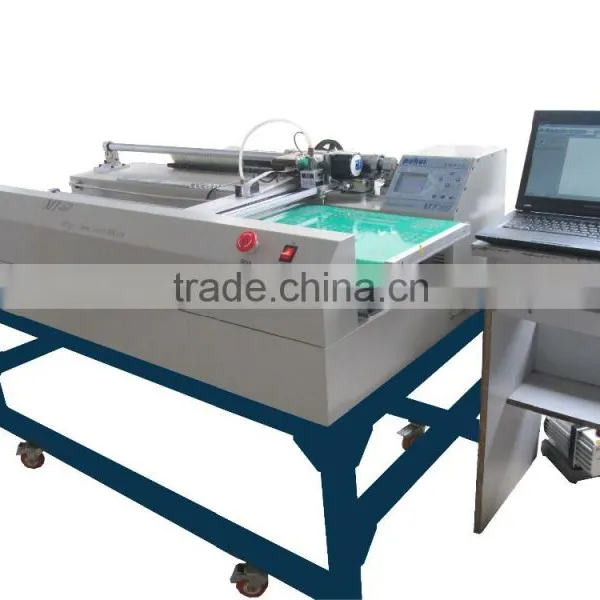

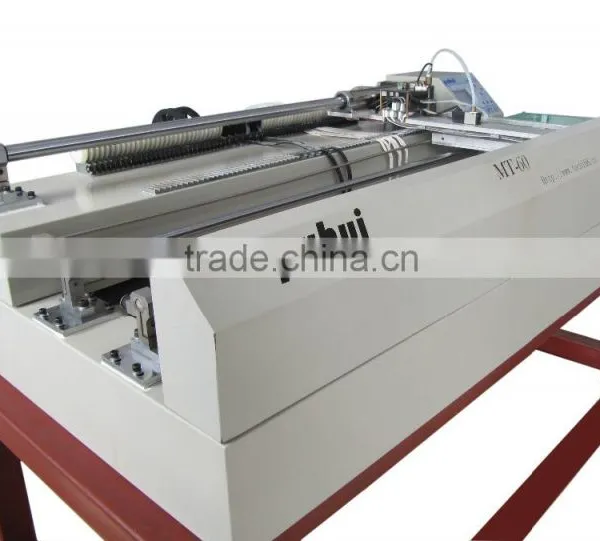

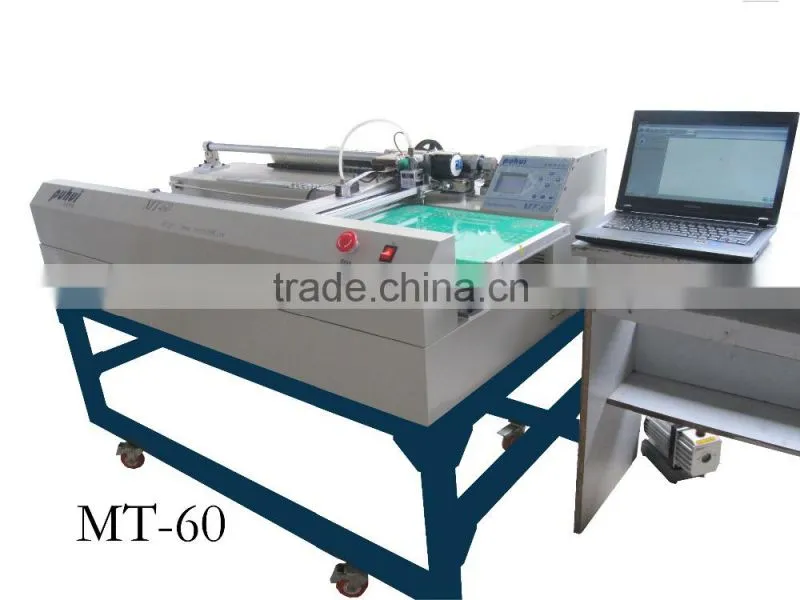

automatic SMT mounter for all kinds of LED chips,smt pick and place machine,,PUHUI MT60 chip mounter

Item

Specification

Name

Multi-axis automatic placement machine

Model

MT-60

Placement head quantity

1

Speed

<6200CPH

Positioning accuracy

0.025mm

Feeders number

56(8mm=50,12mm=4,16mm=2)

Applicable Components

0603-1206,diode, triode, capacitance, resistance, chip, etc

Feeders

8mm=50,12mm=4,16mm=2

Offline store the number of files

20

Applicable PCB

300mm×400mm

Power supply

220V,50/60Hz,350W

Vacuum pump

0~30Kpa(Low vacuum),20L/min

Operating system

Windows XP/ Win 7/ Win8

External Dimension

1566mm×884mm×367mm

Weight

110Kg

Fault detection

Leak detection,Congestion detection,Pressure detection
