Help CenterEXLAS 1613 CO2 Laser Cutter
Related Products
Specifications
EXLAS 1613 CO2 LASER CUTTER1.suitable for non-metalic materials
2.Water cooling
3.DSP control system
4.1 year warranty
Machine Description |

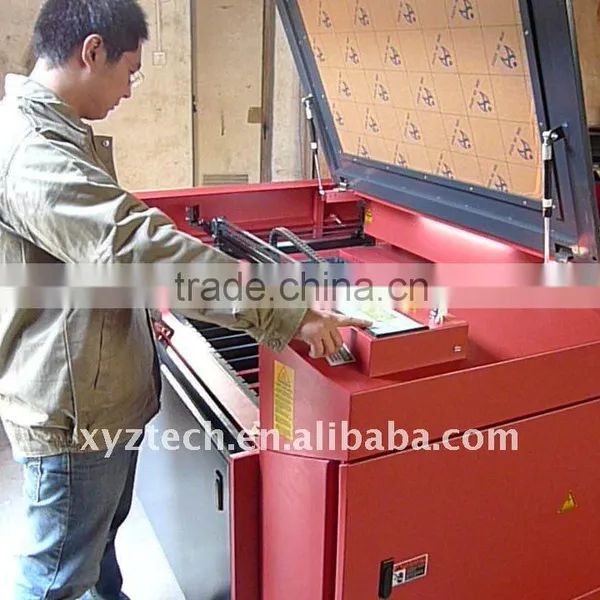

EXLAS-1613 Laser Engraving and Cutting Machine |
Machine Performance: | |
Laser-type |
Hermetic and detached CO2 laser tube |
Laser-power |
150W Reci laser tube with 10,000 lifespan(100W or 180W for option) |
Cooling Mode |
Circulating-water-cooling |
Power Adjustment |
0-100% controlling, no segment and adjusting by software |
Machine Control and Drive |
Speedy DSP controlling, stepper motor |
Max Engraving Speed |
48000mm/min |
Max Cutting Speed |
500mm/min(when cutting 10mm thick of acrylic) |
Repeating Location |
0.01mm |
Minimum Character |
Chinese character 1.5mm, crisscross-row 1mm |
Max Power |
1800W |
Adjustable Up-down Distance of Laser Head |
40mm |
Working Travel Area |
1600x1300mm, 1650mm width with infinity material-feeding |
Table Area |
1650x1350mm |
Up-down Range of Working Table |
Mechanical 260mm |
Working Voltage |
AC220V 50Hz |
Working Environment |
Temperature: 0-45oC, Humidity: 5%-95%, and congeal-water removed |
Controlling Software Language |
English, Simplified Chinese, Traditional Chinese and procuring of multi-languages |
Dictate Format |
*.plt,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*las, Support AutoCAD,CoreDraw direct outputting |
Body Dimension (LxWxH) |
2200x1680x1300mm |
Packaging Dimension (LxWxH) |
2320x1900x1450mm |
Packaging |
Plywood Case |
Gross Weight |
564kg |
Machine Color |
Customizable |
Delivery Time |
15 days |
Payment |
T/T |
Optional Equipment |
Rotary attachment |
Motorized up-down table |
|
Water-cooling unit |
|
Red-light position |
|
Vacuum table |
|
DSP Off-line operation with usb flash |
|
2. Advantages of machine with ballscrews
1) Laser machine with ballscrews are more stable than ordinary machine with belts
2) The cutting edges are more smooth and transparent
