Specifications
XYZ-YAG500W-1325 metal cutter1.High precision/Low use cost
2.For carbon steel/stainless steel/aluminum
3.0.1-8mm cutting
Main Features
1. High precision: a precise cutting for various precision parts, arts and crafts.
2. Fast speed: 100 times higher than linear cutting
3. Small heat affected zone, good dimension stability. Flat and handsome laser-slotted, without later process
4. High performance/price ratio: the price is only 1/8 of the similar CO2 laser cutting machine and 2/5 of the equivalent NC Punch
5. Low use cost: only USD2 per hour which is 1/8-1/10 of the similar CO2 laser cutting machine (USD22-USD35 per hour)
6. Low follow-up maintenance cost: only 1/10-1/15 of the similar CO2 laser cutting machine and 1/3-1/4 the equivalent NC Punch
7. Steady performance: as a mature laser apparatus, the YAG laser cutting machine is suitable for most metal manufacturing and processing industry
8. Steel plate cutting thickness: 0.1mm-8mm
Application:

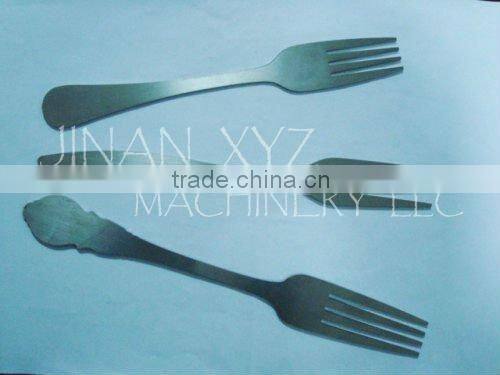

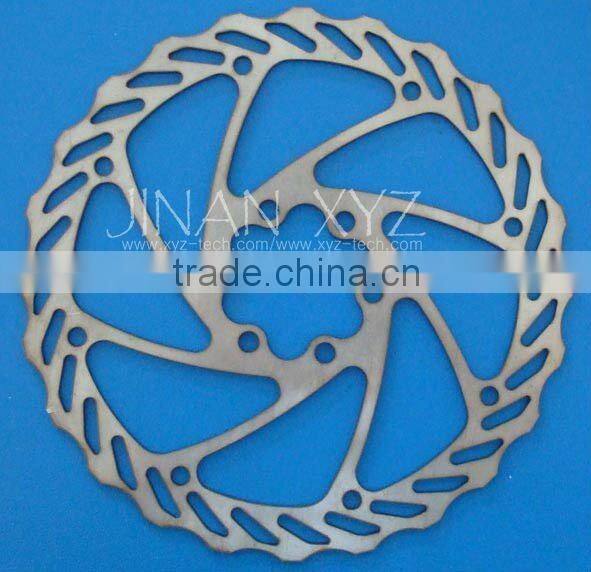

YAG laser cutting machine has been widely used in different kinds of manufacturing and processing lines: metal billboard, metal advertising letter, sheet metal structure, high-low voltage electric cabinet, textile machinery, kitchenware, metal artwork, metal parts, spectacle frame, etc, which have brought customers a high ratio of interest.
Applicable materials:
Stainless steel, carbon steel, alloy steel, spring steel, copper sheet, aluminum Sheet, gold, silver,
titanium sheet and pipe.
No |
Items |
Parameters |
1 |
Working area |
1300×2500 mm |
2 |
Laser wave length |
1064 nm |
3 |
Laser pulse frequency |
0.1-500 Hz |
4 |
Width of pulse |
0.2- 20 ms |
5 |
Working current |
100-400 A |
6 |
Laser rated power |
200-500 W |
7 |
Laser power source |
18 kw |
8 |
Cooling Chiller |
5 kw |
9 |
Z axis route |
50 mm |
10 |
X,Y located precision |
+/-0.05 mm/m |
11 |
X,Y repeated located precision |
+/-0.05 mm/m |
12 |
X,Y Max moving speed |
16 m/min |
13 |
X,Y Max cutting speed |
4 m/min |
17 |
Min line width |
0.2 mm |
18 |
Located apparatus |
Red light direction |
16 |
Way of air protection |
Coaxial |
17 |
Control system |
From Leetro |
18 |
Suitable file format |
dxf,ai,plt |
19 |
Driving way |
Servo motor |
20 |
Continuous working time |
24 H |
21 |
Max cutting thickness(Carbon steel) |
10 mm |
22 |
Applied material |
Stainless steel, carbon steel, copper, aluminum sheet and so on |
23 |
General power |
12-20 KW |
24 |
Electrical source voltage |
380V±10%/50Hz/100A |
25 |
Spare parts |
Xe lamp, water, auxiliary gas(N2, O2) |
26 |
Grade of laser |
Class IV |
