Specifications
1.Qualified material2.Flexible design
3.Fast installation
4.Reuse for numerous times
5.Convenient package for shipping

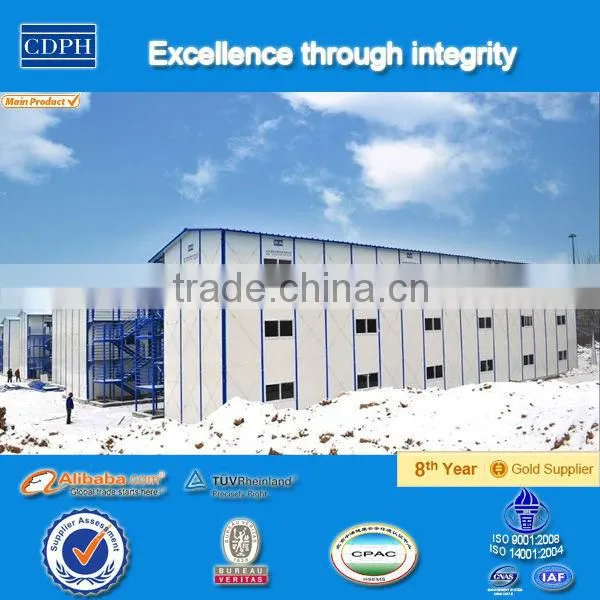

Mobile house (K type) is a standard house model which can be designed as single storey or multistory. The inside layout can be designed as per customers’ requirement. When delivery, it is knock-down to save space. Based on bolts connection without welding work, it could be assembled and disassembled easily and four workers can finish 100m2 in 8 hours according to instruction and CD.
The detailed information as follows:
No |
Sort |
Name |
Specification |
1 |
Standard |
Length |
NM+160(N=4,5,6... M is modular, 1M=1820mm) |
2 |
Width |
NM+160(N=3,4,5... M is modular, 1M=1820mm) |
|
3 |
Wall Height |
2865mm/3815mm/4765mm |
|
4 |
Floor beam |
C style steel, Q235, painted structure |
|
5 |
Column |
Double C style steel, Q235, painted structure |
|
6 |
Roof beam |
Double slope truss, sealed by the C type steel |
|
7 |
Roof purlin |
C style steel, Q235, painted structure |
|
8 |
Inclined brace |
round steel, material: Q235. Galvanized and Painted |
|
9 |
Wallboard |
50mm EPS sandwich panel, 0.3mm color steel sheet and 12kg/m3 polystyrene foam density inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.663w/m².k. |
|
10 |
Roof board |
50mm EPS sandwich panel, 0.3mm color steel sheet and 12kg/m3 polystyrene foam density inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.663w/m².k. |
|
11 |
Door |
SIP with steel frame, single door with dimensions of 955*2024mm, furnished with a cylinder lock with 3keys. Doorframe is made of 1.5mm steel, 50mm thick EPS insulation foam. |
|
12 |
Window |
PVC , white color, with dimensions of 1750*950mm, glazed with glass in a thickness of 5mm, two bay sliding, supplied with fly screen. |
|
13 |
Option |
Ceiling |
Ceiling of mineral wool acoustic panel, or Ceiling of aluminium panel |
14 |
Elevated floor |
Steel structure with 14mm plywood |
|
15 |
Decorative floor |
PVC, laminated or ceramic tile |
|
16 |
Drainage system |
Provided plan, design and construction |
|
17 |
Electric system |
Provided plan, design and construction |
|
18 |
Structure |
Bearing load |
50kg/m2 |
19 |
Wind pressure: |
0.5KN/M2 |
|
20 |
Fire proof |
B2 grade |
|
21 |
Resistant temperature |
-20ºC to 50ºC. |
|
19 |
The resistant earthquake grade |
7 fission activate |
