Specifications
1.Qualified material2.Flexible design
3.Fast installation
4.Reuse for numerous times
5.Convenient package for shipping

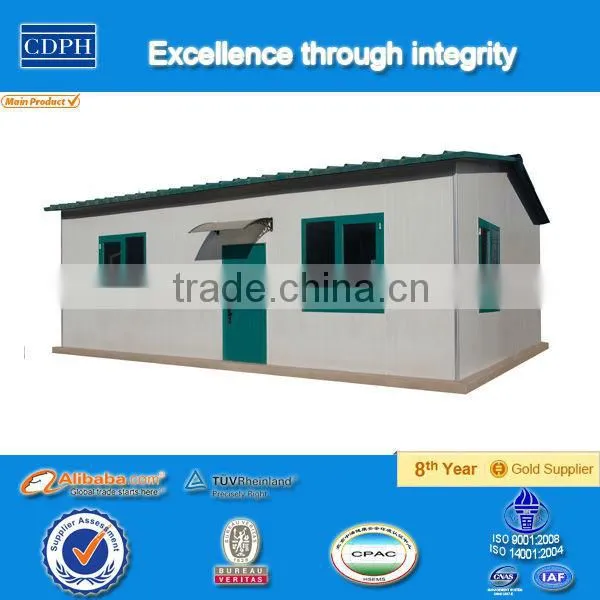

Prefabricated house(ZA type)is a flexible modular house. The size and layout can be designed as per customers’ requirement and local climate. When delivery, it is knock-down to save space. Based on bolts connection without welding work, it could be assembled and disassembled easily and six common workers can finish 50m2 in 8 hours according to instruction and CD.
The detailed information as follows:
No. |
Sort |
Name |
Specification |
1 |
Specification |
length |
6000mmm |
2 |
Width |
2900mm |
|
3 |
Wall height |
2800mm |
|
4 |
Clear height |
2800mm |
|
5 |
Roof slope |
11° |
|
6 |
Standard accessory |
Wall board |
75mm thickness EPS panel,0.5mm steel sheet, 13kg/m3 polystyrene foam density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.38w/.k. |
7 |
Roof board |
50mm thickness EPS corrugated panel, 0.4mm steel sheet,13kg/m3 polystyrene foam density. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.58w/·k. |
|
8 |
Door(D-1/2/3/4) |
SIP single door with dimension of 750*2000mm, furnished with a cylinder lock with 3keys. Doorframe is made of aluminum, 50mm thick EPS insulation foam. |
|
9 |
Window(W-1) |
PVC, white color, with dimension of 940*1000mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen. |
|
|
Window(W-2) |
PVC, white color, with dimension of 940*500mm, glazed with glass in a thickness of 5mm, two bay fixed, and two bay sliding, supplied with fly screen. |
|
10 |
Base beam |
H style steel Q345, galvanized |
|
11 |
Base purline |
C style steel, Q235, galvanized |
|
12 |
Base support |
Square steel tube Q235, galvanized |
|
13 |
Base lifting part |
Square steel tube, Q235, galvanized |
|
|
Base channel |
Press forming steel plate. Q235, galvanized |
|
|
Roof beam |
C style steel,Q235, painted |
|
|
Base panel |
Plywood with 14mm thickness in room and bamboo panel with 14mm thickness in bath and kitchen |
|
|
Decoration and connection |
Color steel sheet, 0.35mm thick |
|
20 |
Option |
Decorative floor |
PVC or laminated floor in room and aluminium panel in bath and kitchen |
21 |
Drainage system |
Provided plan, design and construction |
|
22 |
Electric system |
Provided plan, design and construction |
|
25 |
Technical parameter |
Bearing load |
30kg/m2 |
27 |
Wind pressure: |
0.45KN/M2 |
|
28 |
Fire proof |
B2 grade |
|
29 |
Resistant temperature |
-20 to 50 |
