Specifications
CNC Plasma cutter XYZ 13251.Dimensions 1300x2500MM
2.Weigt 1500KG
3.cut steel,iron,aluminium,cooper

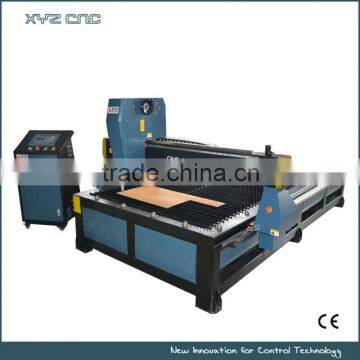

Copper/iron/aluminum/steel CNC Plasma Cutter XYZ 1325
Machine features

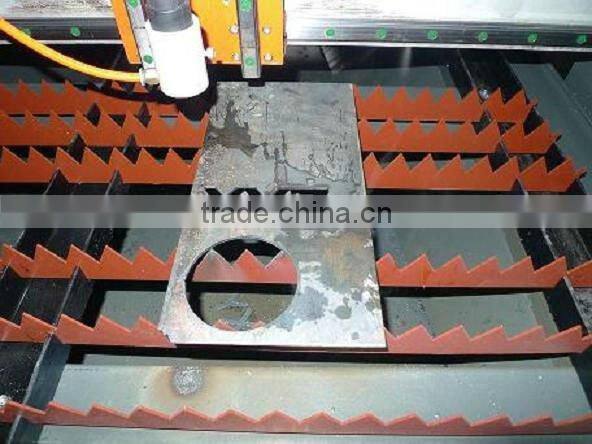

1. Plasma cutting machine can cut any conductive metal in high efficiency.
2. It is applicable in automobile, ship, etc.
1 advanced DSP control system, work without computer, design friendly.
2 integral structures ensure the stability of the machine running speed up to 22m/min, cutting speed up to 15m/min.
3 superior quality plasma power, Japanese THK liner track, ensure work piece cutting vertical in high efficiency.
4 can cut aluminum, steel and any other conductive metal in high efficiency.
5 applicable in industrial areas as automobile making, ship production, accessories of electric appliances, any various covers of mechanical and electric production and plank materials Processing.
6 with original software
Standard model
Machine Model |
Working area |
Plasma power supply |
XYZ 1325 |
1300x2500mm |
China domestic or US imported |
XYZ 1530 |
1500x3000mm |
|
XYZ 2030 |
2000x3000mm |
Technical parameter
Working size |
1300x2500 |
Motion speed |
20000-25000mm/min |
Processing speed |
200-20000mm/min |
Dictate format |
HPGL, G CODE |
Motor |
Stepper motor |
Angle cut |
1.8 degree |
Holding torque |
2.35 n.m/24kg.cm |

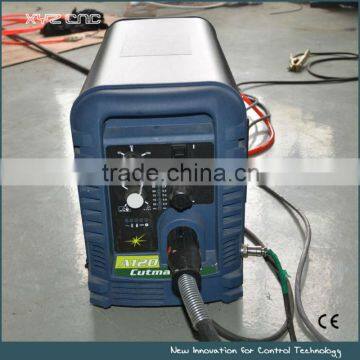

Plasma generator power supply |
380V 50/60Hz |
Machine body power supply |
220V 50/60Hz |
X,Y drive system |
Rack and pinion drive |

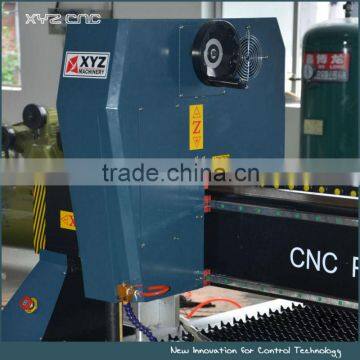

Z axis |
Screw drive Pitch=5mm |
Control system |
DSP/ Start System |
Software |
English Artgrave Software |
Plasma generate |
Made in China(not fixed) |
Optional |
US Hypertormance(better effect) |
Applicable Industries
CNC plasma cutting machine is automatic and high precise cutting equipment, it’s applying to various carbon steel, stainless steel and non-ferrous metal sheet material. Apply to the board gold broadly produce the cutting and the metal character of the advertisement industry or the metal craft article under the manufacturer.
