Specifications
Polystyrene mould CNC Router XYZ-25401.Heavy duty structure
2.SYNTEC control
3.Yaskawa servo
4.Helical rack transmission

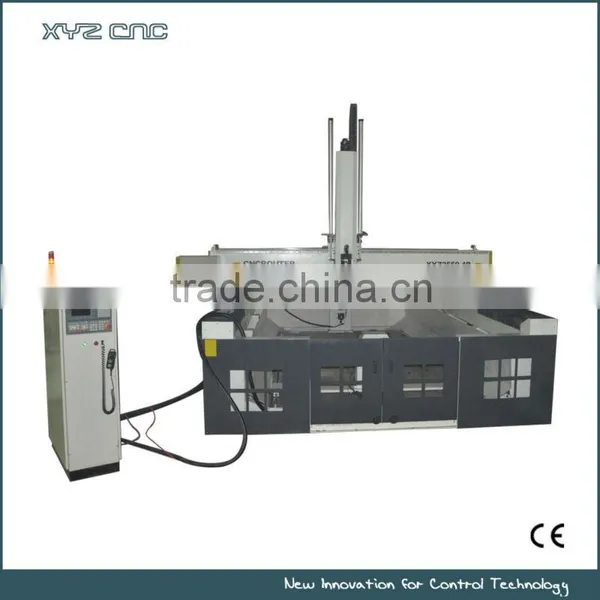

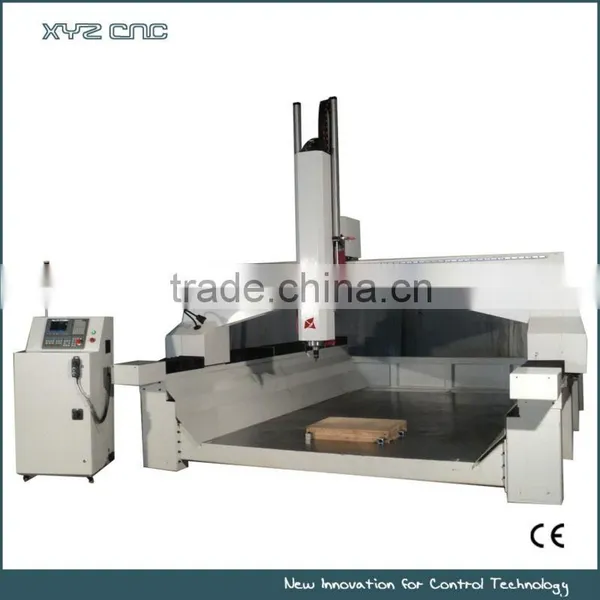

CNC Router XYZ-2540 Polystyrene Processing Center (Styrofoam-Type)

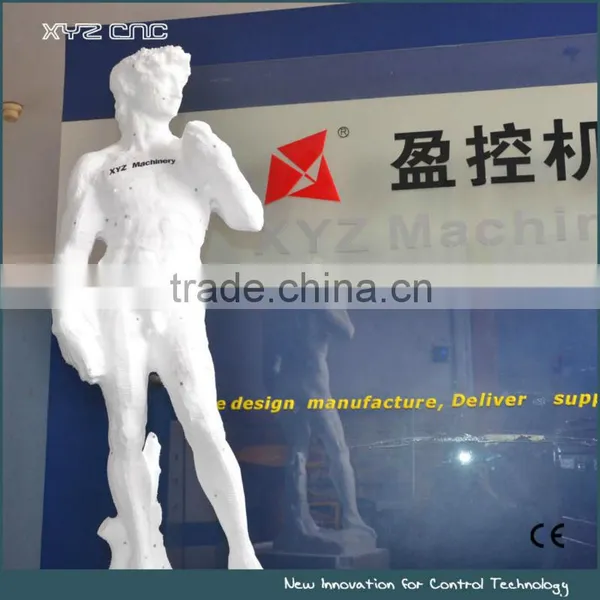

Polystyrene Processing Center, both Heavy and light duty for client to choose, thicker welded tubular steel frame and high Z travel can be 1000mm. Especially for large-scale sculpture and non-metallic materials, such as wood, EPS, foam, carbon hybrid materials.…
Standard models of Polystyrene Processing Center
XYZ-2030 |
2000X3000X900mm |
XYZ-2040 |
2000X4000X900mm |
XYZ-2540 |
2500X4000X900mm |
Brief Introduction of Polystyrene Processing Center
1. Heavy duty structure, more than 30mm thick one-piece steel base, 12mm thick welded tubular steel frame. Vibratory Stress Relief (VSR) treatment.
2. Germany Helical rack and pinion Transmission.
3. Taiwan Hiwin four-row imported ball bearing, wide linear lead rail and self-lubricating block for the machine.
4. Original Imported Italian HSD spindle, original bearings.
5. Japanese servo drive system with large power.
6. Taiwan SYNTEC embedded numerical control system based on windows, compatible with mastercam, typ3, ug, artcam, caxa...
7.Taiwan APEX speed reducer or Apacs reducers.
8. Electrical components:
France Schneider AC Contactor,
Japan OMRON Limit Switch.
High soft shielding twisted-pair cable.

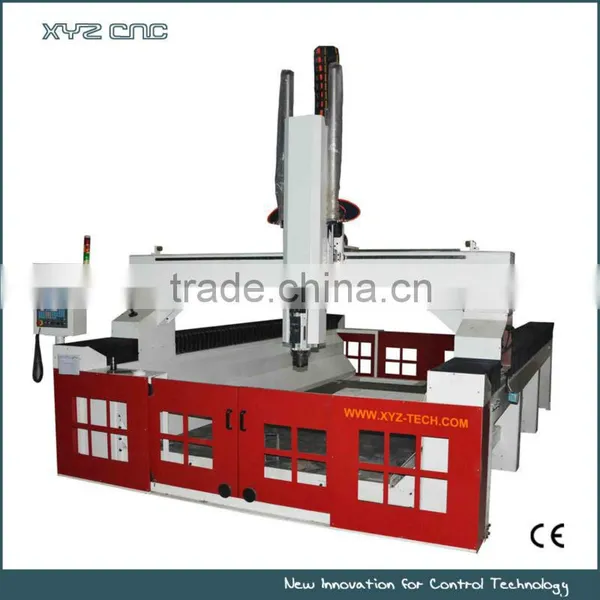

9. Updated machine appearance with the front and back door get a completely surround working area.
Advertising industry
Is suitable to process different various colorful plates and mould, such as: advertisement plates, construction model, foam board, wooden handicraft, display Boards, aluminum product drilling and cutting, furniture decoration and etc.
Woodworking industry
Is suitable to process various cabinet doors, solid wood doors, panel furniture, archaized furniture, it can also be used for engraving and cutting of woody boards in large volume, together with 3D embossment, shadow carving, and so on. Wood, EPS and non-metallic carbon hybrid material.
Parameters
No. |
Description |
XYZ-2540 |
1 |
X, Y, Z Working Area |
2500x4000x900mm |
2 |
Table Size |
3100×4 500mm |
3 |
Machine Bed Structure |
Welded structure (cast iron) |
4 |
Bed type / Work Holding |
Milling steel table (T-slot) |
5 |
X, Y Structure |
Rack gear & Linear guide rail (Taiwan Hiwin) |
6 |
Z Structure |
Linear guide rail (Taiwan Hiwin )& Ball Screw |
7 |
Resolution Working Accuracy |
±0.01/300mm |
8 |
Reposition Accuracy |
±0.01mm |
9 |
Spindle Type |
9.0KW Italian HSD Spindle |
10 |
Spindle Speed |
24000rpm |
11 |
Inverter |
Delta |
12 |
Drive Motors |
Japanese YASKAWA servo system |
13 |
Max. Power (without spindle) |
3.0KW |
14 |
Max. Rapid Travel Rate: |
40000mm/min |
15 |
Max. Working Speed: |
25000mm/min |
16 |
Working Voltage |
AC380V/50/60Hz,3PH (Option: 220V) |
18 |
Operating System |
Taiwan SYNTEC control system |
17 |
Interface |
Ethernet |
19 |
Flash Memory |
256 M(with CF card) |
19 |
Command Language |
G code, *.u00, *.mmg, *.plt/HPGL/NC |
20 |
Software |
Type3 software/ArtCam/UcancameV9 software |
21 |
Working Environment |
Temperature: 0-45oC, Humidity30% - 75% |
22 |
Packing Size |
2300X4800X1900mm (in parts) |
23 |
N.W. |
6800KG |
24 |
G.W. |
7500KG |
