Foam Mould Cnc Router XYZ-T-2040

Foam Mould Cnc Router XYZ-T-2040 thumbnail-1

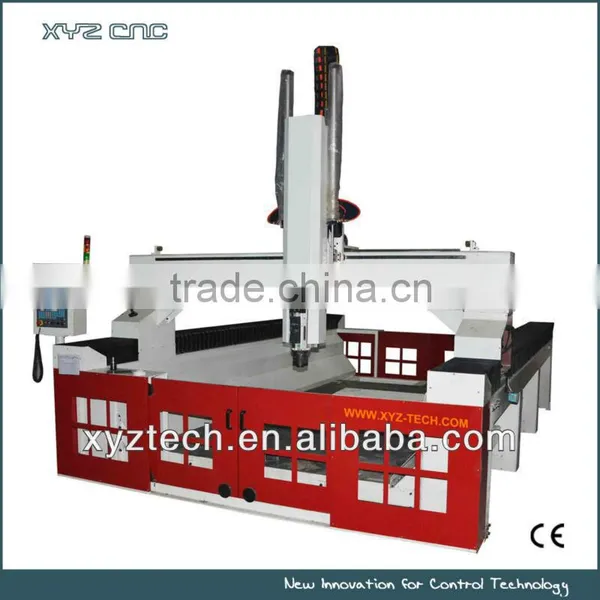

Foam Mould Cnc Router XYZ-T-2040 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
CNC or Not:
CNC
Place of Origin:
Shandong, China
Contact Supplier Request Quote Chat Now
Jinan XYZ Machinery LLC
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
CNC or Not CNC
Place of Origin Shandong, China
Brand Name XYZ
Model Number XYZ-T-2040

Specifications

CE standard
Syntec system made in Taiwan (option: OSAI system made in England)
Yaskawa Servo system made in Japan

                       CNC Router XYZ-T-2040 Polystyrene Processing Center (Styrofoam-Type)

  • OSAI control system from Europe. Intelligent control and processing speed cross-border protection. Intelligent control the processing speed, move speed, tool down speed respectively, greatly raise the quality of processed products and efficiency.
  • The diversified processing speed can be controlled separately. The speed of idle running and roll setting improve the quality of processed products and processing efficiency greatly.
  • Use top-quality four-row imported ball bearing, wide linear lead rail and self-lubricating block for the machine. It can balance the force in all directions to ensure the machine’s accuracy and strength when engraving.
  • The route of Z axis can be heightened to 700mm, so it is suitable for processing large-scale and super-thick material.
  • The design documents of intelligent processing cross-border protection can prevent the excessive process caused by mechanical impact.

Machine Application:



Wood, EPS and non-metallic carbon hybrid materials.

Die and mold industries:
sculpture various large non-metallic mold can be particularly suitable for automotive foam mold, wooden ship model, wooden model aviation, trains and other wooden mold.
Musical instrument industry: Can carve three dimension musical instrument,contour cutting;

Functional Characteristics

Adopt Europe OSAI numerical control system, high machining accuracy and high speed.



Performance Parameter:



No.

Description

Parameter

1

X,Y,Z Working Area:

2000x4000x900mm

2

Table Size:

2600×4500mm

3

X,Y,Z Traveling Positioning Accuracy

±0.01/300mm

4

X,Y,Z repositioning Accuracy:

±0.01mm

5

Table Surface:

Milling steel table (T-slot)

6

Frame:

 Welded structure (cast iron)

7

X, Y Structure:

Rack and Pinion Drive,

Taiwan Hiwin Rail Linear Bearings

8

Z Structure:

Hiwin Rail Linear Bearings ,Ball Screw

9

Max. Power Consumption:

(Without spindle)  6.5KW

10

Max. Rapid Travel Rate:

40000mm/min

11

Max. Working Speed:

25000mm/min

12

Spindle Power:

9.0KW Italian HSD Spindle

13

Spindle Speed:

0-24000RPM

14

Drive Motors:

YASKAWA servo system  (Japan)

15

Working Voltage:

 AC380V/50/60Hz,3PH (Option: 220V))

16

Command Language:

G code

17

Operating System:

SYNTEC control system(Taiwan)

(Option: OSAI system made in UK)

18

Computer Interface:

Ethernet

19

Flash Memory:

256 M(with CF card)

20

Collet:

ER32 (BT30)

21

X,Y Resolution

 <0.01mm

22

Software Compatibility:

Type3, UcancameV9, ArtCAM software

23

Running Environment  Temperature:

0degree - 45 degree

24

Relative Humidity:

30% - 75%

25

Packing Size:

2300X4800X1900mm (in parts)

26

N.W.:

6800KG

27

G.W.:

7500KG

28

Guarantee

One year from the date of commission

29

Optional Parts

Air cooling spindle

Water cooling spindle

Dust collector

Rotary system

Mist-cooling system

Taiwan YASKAWA  servo motors/

Taiwan DELTA  servo motors
