Help Center3200W 450MM Z Axis Wood Door Engraving Machine CNC Router 1325 With 4 Axis DSP Offline Control Dust Collector 1300*2500MM
Related Products
-
3.2Kw 450MM Feeding Height DSP Offline Control Wood CNC Router Machine 1325 With Dust Collector Rotary Axis 1300*2500US$ 4,300 - 6,800MOQ: 1 Set -
Jinan Zhuoke CNC Engraving Machine For Wood Copper Aluminum With Stepper Motor Wireless Handwheel ZKM-1530 1500*3000MMUS$ 3,000 - 5,500MOQ: 1 Set
-
China Cheap 1530 Wood Copper Aluminum CNC Router Machine With Stepper Motor 5.5KW Water Cooling Spindle 200MM Z-AxisUS$ 3,000 - 5,500MOQ: 1 Set
-
Color Optional Wood CNC Router Machine ZKM-1530 1500*3000MM With Water Tank For Aluminum Copper Of Mach3 ControlUS$ 3,000 - 5,500MOQ: 1 Set
-
High Accuracy CNC Router Machine ZKM-1530 For Wood Acrylic Aluminum With 5.5KW Big Power Spindle Of Mach3 ControllerUS$ 3,000 - 5,500MOQ: 1 Set
3.2Kw 450MM Feeding Height DSP Offline Control Wood CNC Router Machine 1325 With Dust Collector Rotary Axis 1300*2500
Items | Basic configuration | Optional item |
Certificate | CE |
|
XY-axis working area | 1300*2500mm |
|
Material | Square steel tube machine bed,Cast iron gantry |
|
Moving way | Gantry moving |
|
Working table | Aircraft aluminum with T slot | Vacuum table |
Guide way | XYZ-axis linear square guide rail |
|
Driving mode | XY rack gear, Z ballscrew |
|
Z-axis working area | 500mm | Lower or higher as you need |
Max traveling speed | 8000mm/min |
|
Engraving speed | 6000mm/min |
|
Mechanical precision | 0.05mm |
|
Driving method | Stepper motor(XYZ:86BYGH450A) | Bigger power or servo motor |
Spindle cooling | water cooling for spindle |
|
Spindle | 3.2Kw/5.5KW water cooling | 4.5KW or 5.5KW, or air-cooled |
Spindle speed | 0-18000rpm |
|
Collet type | ER25 |
|
Tools diameter | 3.175mm, 4mm, 6mm,8mm,10mm,12.7mm |
|
Control system | PCI NCStudio control system | DSP or MACH3 |
Design software | Artcam |
|
Compatible software | Artcam, Type3, Ucancam, JDPaint, MasterCAM |
|
Command | G code ,U00, mmg nc,etc |
|
Running temperature | 0-45℃ |
|
Relative humidity | 30%-75% |
|
Voltage | AC 380V,50/60Hz, three phase |
|
Auto tool calibration | For Z-axis |
|
Tools | 15pcs for wood/advertising | Other tools as you need |
Accessories | Water pump, tools, PCI card, power line, USB line, brush, spanner, collet, fixtures, user manual. | |
Other optional items | Original NCStudio control system, air cooling spindle, auto oiling system, computer cabinet, rotary axis, wireless handwheel | |
Application industry

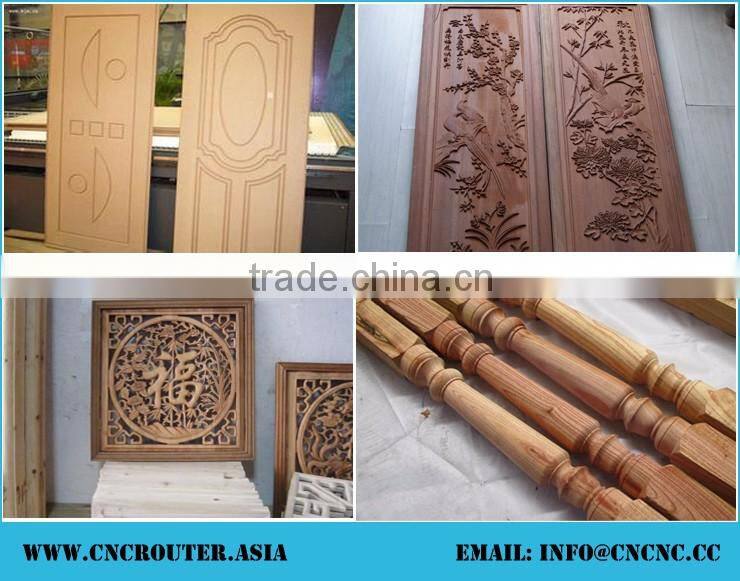

Woodworking industry: cupboard door, craft wooden door, solid wood door, panel engraving and cutting, stereo wave board processing, panel furniture, painting door, paint-free door, screen, craft windows working, furniture milling and engraving, wooden musical instrument 3D engraving
Other industry
Advertising industry: advertising signs, acrylic cutting, logo making, plastic molding, a variety of advertising and decorative products making
Application material
MDF, wood, plywood, solid wood, PVC, acrylic, double-color board, plastic plate, luminous panel, organic glass, aluminum, copper, sliver, gold, iron, stainless steel and other materials.
Contact US:
For more information , please go to our website
I would like to send you more information& working videos, just feel free to contact us! ( Miss. Sunny Wang)
