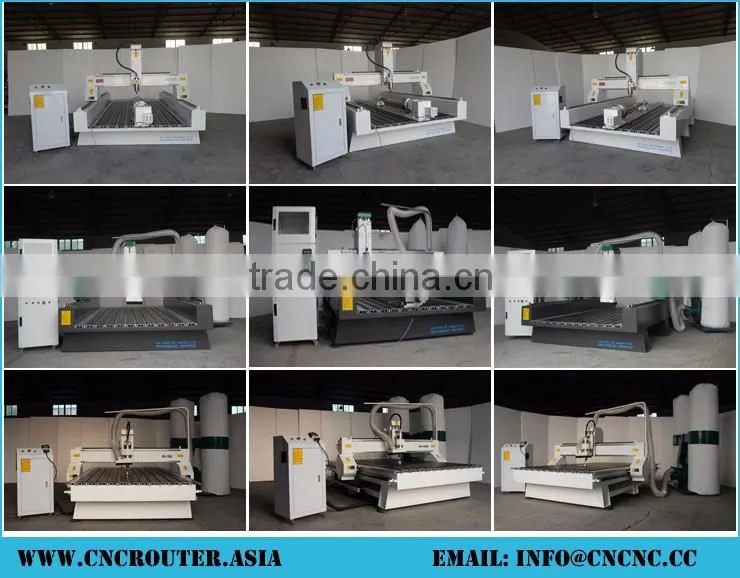

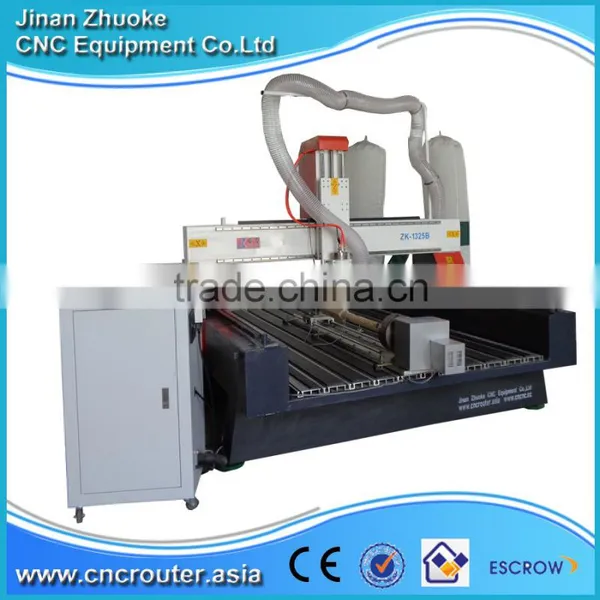

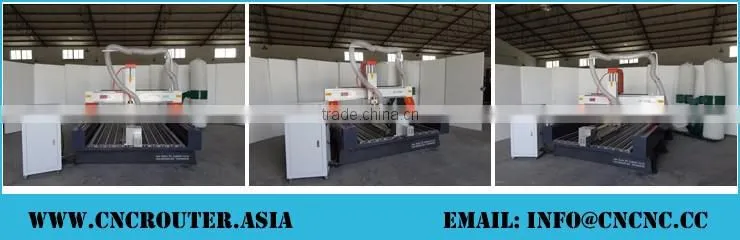

3.2Kw 450MM Feeding Height DSP Offline Control Wood CNC Router Machine 1325 With Dust Collector Rotary Axis 1300*2500
Items |
Basic configuration |
Optional item |
Certificate |
CE |
|
XY-axis working area |
1300*2500mm |
|
Material |
Square steel tube machine bed,Cast iron gantry |
|
Moving way |
Gantry moving |
|
Working table |
Aircraft aluminum with T slot |
Vacuum table |
Guide way |
XYZ-axis linear square guide rail |
|
Driving mode |
XY rack gear, Z ballscrew |
|
Z-axis working area |
500mm |
Lower or higher as you need |
Max traveling speed |
8000mm/min |
|
Engraving speed |
6000mm/min |
|
Mechanical precision |
0.05mm |
|
Driving method |
Stepper motor(XYZ:86BYGH450A) |
Bigger power or servo motor |
Spindle cooling |
water cooling for spindle |
|
Spindle |
3.2Kw/5.5KW water cooling |
4.5KW or 5.5KW, or air-cooled |
Spindle speed |
0-18000rpm |
|
Collet type |
ER25 |
|
Tools diameter |
3.175mm, 4mm, 6mm,8mm,10mm,12.7mm |
|
Control system |
PCI NCStudio control system |
DSP or MACH3 |
Design software |
Artcam |
|
Compatible software |
Artcam, Type3, Ucancam, JDPaint, MasterCAM |
|
Command |
G code ,U00, mmg nc,etc |
|
Running temperature |
0-45℃ |
|
Relative humidity |
30%-75% |
|
Voltage |
AC 380V,50/60Hz, three phase |
|
Auto tool calibration |
For Z-axis |
|
Tools |
15pcs for wood/advertising |
Other tools as you need |
Accessories |
Water pump, tools, PCI card, power line, USB line, brush, spanner, collet, fixtures, user manual. |
|
Other optional items |
Original NCStudio control system, air cooling spindle, auto oiling system, computer cabinet, rotary axis, wireless handwheel |
|
Application industry
Woodworking industry: cupboard door, craft wooden door, solid wood door, panel engraving and cutting, stereo wave board processing, panel furniture, painting door, paint-free door, screen, craft windows working, furniture milling and engraving, wooden musical instrument 3D engraving
Other industry
Advertising industry: advertising signs, acrylic cutting, logo making, plastic molding, a variety of advertising and decorative products making
Application material
MDF, wood, plywood, solid wood, PVC, acrylic, double-color board, plastic plate, luminous panel, organic glass, aluminum, copper, sliver, gold, iron, stainless steel and other materials.
Contact US:
For more information , please go to our website
I would like to send you more information& working videos, just feel free to contact us! ( Miss. Sunny Wang)
