Help CenterFactory Direct Sale Stainless Steel Hydraulic Cylinder Tube
Related Products
-
STKM13C High Precision Seamless Honed Tubes for Hydraulic CylinderUS$ 0.8 - 1.2MOQ: 5 Metric Tons -
Best Quality CDS Hydraulic Cylinder Steel Tube With Competitive PriceUS$ 0.8 - 1.2MOQ: 5 Metric Tons
-
Cost Effective High Polished Honed SRB Tube for Hydraulic CylinderUS$ 0.8 - 1.2MOQ: 5 Metric Tons
-
ASTM 1045 Small Diameter Burnished Hydraulic Cylinder Steel TubeUS$ 0.8 - 1.2MOQ: 5 Metric Tons
-
ASTM A519 Cold Finished Seamless Hydraulic Cylinder Steel PipeUS$ 0.8 - 1.2MOQ: 5 Metric Tons
ABOUT OUR COMPANY I WANT TO SAY :
We are Yantai Xinpeng Steel Pipe Co.,Ltd
♦Professional tube manufacturer which have over 20years experience
♦High reputation in tube world benefit by competitive price, quality and service.
♦Supply all kinds of steel pipes such as:
√ hot rolled/cold drawn seamless steel pipes
√ honed and skived pipes
√ cold drawn welded tubes(DOM tubes)
♦Our Website: https://img13.fr-trading.com
ABOUT OUR PRODUCT
COMMODITY NAME : Factory direct sale stainless steel hydraulic cylinder tube
Standard |
EN ,GB/T , ASTM, JIS, DIN |
Steel Grade |
10#_45#,ST35-ST52,Q345, |
O.D. |
30-250mm |
W.T. |
2-30mm |
Length |
1-6m or according to the customer’s acquirement |
End protection |
plastic caps, or per requirement |
Outside Coating |
black painting, anti-corrosion oil, galvanized or per customer |
Packing |
Bundle with steel strips ,branding parcel ,wooden box outside |
Delivery |
by container |
Certificates |
ISO90012008 |
Production Capacity |
500 tons per month |
Delivery time |
within 25 days or according to the customer’s acquirement |
Qualification |
independent import and export qualifications |
Main market |
Asia, India, Middle East, America, Europe |
ABOUT SOME DIMENSION
40*50 |
90*110 |
140*170 |
190*215 |
40*55 |
95*110 |
145*170 |
190*220 |
50*60 |
95*115 |
150*170 |
190*225 |
50*65 |
100*110 |
150*175 |
200*220 |
55*70 |
100*114 |
150*180 |
200*225 |
60*70 |
100*115 |
155*180 |
200*230 |
60*75 |
100*120 |
160*175 |
200*245 |
60*78 |
100*125 |
160*180 |
200*250 |
63*73 |
105*125 |
160*185 |
220*250 |
63*75 |
110*125 |
160*190 |
220*270 |
63*76 |
110*130 |
160*195 |
225*250 |
63*78 |
115*130 |
165*190 |
240*273 |
65*80 |
115*135 |
165*205 |
250*290 |
70*80 |
120*140 |
170*200 |
250*300 |
70*82 |
125*140 |
180*200 |
260*300 |
70*85 |
125*145 |
180*205 |
280*323 |
70*90 |
125*150 |
180*210 |
280*355 |
75*90 |
130*150 |
180*215 |
300*350 |
80*92 |
130*155 |
180*220 |
200*213 |
80*95 |
130*160 |
185*205 |
200*216 |
80*100 |
135*160 |
185*215 |
250*266 |
85*100 |
140*160 |
185*220 |
|
90*105 |
140*165 |
190*210 |
ABOUT THE TOLERANCE OF DIMENSION
ID size |
ID deviation (mm) |
|||
H7 |
H8 |
H9 |
H10 |
|
30 |
+0.021 0 |
+0.033 0 |
+0.052 0 |
+0.084 0 |
>30~50 |
+0.025 0 |
+0.039 0 |
+0.062 0 |
+0.100 0 |
>50~80 |
+0.030 0 |
+0.046 0 |
+0.074 0 |
+0.120 0 |
>80~120 |
+0.035 0 |
+0.054 0 |
+0.087 0 |
+0.140 0 |
>120~180 |
+0.040 0
|
+0.063 0 |
+0.100 0 |
+0.160 0 |
>180~250 |
+0.046 0 |
+0.072 0 |
+0.115 0 |
+0.185 0 |
>250~315 |
+0.052 0 |
+0.081 0 |
+0.130 0 |
+0.210 0 |
>315~400 |
+0.0527 0 |
+0.089 0 |
+0.140 0 |
|

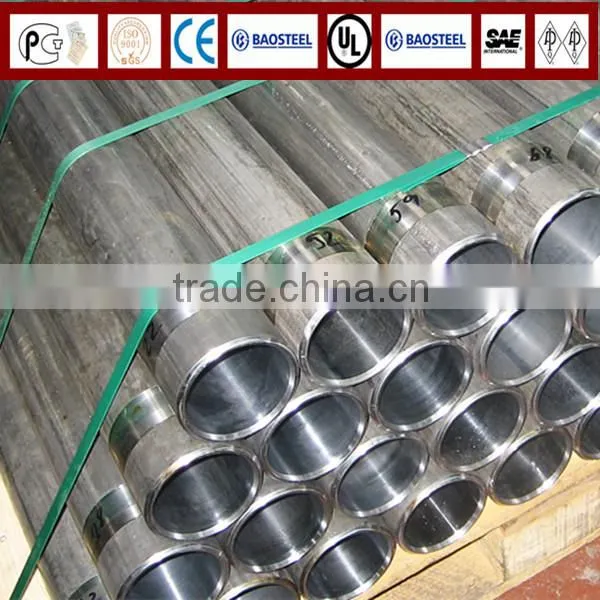

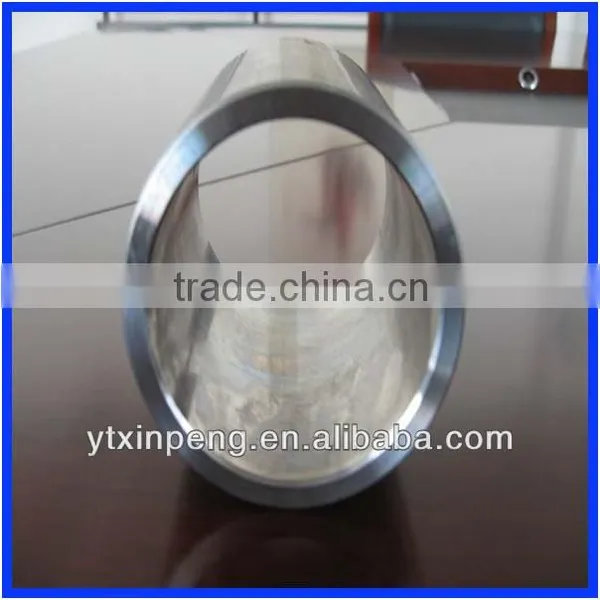

FINSHED PRODUCTS
ABOUT OUR SERVICES
1. Cargo track service during transporting and feedback service after cargo is loaded on board
2. Flexible terms of payment by
3. Big discount for repeat customers
4. Smooth delivering procedure
5. Payment Terms: T/T , L/C And so on.
OUR PACKAGING AND SHIPPING
(1)Delivery time: In 20 days or according to client's requires
(2)Trade terms: EXW/FOB/CIF etc
(3)Payments: T/T or L/C or according to client's requires
(4)Port: Yantai or Qingdao
(5)MOQ: 5 metric tons or at customer's demands
(6)Packing: we usually bundle with steel strips ,branding parcel or wooden box outside ,or according to the customer’s acquirement
OUR CERTIFICATE
OUR PROCESSING
TESTING
1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material |
2.100% Dimension & Visual Examination |
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test |
4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT) |
5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor) |
6.Straightness Test (optional) |
7.Roughness Test (optional) |
8.Intergranular Corrosion Test(optional) |
9.Impact Test (optional) |
10.Grain Size Determinations (optional) |
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION. |
APPLICATION
Application |
Cold drawn or cold rolled precision seamless steel tubes for hydraulic pressure and pneumatic services. |
|
For Auto use,machinery use,oil cylinder tube, motorcycle shock reducer use,auto shock reducer inner cylinder,gas spring use etc. | |
|
Seamless steel pipes for low and medium pressure boiler, high pressure boiler, ship-building,Liquid service, petroleum cracking, chemical fertilizer equipment,Drawing-oil-equipment and structure purposes. |
