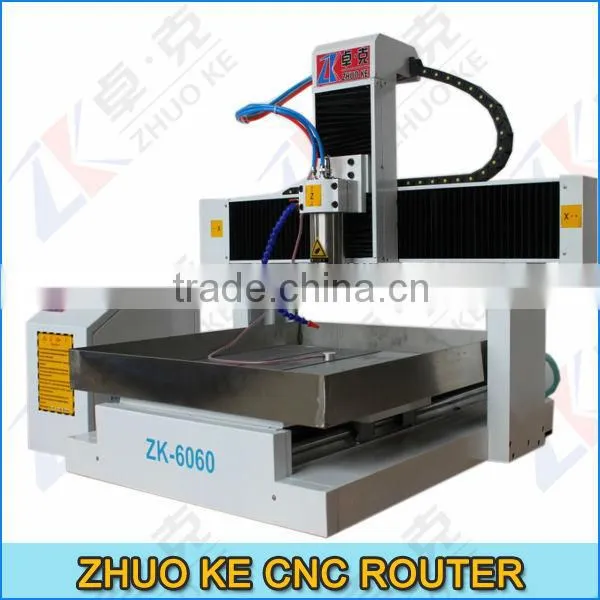

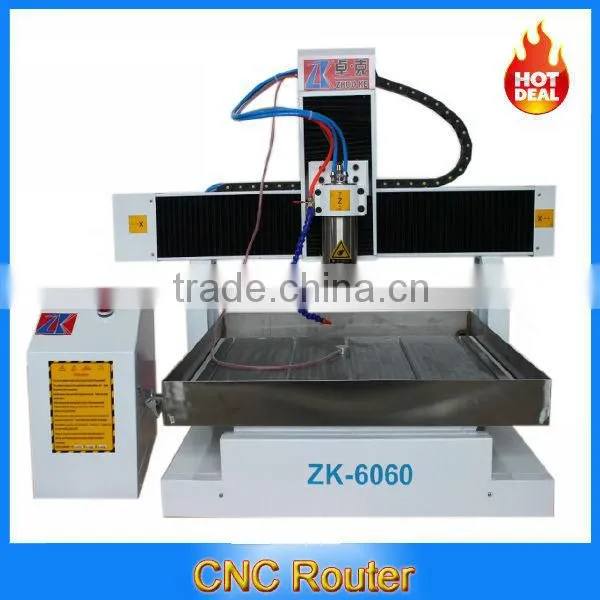

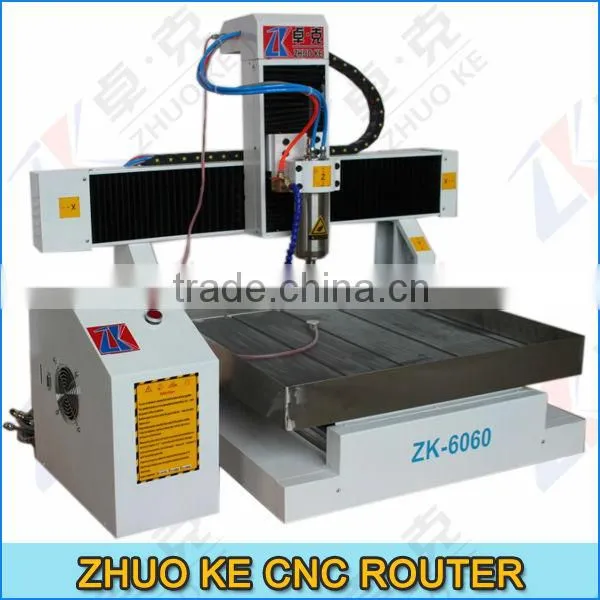

Desktop mini CNC engraving machine for PCB
Applications
The PCB engraving machine is widely used in PCB technology development, LED circuit boards, military and scientific research units, product development, colleges, electronics enthusiasts, a small circuit board proofing and other domestic small batch processing circuit board unit to the line proofing board, PCB board drilling.
The PCB engraving machine can process single-sided, double-sided PCB CCL, aluminum plate, paper board and other rigid PCB board.
Machine features
1.Whole machine is welded with seamless steel structure, cast iron machine bed, the stability is excellent, not easy to be deformed.
2.Mini portable desktop hobby machine type.
3.1.5kw powerful water cooling spindle, low noise, good performanc..
4.water cooling system, ensuring the processing for the metal/stone/glass cooling.
5.Simple operation and installation, when delivery we will provide the videos for training.
6.Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,Artcut engraving software, Coredraw, etc.
Technical Data
Items |
Description |
Optional |
Effective working area |
600(X)mm*600(Y)mm*150(Z)mm |
|
Max. thickness of the materials |
≤150mm(the distance between Z-axis and the bottom of the working station) |
Or higher |
Materials |
cast iron machine bed,cast aluminum gantry | |
Water cooling system |
Stainless steel water slot |
|
Working table |
Aircraft aluminum T slot |
|
Guide rail |
Linear square guide rail
|
Or linear round guide rail |
Transmission |
Ball screw for X Y Z-axis |
|
Driving mode |
Stepper motor |
Or servo motor |
Spindle motor |
1.5kw water cooling |
2.2 kw or air cooling |
Spindle speed |
0-24000rpm/min |
|
Empty traveling speed |
0-8000mm/min |
|
Engraving speed |
0-6000mm/min |
|
Resetting accuracy |
0.05mm |
If you are interested in our product, please contact me when free, we will never let you down!
Contact person: Yvonne Zhu
