pcb board drilling machine ZK-6060
Main features
1. High efficiency: just need a few minutes to make a piece of PCB.
2. High accuracy: the min error of numerical control drill hole less than 1mil (0.025mm).
3. Automatic and convenience: simple software hardware installation,
the manufacturing process by striking the function keys of operation system.
4. Advanced: anti-corrosion PCB making process, the plate making and drill process can be finished in one machine.
Linear round gudie rail
Drive and motor
NCStudio
Artcam software

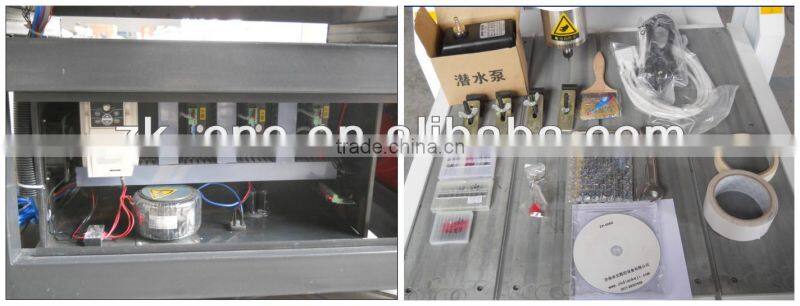

Chassis and Random accessories
Optional accessories

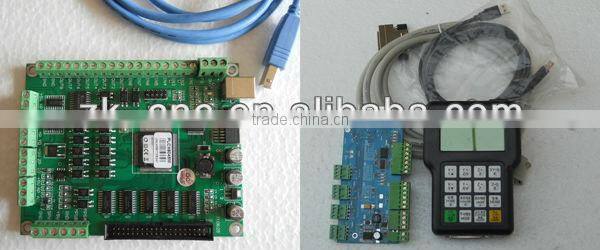

DSP and MACH3

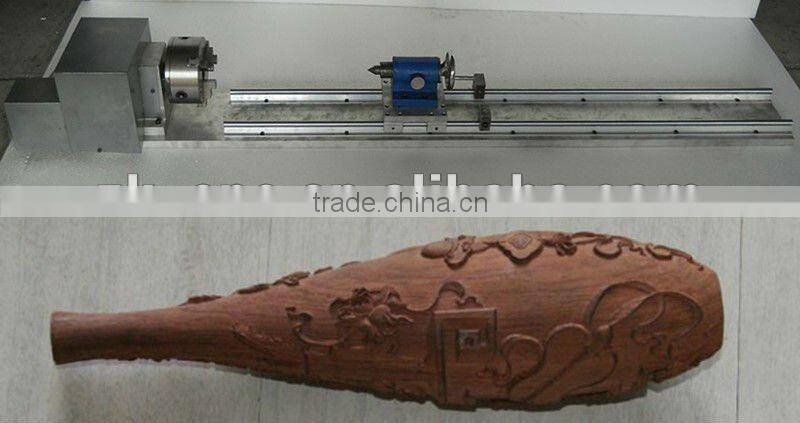

Axis of rotary
Packing
Main technical parameters
1 Function | Parameter |
2 X-Y-Z axis working area | 600×600×100mm |
3 XYZ guide rail | Square linear guide Rail (option: circular guide rail) |
4 X-Y-Z structure | Ball Screw |
5 Table Structure | cast steel |
6 Processing precision | ±0.05mm |
7 Repositioning Precision | ±0.05mm |
8 Table Size | 700×1000 |
9 Max processing speed | 6000mm/min |
10 Spindle power | 1.5kW water-cooling spindle |
11 spindle speed | 0-24000r/min |
12 command language | G code |
13 Collect | 3.175mm, 6mm, 12.7mm |
14 Control System | NCSTUDIOV 5.4.51 |
15 Software compatibility | Type3,Artcam,UcancamV8,Caxa |
16 Drive System | Stepper system |
17 Working Voltage | Ac220/50Hz |
18 Working Environment | Temperature -10-40oC |
Main applications
It is widely used in the manufacturing progress of PCB plate, gilded version, instrument panel,
electrode, jade, die cutting indentation, industrial mould, precision stamping, architects models,
advertising signs and nameplate, wegweiser, name tag, stamp, artwork ornament, woodwork, iron,
copper, aluminum, plastic plate, etc.
Also have other models
ZK-3030 , 300*300mm
ZK-4040, 400*400mm
ZK-5050. 500*500mm
ZK-5060, 500*600mm
ZK-6060, 600*600mm
Or we can design according to your need.
If you are interested in our product, please contact me when free, we will never let you down!
Contact person: Yvonne Zhu
For further details, pls feel free to contact us!
Jinan Zhuoke CNC Equipment Co.,Ltd
