Desktop CNC Router with 4th Axis
(ZK-3030) OEM Available
Technical Parameters :
Model |
ZK4040 |
JC6060 |
ZK-3030 |
Processing area |
400*400(mm) |
600*600(mm) |
300*300(mm) |
Engraving speed |
0-8000mm/min |
0-8000mm/min |
0-8000mm/min |
Engraving command |
G code |
G code |
G code |
X, Y, Z movement location precision |
0.03/100mm |
0.03/100mm |
0.03/100mm |
X, Y, Z repeat location precision |
0.01mm |
0.01mm |
0.01mm |
Main spindle power |
1.5kw |
1.5kw-3.0kw |
1.5kw |
Main spindle rotating speed |
8000-24000r/min |
8000-24000r/min |
8000-24000r/min |
Z movement distance |
120mm |
120mm |
120mm |
Feed hight |
150mm-200mm |
150mm-200mm |
150mm-200mm |
Processing precision |
0.01mm |
0.01mm |
0.01mm |
Knife |
& 3.175/& 4/& 6 |
& 3.175/& 4/& 6 |
& 3.175/& 4/& 6 |
Working power |
AC220V/50HZ |
AC220V/50HZ |
AC220V/50HZ |
Features :
1. Simple operation and installation, when delivery we will provide the videos for training.
2.Mini portable desktop hobby machine type.
3. Can be controlled by computer, showing the processing path and estimated processing time.
4. Water cooling system, ensuring the processing for the metal/stone/glass cooling.
5. Function of re-carving after break point and power off, reducing the materials wasting.
6. Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,Artcut engraving software, Coredraw, etc.
7. Optional items: rotary axis for cylindrical materials, DSP offline control system, when working no need the computer...
Applications :
The Computerized Mini CNC Machine is suitable for various materials, such as WOOD, PMMA or other plastic, MDF board, PVC, acrylic, composite board plywood, and metal, stone, glass, etc.
It can be used widely to process or make adverstising signs, PCB, nameplates, badges, bronzing plate, aluminium alloy, acrylic plates, ABS resin double color plate, PVC foaming board, indentation plates, signs, construction models, instrument panels, wooden products, etc.

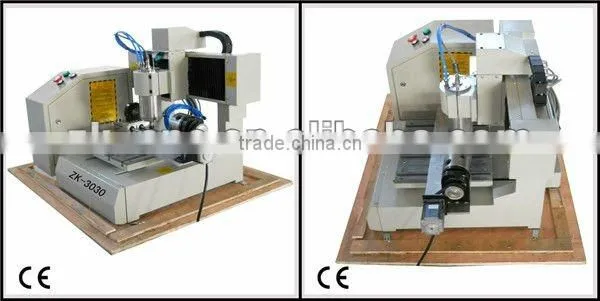

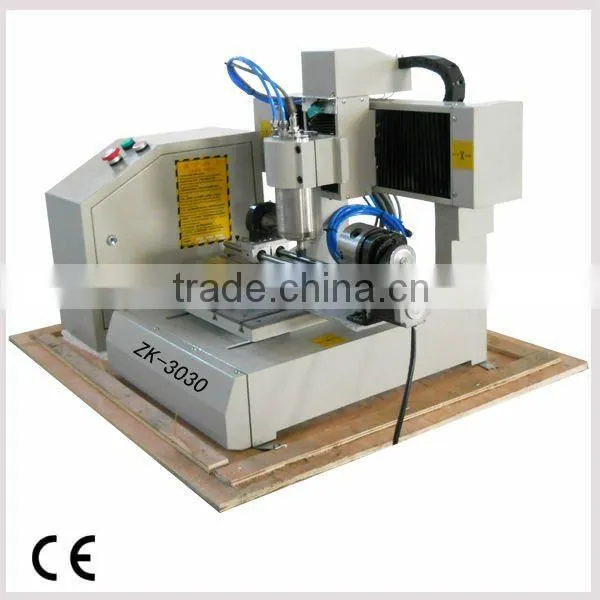

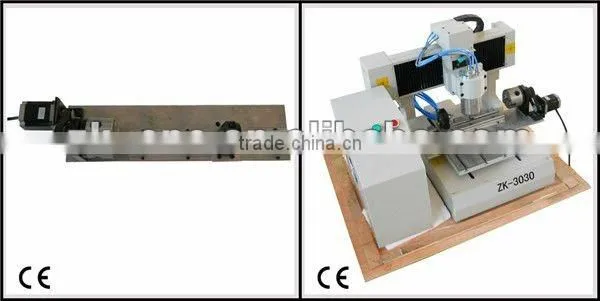

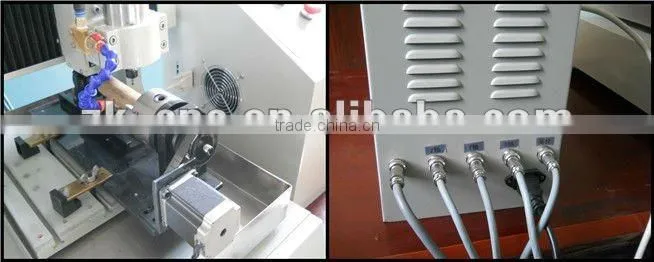

Referrence Machine Pictures :

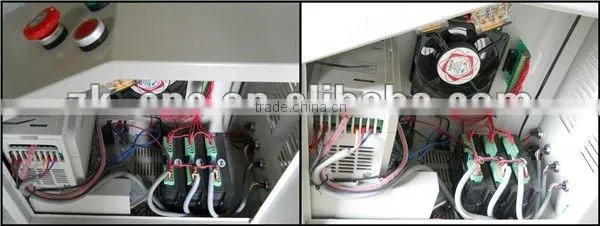

Control Cabinet :
Package :
PRE-SERVICE
Offer us a caill, even cooperate with us or not, you may get unexpected harvest. We could discuss the future development of this line together accroding to many years' experience in selling and producing which could help to enlarge the profits and improvement for both of us.
Studying customers' requirement carefully, we could help clients to choose the best suitable machine and also will offer you the relative samples and suggestions promptly and consinderately to customer's production scale and technical requirement.
SELLING SERVICE
Promptly and patiently answer customer's questions. Put our heart and soul into service for customer, including supply some suggestion on choosing the place, play maximum value of Jinan Zhuoke CNC.
AFTER-SALE SERVICE
1, We will deliver the machine as soon as possible, We will deliver the nomal models within 5 days receiveing the orders for abnormal models, the delivery time is at most 15 days.
2, Our technicians will provide on-site servie to customers in China, We will supply the whole day on-line service to foreign customers, According to foreign customer's requirement, we will arrange techinians go abroad to install or maintenance the machines,.
3, Within the warranty period and the machine parts were damaged under normal using condition, we will offer new parts for the free
4, We will offer software upfrades for free.
5, After the expiry of warranty, we can renewal of the contract, which will enjoy the same service that during the warranty period.
6, The company will research the staffs service attitude aperiodicalty to improve the service satisfaction.
If you are interested in our product, please contact me when free, we will never let you down!
Contact person: Yvonne Zhu
