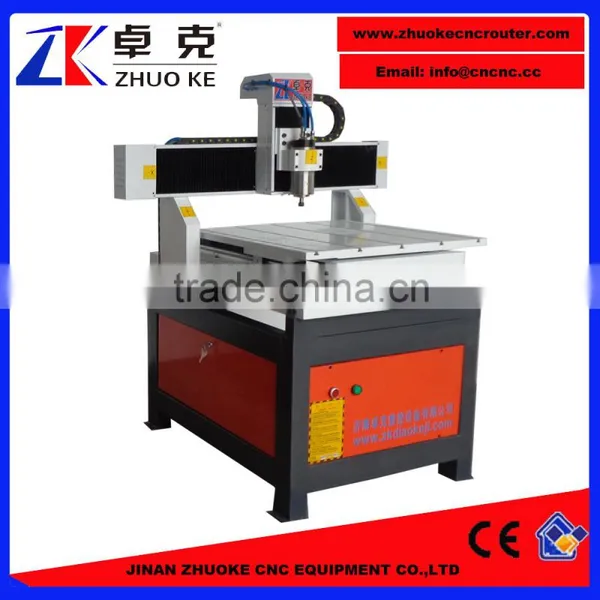

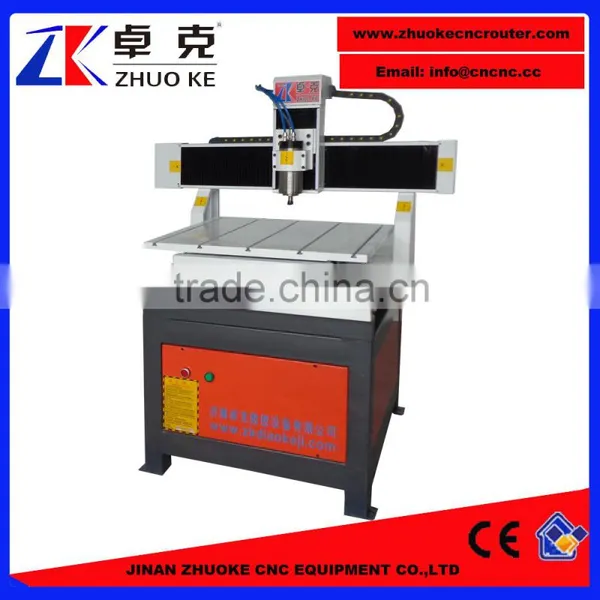

Small PCB CNC Router 6060 Milling Drilling Engraving Machine NCStuido Control 1.5Kw Spindle 600*600mm ZK-6060
- 250 Set / Sets per Month
- Qingdao Port /Ningbo Port
- T/T Credit Card PayPal
- Pneumatic flange dot pin engraving machine dot peen metal engraving machinery
- Pneumatic metal stainless steel flange dot pin engraving machine dot peen metal engraving machinery
- VIN number chassis code serial number dot peen marking metal engraving machinery
- Portable handheld dot peen marking machine vin number engraving machinery
- Pneumatic dot peen marking machine metal stainless steel flange dot pin engraving machine
- Pneumatic dot peen marking machine metal stainless steel dot pin engraving machine
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | ZhuoKe, ZhuoKe |
Model Number: | ZK-6060 | Rated Power: | 1500W(Spindle) | Engraving Speed: | 6000mm/min |
Main Axle Rotational Speed: | 0-24000rpm | Feeding Height: | 80mm | Milling Cutter Diameter: | 3.175,4,6,10,12.5mm |
Application: | Small Printed Circuit Board Drilling & Metal Engraving | Dimensions: | 105*108*140cm | Weight: | 140Kg |
Certification: | CE,SGS,FDA ,ISO,OEM | Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

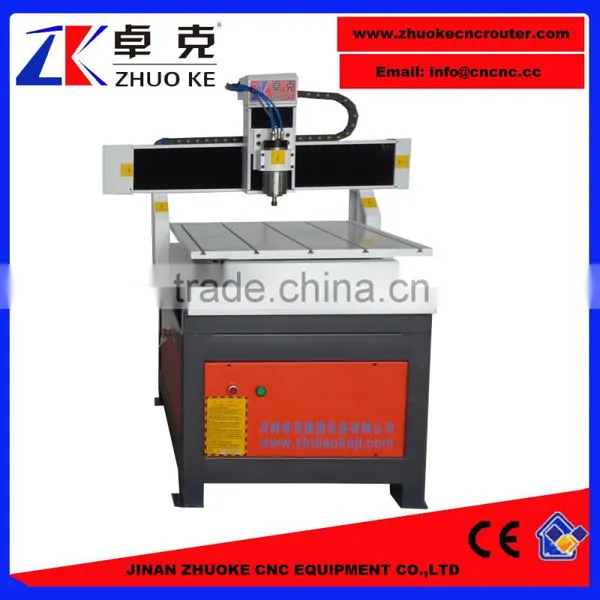

Small PCB CNC Router 6060 Milling Drilling Engraving Machine NCStuido Control 1.5Kw Spindle 600*600mm ZK-6060
Applicable Industries:
1.To complete the production of single and double panel, to help students master the system board
processes(cutting boards,carving,drilling,overhole plating). Provide a reliable platform for the training
of the new technical personnel according to factory.
2.Meet students’ electronic design, EDA practice, electronic design contest, course design, graduation design,
innovative practices, such as integrated design, innovative experimental requirements.
3.Provide the necessary conditions for students independent learning, cooperative learning, research study.
Strengthen students’ practical and creative ability. To culture from students to train engineers via electronic-products from the principles of design,process design, prototype production of the whole process,while learning and master the mechanical process plate process.
Technical Advantages
In order to shorten the research and design time and see results as soon as possible, research institutions, universities, electronics companies can adopt Zhuoke series PCB engraving machine.The time of product-design developed is very long if sent to the printed version of plant production, small trial is high cost and temporary modification of the printed version is also very troublesome.The printed version of the production-of other methods are very cumbersome and the printed version is not standardized.
Zhuoke series highprecision circuit board engraving machine with drilling, carving, line isolation, width setting, the whole map and designated areas engraving, milling and shaped holes and other functions, you-can also use multiple combination of carving knives way to prevent a board spending a few hours, it has-high performance. It takes just 12 minutes to make a simple circuit board and also just about 20 minutes-to produce a very complex circuit board. With environmental performance, using physical engraving, free-corrosion, avoid environment pollution, it is the most powerful, cost-effective CNC engraving machine in the PCB engraving machine industry.
PCB single panel making process
Cut the circuit board into the desired size, or the size of the board has been cut well-- designed in accordance with the engraving machine circuit diagram punch--hole of the device will be used to lay the hole plated circuit board on the wall of the hole copper--plated finish vias on the circuit board for carving, create a route--complete good soldered directly to the circuit board components.
Technical Data
Certificate | CE |
Effective working area | 600(X)mm*600(Y)mm*80(Z)mm |
Max.thickness of the materials | ≤80mm(the distance between Z-axis and the bottom of the working station) |
Moving method | Platform moving |
Material | Whole cast aluminum |
Working table | Cast iron with T slot |
Guide rail | Linear round guide rail |
Transmission | Ball screw for X Y Z-axis (X Y Z-axis: #1605, TBI) |
Driving mode | Stepper motor ( XYZ-axis: 57BYG-311) |
Spindle motor | 1.5KW water cooling |
Spindle collet type | ER 11 |
Suitable cutter tools diameter | 3.175mm, 4mm, 6mm |
Voltage | AC 220V 50/60Hz, single phase |
Spindle speed | 0-24000rpm/min |
Empty travelling speed | 0-8000mm/min |
Engraving speed | 0-6000mm/min |
Machine accuracy | 0.03mm |
Resetting accuracy | 0.03mm |
Diagonal error | 0.3mm |
Resolution ratio | 0.005mm |
Control system | NcStudio |
Designing software | Protel 99, Copper CAM |
Minimum line diameter | 6-8mil |
Minimum line spacing | 8mil |
Minimum step distance | 0.003125mm |
Motor wire | High soft specially for Numerical Control( 4*0.75) |
Spindle wire | Shielding high soft (3*1.5) |
Carving Instructions | G code *Uoo *mmg *plt HPGL |
Running environment temperature | 0-45 °C |
Relative humidity | 30%-75% |
Tools | 24 pieces, 10 pieces drilling tools, 10 pieces engraving tools, 3 pieces corn milling tools, 1 piece bottom clearance tools |
Accessories | Water pump(1), tools (24), power line, USB line, fixtures(4), user manual, software CDs, DSP(1), spanners(2), brush,collets(3), double faced adhesive tapes (2), water tank( |

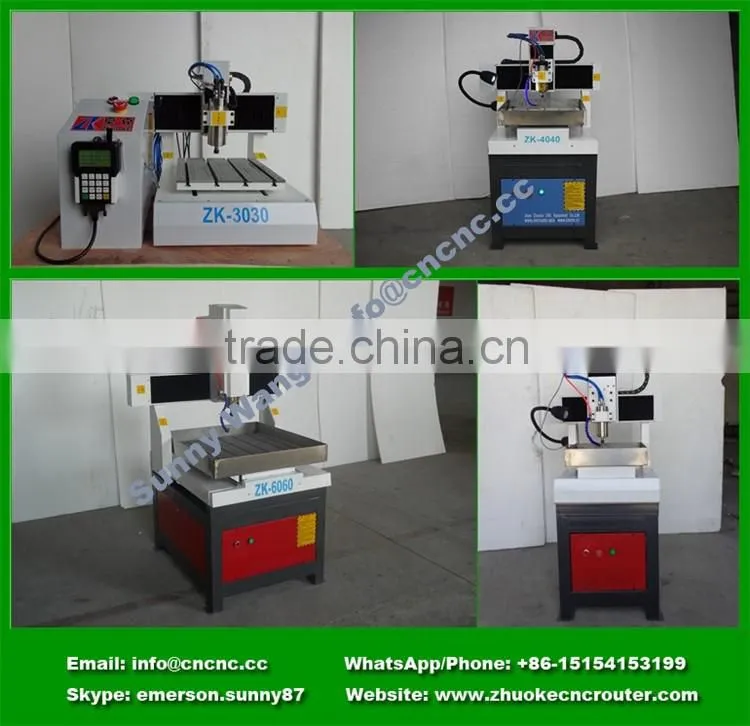

Othe Models You May Need
Referrence Machine Pictures

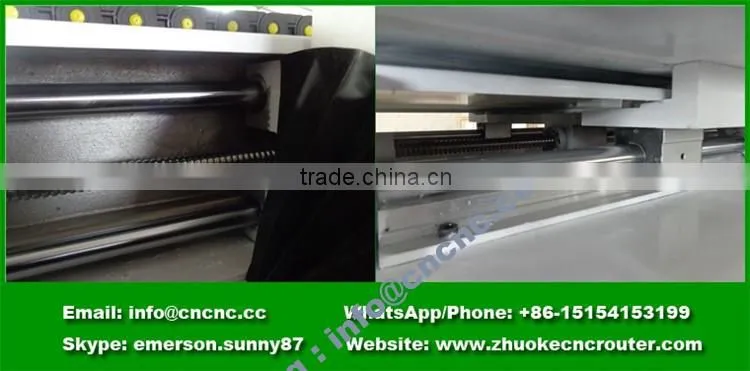

# Linear round guideway and TBI ballscrew transmission

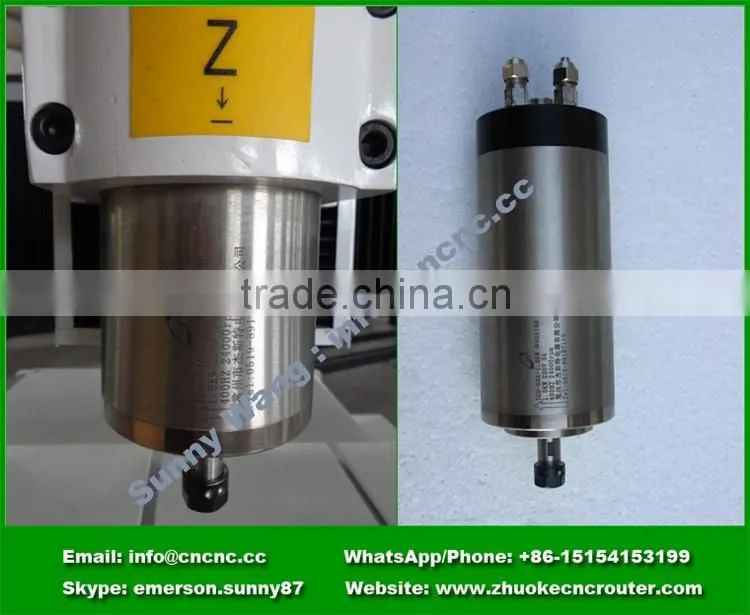

# 1.5Kw water cooled spindle , collet ER11 , support tools diameter 3.175mm,4mm,6mm .

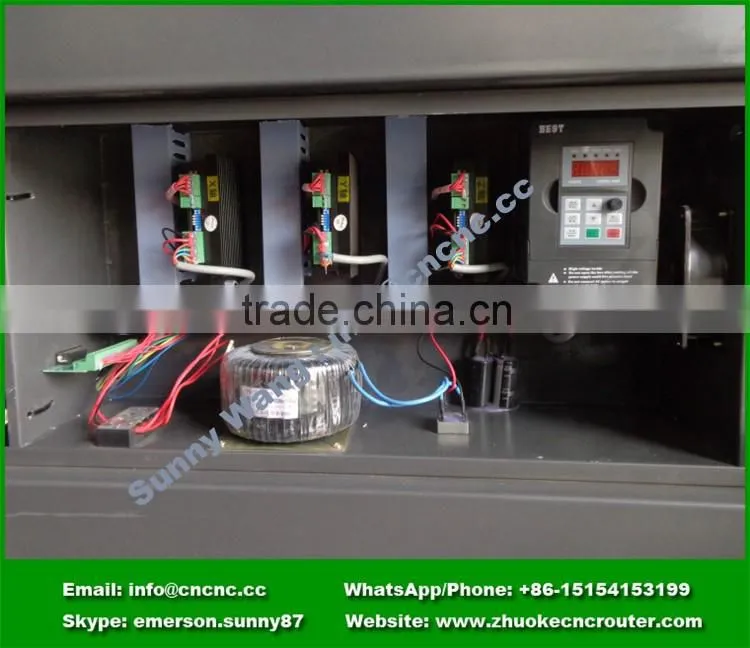

# The control box referrence

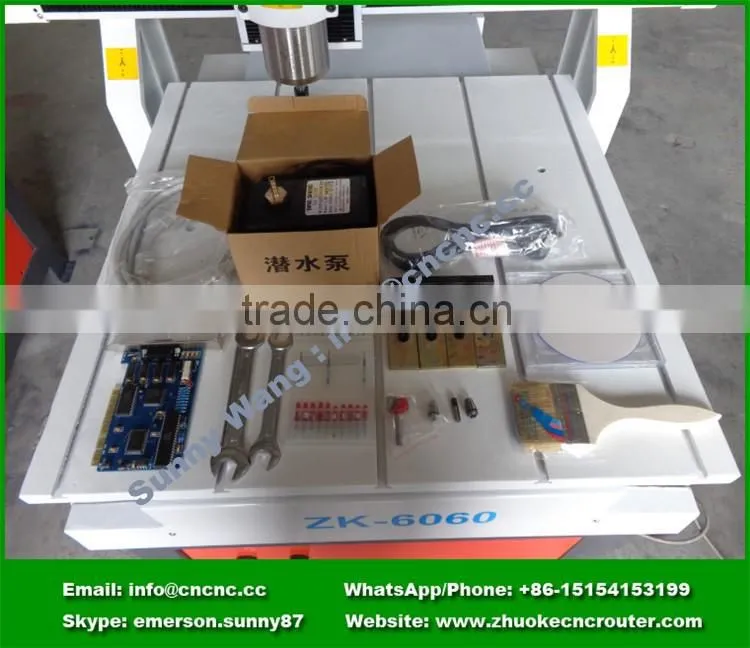

# Accessories along with the machine

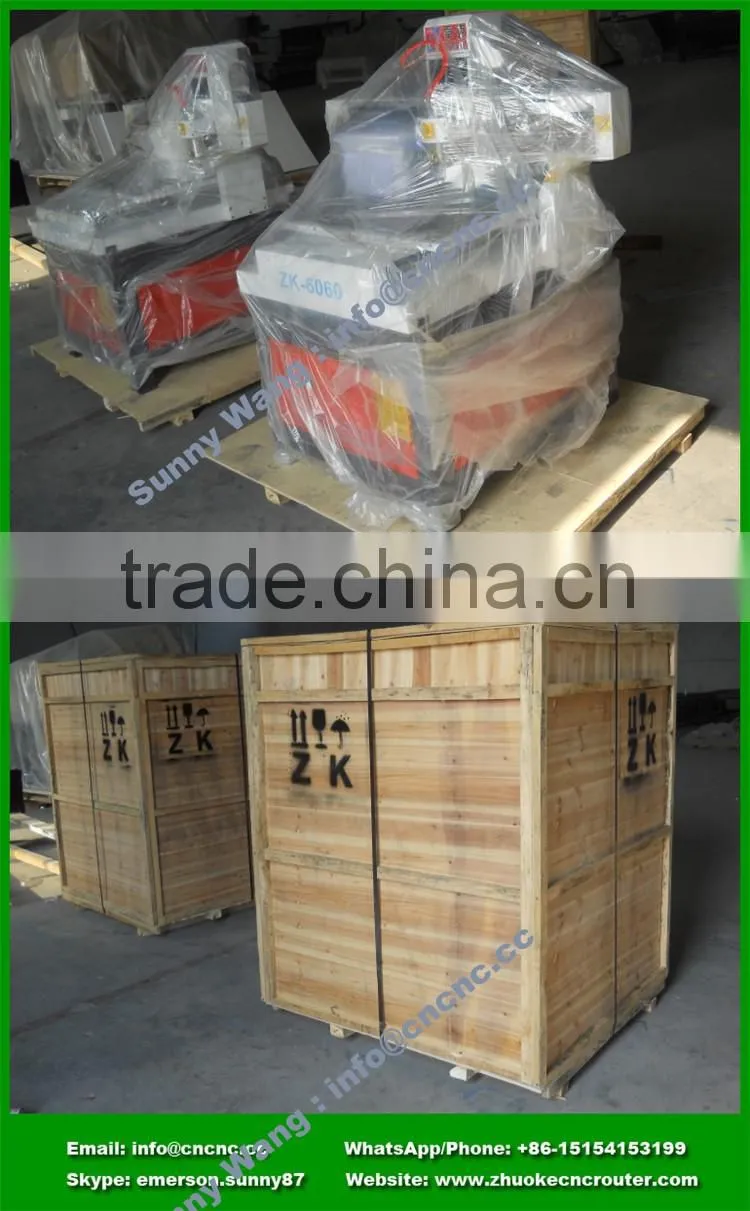

Package And Shipping
125*120*160cm 220kg
FAQ
Q1: Are you factory or trading company?
We are company, which manufactures CNC Router, with 8 years experience in CNC Router area. our factory located in Jinan city ,China ,Welcome to visit our factory whenever.
Q2: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q3: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or skype.
Q4: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q5: This model is not suitable for me, do you have more models available?
Yes, we can supply many models. such as advertising cnc router, metal cnc router, wood cnc router, stone cnc router and so on.
Replacement of some part based on your need. The above are most popular. If it can not meet your requirement, then tell us. We have the ability to make specially according your requirement!
Q6:How do you send the machine to me ?
Usually we ship the machine by sea shipping , send the machine from Shanghai Port ,China to your local city port , then our shipping forwarder will contact you to pick up the machine at your port . the shipping cost by sea is very cheap , that will save your total cost .
Q7:Can you customize the machine design for me if all your standard models are not suitable for my work ?
Yes , if you have the design graphics , we could make the machine according to your designs , we have rich experienced OEM ability in the past few years .
Q8:What's your payment term ? What's your delivery time ?
Our payment term is 30% deposit before the machine production , after we finish the production , we will send you the machine working video and test video to let you check , after you confirm all ok , you do the balance payment to us , then we contact our forwarder to ship the machine for you , after the machine shipped , we will send you all the necessayr shipping documents to let you get the machine at your port successfully . The delivery time is usually 7-10 days for one set machine .

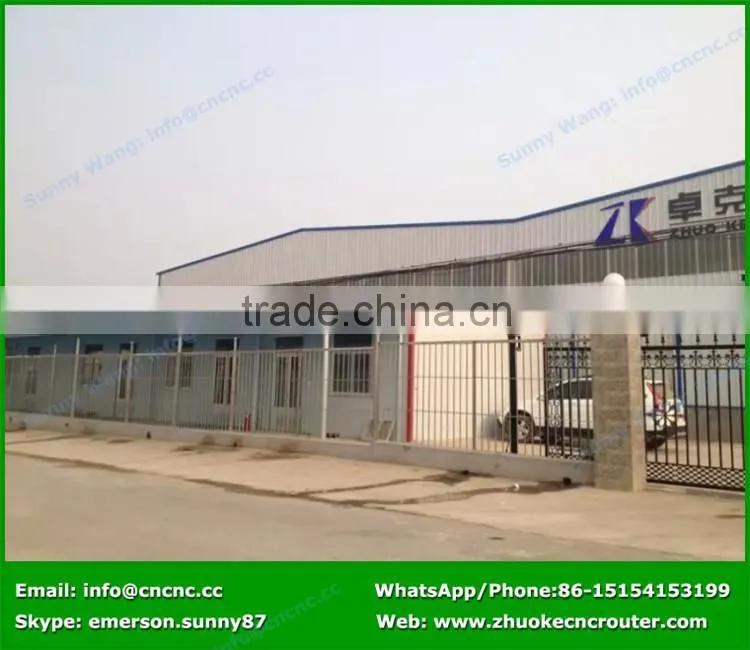

About ZhuoKe CNC
Jinan Zhuoke CNC Equipment Co.,Ltd is a modern enterprise integrating reach and development, manufacturing, sale and after sale service, located in Jinan City, Shandong Province, China.
Our company mainly focuses on manufacturing CNC Routers and Laser Engraving Cutting machine, with high quality and top sales and after sales-service, we have won the customers trust and support from all over the world. Also, our machine can be specially customized according to your requirement.
Our technical and sales teams which are professional and unitive, can give the best service of consulting, installation, operation, maintenance, etc.
We follow in with our best products and sincere service, touched your hearts, so pls feel free to contact us!
If you are interested in our machine , please feel free to contact us , we will never let you down !
