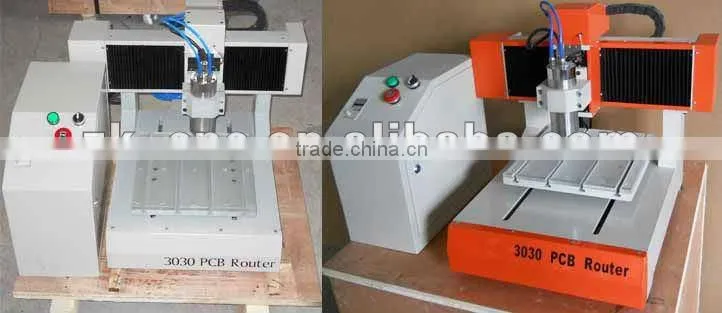

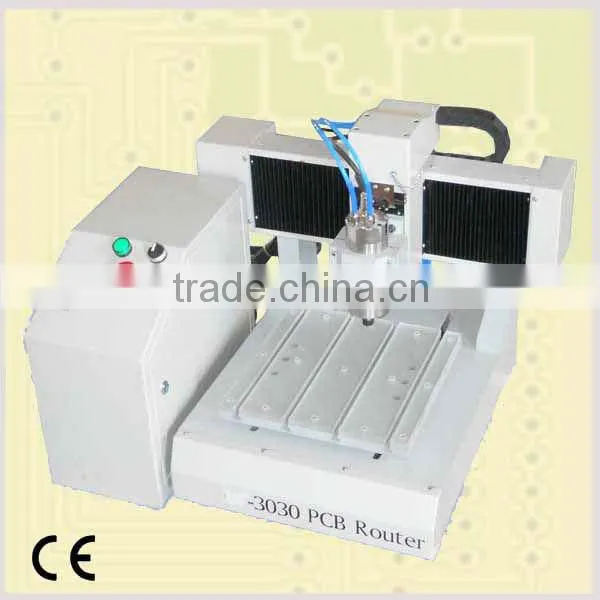

PCB Board Carving CNC Router ZK-3030
Application:

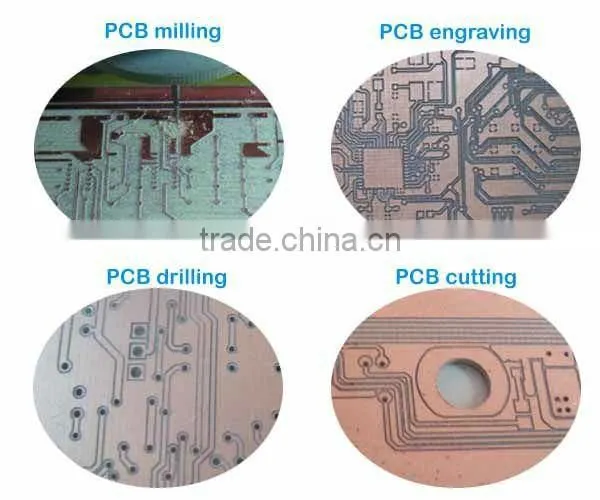

1.This machine is designed for pcb working such as :pcb drilling,milling,engraving,cutting.
2.This machine can also used for many area,such as:
advertising engraving and cutting,wood working,mini craft engraving and cutting.
3.with water channel,this machine can also used for metal or stone engraving and cutting
Packing:
body dimensions: 620*630*550mm
pack dimensions: 850*800*800mm
Net weight: 70kg (with bracket)
Gross weight: 96 kg
free fumigation wooden box
Machine parameter
Model |
JC-3030A |
Model |
JC-3030A |
XY-axis working size |
300*300mm |
Repeat accuracy |
0.025mm |
Z-axis working size |
40mm |
Drilling holes |
40-100/min |
Driving way |
Ball screw |
Command |
G code,u00,mmg,plt,HPGL |
Working panel |
Single/double-side board |
Compatible software |
PowerPCB, Protel99 |
Least step distance |
0.003125mm |
Software running environment |
WindowsXP |
Max. speed |
5000mm/min |
Spindle power |
800W variable speed, water-cooled motor |
Working speed |
0-3000mm/min |
Spindle speed |
0-24000rpm/min |
Working accuracy |
6-8mil |
Driving mode |
Stepper motor |
Least line diameter and least line spacing : |
6-8mil |
Control system |
NCstudio/DSP |
Drilling depth |
0.02-3mm |
Power source |
AC220V 50Hz orAC110V 60HZ |
Drilling diameter |
0.4-3.175mm |
Relative humidity |
30%-75% |
Product feature:
1.Guide Rail: Adopt Taiwan HIWIN import straight party rail.Good stability,high accuracy,lower wastage. The X.Y.Z Axis use import high precision and lower wastage extended nut automatic disappear gap ball-screw.
2.Portal Frame: Use aviation industry aluminum, long service time, resistant to wear and low noise.
3.spindle : Water-cooling spindle, resistant to wear and low noise and can cooling the machine timely and effective .
4.High accuracy , It could engrave 2mm-3mm little letter.
5.The control box adopts advanced CNC system, making it high stability. The high speed subdivided engraver motor is installed to ensure low noise , nonpolar speed change make the spindle revolving speed reach 24000r/min.
Machine details

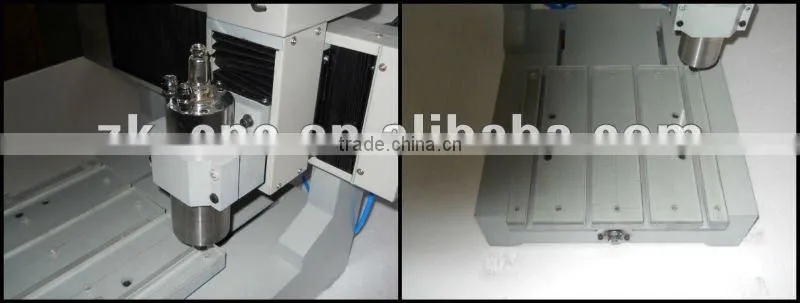

T-slot table coverd arcrylic

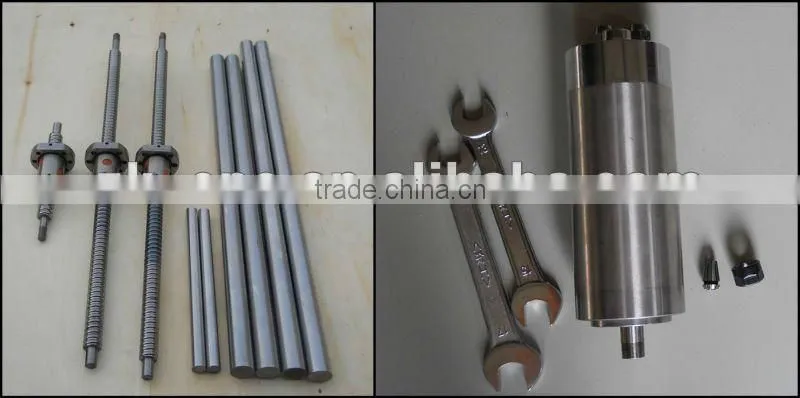

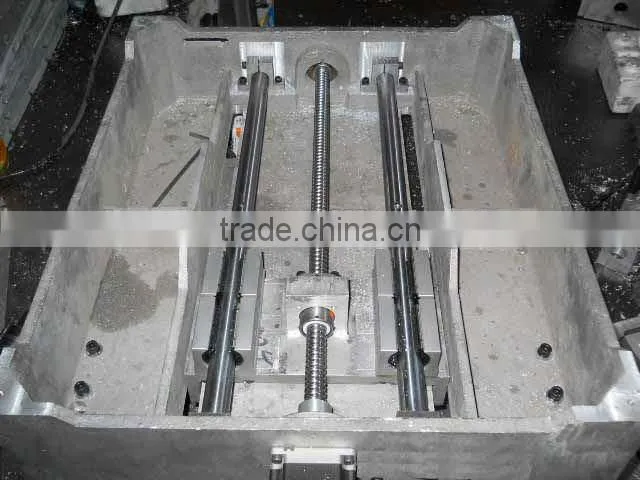

ballscrew,crlindrical guideway,800Wspindle

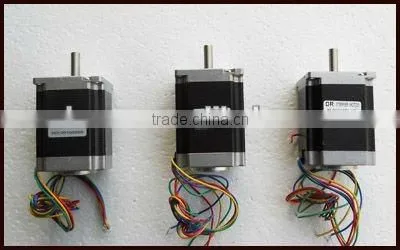

PCB tools and 57-311 step motor
machine Z axis and control box

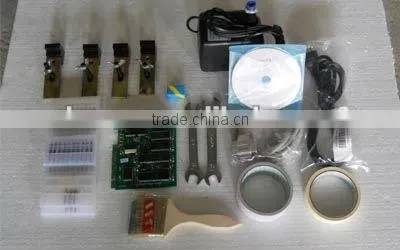

Spare parts(for free):
Clamp-----------------------------4
Spanner---------------------------2
Brush------------------------------1
Software in CD--------------------1
Controlling Card (PCI card)-----1
Water Pump-----------------------1
Engraving And Cutting Tools---24
Data Wire---------------------------1
Power Line------------------------- 1
Key point:
Please kindly tell us your needed working area.
We have 300*300mm, 400*400mm, 600*600mm or make it for you.
Pls kindly tell us the material you will working on and the destination so that we can give you our exact price.

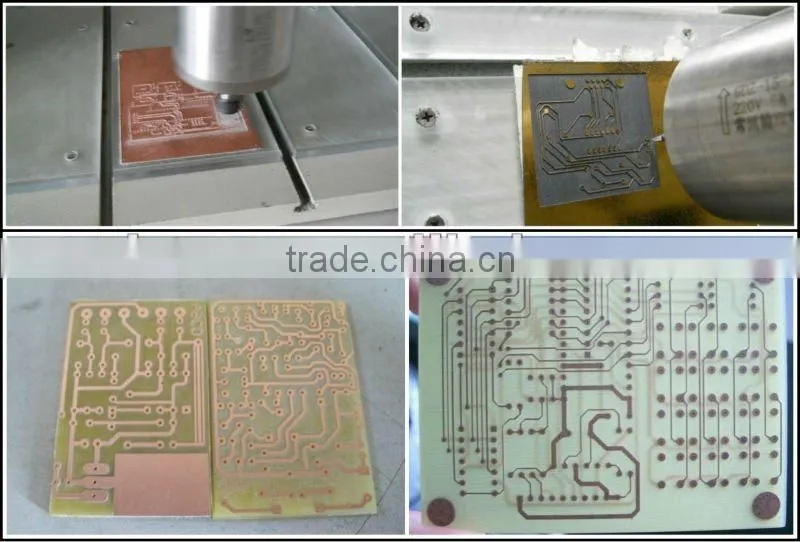

Sample pictures
PRE-SERVICE
Offer us a caill, even cooperate with us or not, you may get unexpected harvest. We could discuss the future development of this line together accroding to many years' experience in selling and producing which could help to enlarge the profits and improvement for both of us.
Studying customers' requirement carefully, we could help clients to choose the best suitable machine and also will offer you the relative samples and suggestions promptly and consinderately to customer's production scale and technical requirement.
SELLING SERVICE
Promptly and patiently answer customer's questions. Put our heart and soul into service for customer, including supply some suggestion on choosing the place, play maximum value of Jinan Zhuoke CNC.
AFTER-SALE SERVICE
1, We will deliver the machine as soon as possible, We will deliver the nomal models within 5 days receiveing the orders for abnormal models, the delivery time is at most 15 days.
2, Our technicians will provide on-site servie to customers in China, We will supply the whole day on-line service to foreign customers, According to foreign customer's requirement, we will arrange techinians go abroad to install or maintenance the machines,.
3, Within the warranty period and the machine parts were damaged under normal using condition, we will offer new parts for the free
4, We will offer software upfrades for free.
5, After the expiry of warranty, we can renewal of the contract, which will enjoy the same service that during the warranty period.
6, The company will research the staffs service attitude aperiodicalty to improve the service satisfaction.
If you are interested in our product, please contact me when free, we will never let you down!
Contact person: Yvonne Zhu
