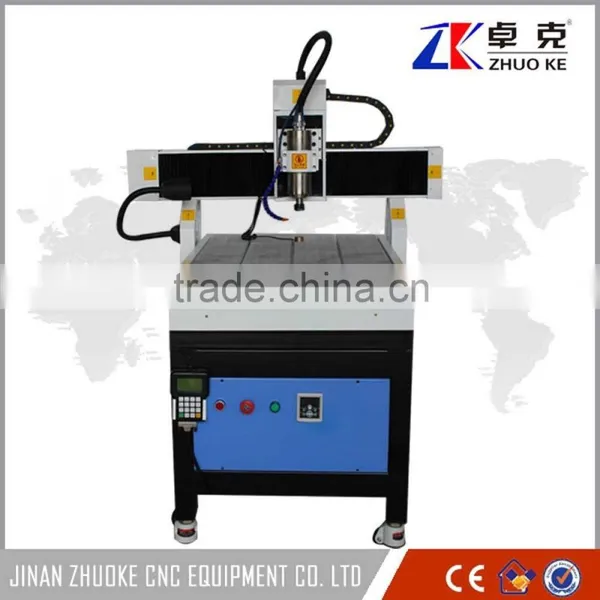

small working table moving pcb drilling machine ZK-6060 600*600mm machine display:
small working table moving pcb drilling machine ZK-6060 600*600mm
Machine parameter
Items |
Basic configuration |
Certificate |
CE |
XY-axis working area |
600*600mm |
Material |
Whole casting iron |
Moving way |
Working table moving |
Working table |
Aircraft aluminum with T slot |
Guide way |
XYZ-axis linear square guide rail |
Driving mode |
XYZ-axis ball screw |
Z-axis working area |
80mm |
Max traveling speed |
8000mm/min |
Engraving speed |
6000mm/min |
Mechanical precision |
0.05mm |
Driving method |
Stepper motor (XYZ-axis: 57BYG-311) |
Water cooling system |
|
Spindle |
1.5 KW water cooling spindle |
Spindle speed |
0-24000rpm |
Collet type |
ER11 |
Tools diameter |
3.175mm, 4mm, 6mm |
Control system |
DSP offline control system |
Design software when delivery |
Protel99 and Coppercam for pcb working |
Compatible design software |
Artcam, Type3, Ucancam, JDPaint, MasterCAM,etc |
Command |
G code ,U00, mmg nc,etc |
Running ambient temperature |
0-45℃ |
Relative humidity |
30%-75% |
Voltage |
AC 220V,50/60Hz, single phase or AC 380V,50/60HZ |
Auto tool calibration |
For Z-axis |
Tools |
24 pcs for PCB |

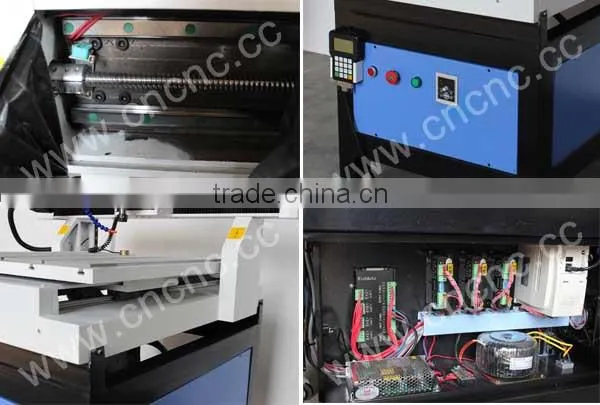

Main features
|
1.Imported the ball screw and Taiwan HIWIN linear square guide way for X Y Z-axis, stable operation, high precision and low vibration. whole casting iron machine bracket. 2.Optional control system according to your need, we are providing the DSP offline,PCI Ncstudio. This machine we adopt DSP offline control system 3.Cooling system for the metal, hard materials, avoiding breaking the cutters and workpiece. 4.Auto tool setting, helping to set the cutters, and not break the cutters. 5.Power off and break point, continuing processing. 6.Good software compatibility: Type3, Artcam, Ucancam V9... All kinds of CAD/CAM software. When we send the machine, Artcam is for free, of couse you can choose the one you like. 7.optional items rotary axis for the cylindrical materials engraving. we have diameter with 80mm,100mm,130mm. You can choose the right one as you need. 8. humanlity CNC control box. We will also add you spare parts for free so that you can use the machine directly after you receive the machine 8.Good at small workpiece precision processing, mainly used for metal, such as aluminium, copper, stainless steel, steel, alloy, etc. 9.Also can for wood, MDF, acrylic, organic glass, PVC, double color board,stone, jade processing. 10. This machine adopt big power 1.5 KW water cooling spindle, optional 2.2KW or 3.2KW spindle, more powerful, less tool breaking, less sticking material. |

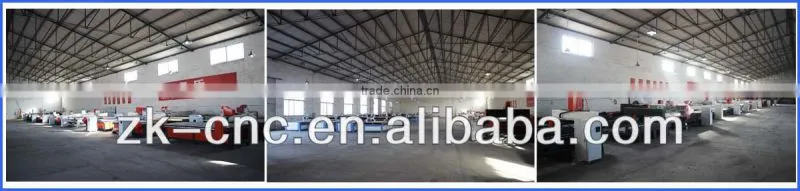

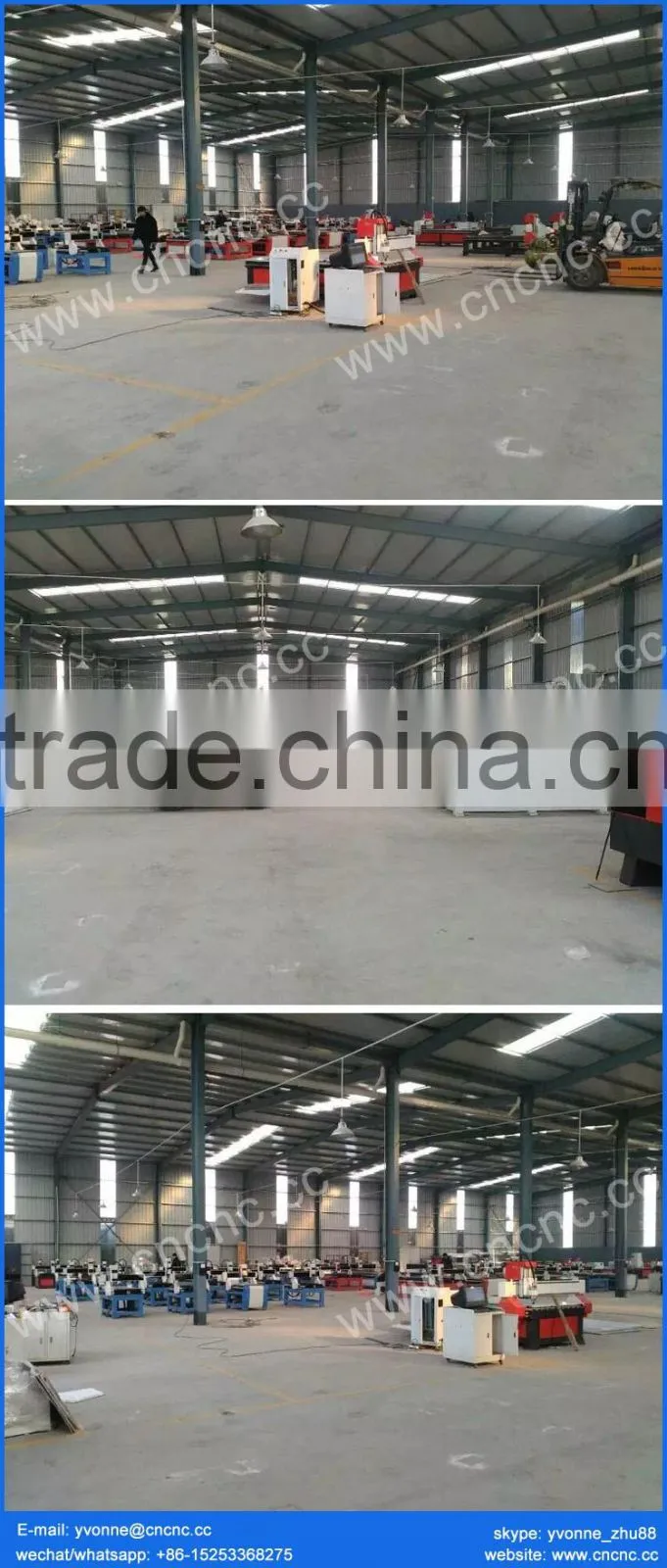

Jinan Zhuoke CNC Equipment Co.,Ltd is a modern enterprise integrating reach and development, manufacturing, sale and after sale service, located in Jinan City, Shandong Province, China.
Our company mainly focuses on manufacturing CNC Routers and Laser Engraving Cutting machine, with high quality and top sales and after sales-service, we have won the customers trust and support from all over the world. Also, our machine can be specially customized according to your requirement.
Our technical and sales teams which are professional and unitive, can give the best service of consulting, installation, operation, maintenance, etc.
We follow in with our best products and sincere service, touched your hearts, so pls feel free to contact us!
Q1: Are you factory or trading company?
We are company, which manufactures CNC Router, with 4 years experience in CNC Router area. Welcome to visit our factory whenever.
Q2: How can I get the best machine for me?
You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q3: This is the first time I use this kind of machine, is it easy to operate?
We will send you manual and guide vedio in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can help you by "Teamviewer" online help software.Or we can talk by phone, email or skype.
Q4: If the machine has problem in my place, how could I do?
We could send free parts to you in warranty period if machines have any problem under "normal use".
Q5: This model is not suitable for me, do you have more models available?
Yes, we can supply many models. such as advertising cnc router, metal cnc router, wood cnc router, stone cnc router and so on.

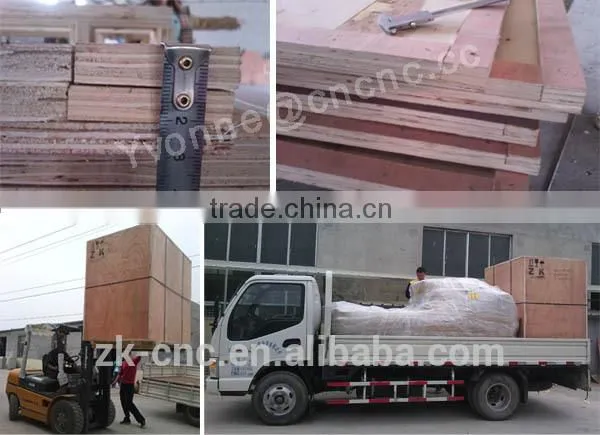

ENQUIRY → OFFER → DETAIL DICUSSION ABOUT THE BUSINESS BY EMAIL OR TEL → CONFIRM ORDER BY PI →MAKE THE MACHINE BASED ON THE DEPOSIT → PROFESSIONAL TESTING BY OUR ENGINEER AND TAKE PHOTO → DELIVER THE MACHINE → CLIENT GET THE MACHINE → PROFESSIONAL AFTER-SALE SERVICE.
Machine working processiting show:
Business processing show:
If you are interested in our product, please contact me when free, we will never let you down!
Contact person: Yvonne Zhu
