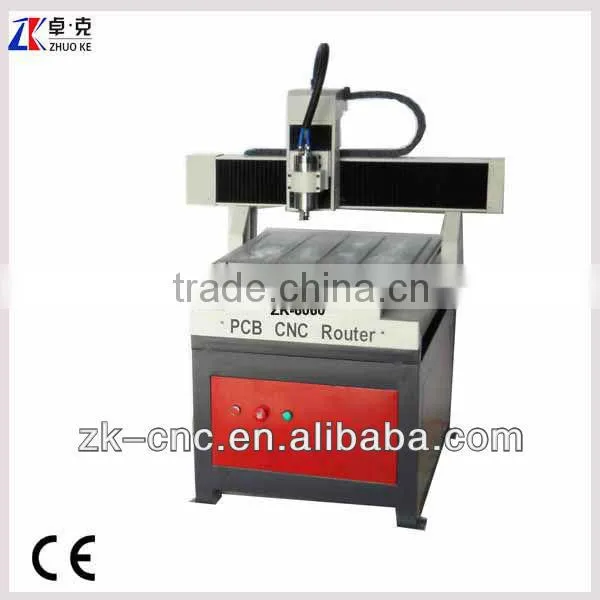

Pcb prototypes making engraver ZK-6060
Main features
1. High efficiency: just need a few minutes to make a piece of PCB.
2. High accuracy: the min error of numerical control drill hole less than 1mil (0.025mm).
3. Automatic and convenience: simple software hardware installation,
the manufacturing process by striking the function keys of operation system.
4. Advanced: anti-corrosion PCB making process, the plate making and drill process can be finished in one machine.
Main technical parameters
Airframe structure |
Whole casting, the whole working table is plain milling |
Working speed |
Adjustable |
Driving mode |
X,Y,Z-axis precision ball screw transmission |
Drive type |
Step motor |
Working area |
600*600mm |
Spindle motor |
1500w frequency changing water-cooling spindle |
|
Minimum line diameter |
6-8mil |
Spindle speed |
0-24000rmp |
|
Minimum line spacing |
8mil |
Power supply |
AC220V,50Hz or AC110V,60Hz |
Minimum step distance |
0.003125mm |
Operating system |
WIN2000/XP/VISTA |
Carved& milling speed |
5000mm/min |
Working humidity |
30% - 75% |
Spindle power |
1500w specialized water-cooling inverter motor |
Compatible software |
PowerPCB, Protel99,etc. |
Processing panel |
Single/double face |
Line disconnecting |
Yes |
Main applications
It is widely used in the manufacturing progress of PCB plate, gilded version, instrument panel, electrode, jade, die cutting indentation, industrial mould, precision stamping, architects models, advertising signs and nameplate, wegweiser, name tag, stamp, artwork ornament, woodwork, iron, copper, aluminum, plastic plate, etc.
Also have other models
JC-3030 , 300*300mm
JC-4040, 400*400mm
JC-5050. 500*500mm
JC-5060, 500*600mm
JC-6060, 600*600mm
Or we can design according to your need.
For further details, pls feel free to contact us!
