ASTM A179 Cold Drawn Steel Tube From China
- Qingdao
 - T/T

You May Like
-


ASTM A519 St52.3 Cold Finished Seamless Mechanical Tube
 -


BKS Black and Rust Oil Protect St52 Hydraulic Cylinder Tube
 -


Honed Cylinder Tubing ASTM A-513 Type 5, ST52.3
 -


En Standard Precision Cold Drawn Seamless Tube Competitive Price
 -


En10305-1 Hydraulic Jack Pipe ISo9001 Verified H8 H9 Tolerance
 -


Din2391 St52 Seamless Honed Steel Tube With High Reputation

Product Details
| Thickness | 2, 30 | |||
| Section Shape | Round | Outer Diameter | 30 - 250 mm | |
| Place of Origin | Shandong, China | Secondary Or Not | Non-secondary | |
| Technique | Cold Drawn | Certification | Other, ISO9001:2000 | |
| Surface Treatment | Other, honed | Alloy Or Not | Non-alloy | |
Product Description
Specifications
1.Rawmaterial:20#.45#,Q345,16Mn,25Mn,27SiMn,42CrMo,Aisi10202.ID:30-250mm
3.BK+S
Alibaba ASTM A179 cold drawn steel tube from
Commodity name:  Alibaba ASTM A179 cold drawn steel tube from china
Parameter:
1.Raw material:20#.45#,Q345,16Mn,25Mn,27SiMn,42CrMo,Aisi1020,Aisi1045,St45,St52etc
2.ID:30-250mm
3.ID tolerance:H8,H9 Surface roughness:Ra 0.02— 0.4μm
4. Final supply condition:cold drawn and stress-relieved(BK+S)
5. Machining allowance:0.5-1.5mm
6.Wall thickness:10%×ID
Suitable for hydraulic cylinder tubes,honing or skiving and roller burnishing cylinder tubes and other applications
Dimensions tolerance
OD(mm)  | ID (mm)  | Tolerance  | ||||
OD (mm)  | ID (mm)  | Wall thickness deviation (mm)  | Ovality (mm)  | Curvature(mm/m)  | ||
40-74  | 30-65  | ±.01  | -0.3,-0.5  | ≤0.5  | ≤0.1  | 0.3  |
74-98  | 65-85  | ±.01  | -0.4,-0.6  | ≤0.5  | ≤0.15  | 0.3  |
100-116  | 85-100  | ±.02  | -0.4,-0.6  | ≤0.6  | ≤0.15  | 0.3  |
124-134  | 110-115  | ±.02  | -0.6,-0.8  | ≤0.6  | ≤0.20  | 0.3  |
140-158  | 120-135  | ±.02  | -0.7,-0.9  | ≤0.8  | ≤0.20  | 0.3  |
165-176  | 140-150  | ±.02  | -0.7,-0.9  | ≤0.8  | ≤0.20  | 0.3  |
188-203  | 160-180  | ±.02  | -0.7,-0.9 Honed  | ≤0.8  | ≤0.20  | 0.3  |
Tolerance on ID
No.  | Inside diameter(mm)  | ID machining allowance(mm)  |
1  | 50-80  | 0.5-0.8  |
2  | 81-125  | 0.7-1.1  |
3  | 125-200  | 0.9-1.2  |
4  | 200-250  | 1-1.5  |
Other dimension can be customized  | ||
Commercial length
No.  | ID Min.(mm)  | Length(mm)  |
1  | 50  | 700—2000  |
2  | 63  | 700—3000  |
3  | 80  | 700—4000  |
4  | >90  | 700—6000  |
Other dimension can be customized  | ||
Delivey conditions:
- Standard packing with plastic caps and strapped bundles.
 - Commercial length 2000~10500mm,custom lengths upon request
 - Surface protection

About our service:
1.cargo track service during transporting and feedback service after cargo is loaded on board
2.flexible terms of payment by T/T and L/C
3.big discount for repeat customers
4.smooth delivering procedure
we can supply all kinds of steel pipes such as hot rolled seamless steel pipes ,cold drawn seamless steel pipes,honed pipes,cold drawn welded tubes(DOM tubes).
Welcome to inquiry at any time, we will try our best to serve you.
Management System Certification:
Production Process:
- Pretreatment : Acid cleaning- Parkerizing


- Cold drawn/cold rolled

Annealing furnace—— stress-relieving (+SR)
Straightener—— Straightening/ Leveling Straightness inspecting
Dimension inspecting
Sawing off not good parts

- Lathe

- Surface Polishing

- Products inspecting

- Finished Products

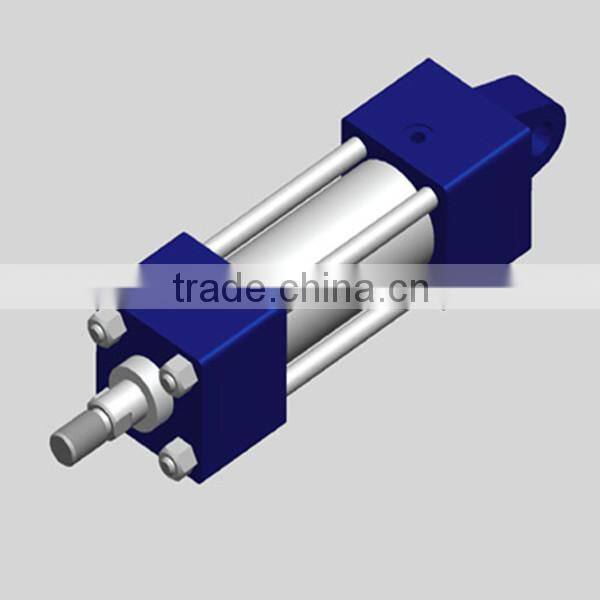

- Application:Hydraulic cylinder tubes

Any need or intrest , please feel free to contact us!
