Specifications
Grade :45# , 20#, Q345B, 25Mn, 16Mn 42CrMoMOQ: 5Ton
fastest ship date: within 10days for some styles
QC: ISO9001 standard

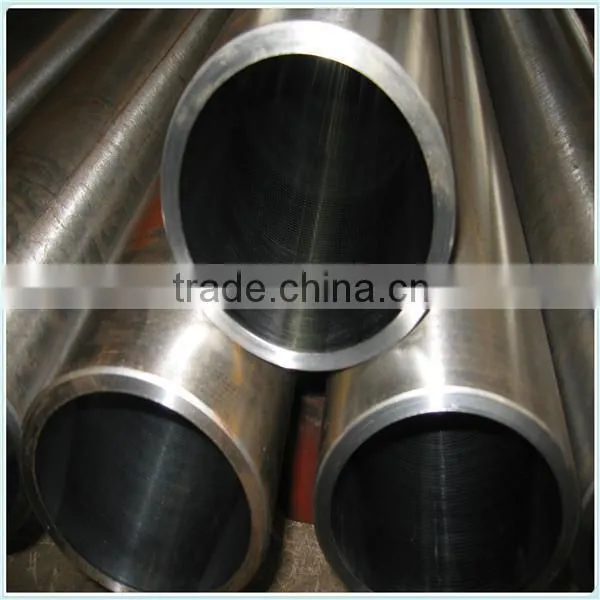

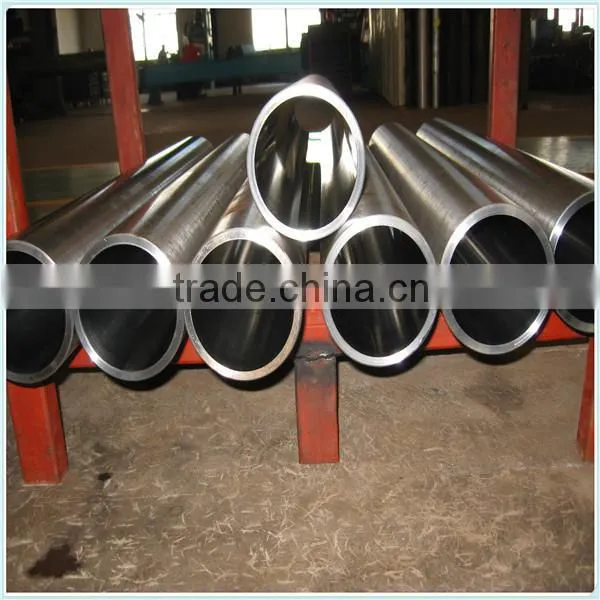

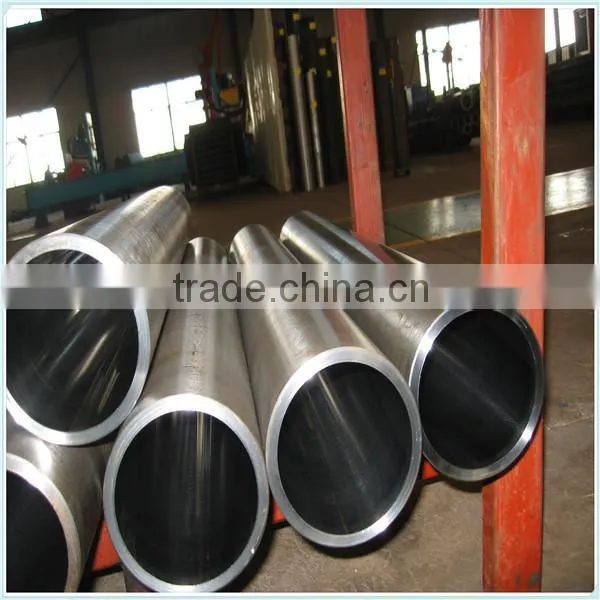

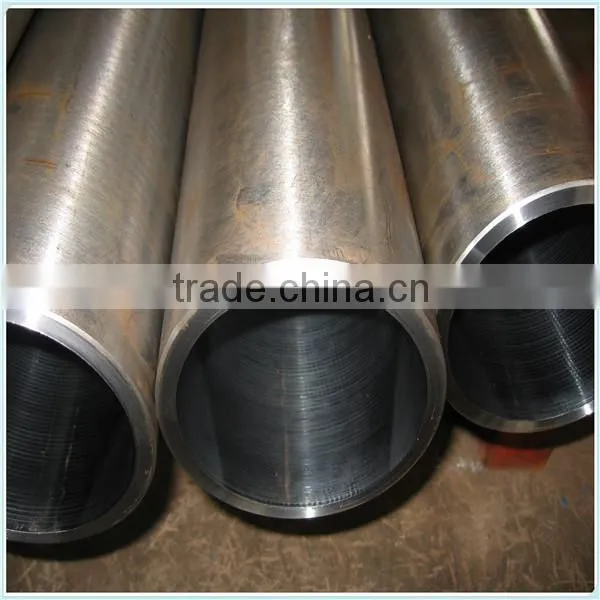

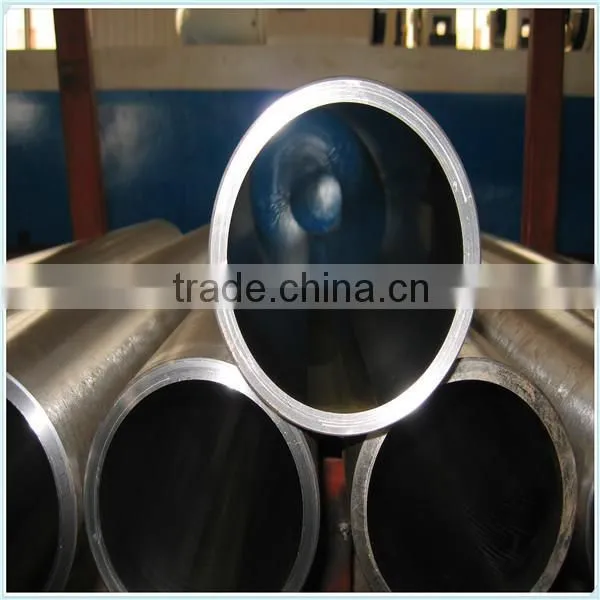

Hydraulic cylinder using cold drawn precision seamless tube MOq:5Mt
We offer an extensive range of seamless precision steel tubes. The seamless precision steel tubes can be used for a wide range of precision mechanical spare for car and cylinder accord to standard DIN2391/ EN10305-1/ GB/T3639-2009.
Processing: Cold drawn or cold rolled (Burnish or other requirements can be agreed)
Length: ≤10m
Straightness:0.3~0.8mm/m
Wall Thickness tolerance: ±10%
Inner roughness: 0.8~1.6μm
Dimensional Accuracy:
1. Tolerance on Inner Diameter: H8 H9
2. Tolerance on Wall Thickness:
Diameter: >40 +/-0.2mm
Diameter: 40 <100 +/-0.3mm
Diameter >100 +/-0.5mm
3. Surface Roughness: a=0.3~0.4micron
Length: Random length4.5-6m or as per order confirmation
Mill Test Certification: En10204/3.1B
4. Delivery condition: BKS
Specification:
Standard |
DIN2391, DIN2445, EN10305, GB/T 3639, GB 8713 |
Grade |
ST35(E235), ST37, ST24(E255), ST52(E355), 10#, 20#, 35#, 45# |
O.D. |
30MM-400MM |
W.T. |
2MM-30MM |
Surface Treatment |
bare, varnished, oiled, anti-corrosion coating as request |
Packing |
1. bundle packing 2. marking as per customer's requests 3. paint on the pipe as per customer request 4. pipe caps as customer request |
Condition of Delivery |
1. NBK(+N) after cold forming, eventually above phase transition point, in a protective atmosphere of annealing oxidation medium 2. GBK(+A) after cold forming, annealing in non oxidizing medium protective gas 3. BK(+C) the final heat treatment after cold forming, therefore small steel pipe plastically, the plastically degree does not guarantee 4. BKW(+LC) after final heat treatment, a tiny cold drawing deformation, continue again when machining steel pipe allowed inside certain limits cold deformation(bending, flaring) 5. BKS(+SR) have a stress relief after cold forming, heat treatment, steel pipe can be carried out within a certain limit in the appropriate processing again |
Some Dimension:
OD x WT |
OD x WT |
OD x WT |
OD x WT |
4*0.5 |
16*0.5 |
26*1.8 |
35*9.0 |
4*0.8 |
16*0.8 |
26*2.0 |
35*10 |
4*1.0 |
16*1.0 |
26*2.2 |
38*0.5 |
4*1.2 |
16*1.2 |
26*2.5 |
38*0.8 |
5*0.5 |
16*1.5 |
26*2.8 |
38*1.0 |
5*0.8 |
16*1.8 |
26*3.0 |
38*1.2 |
48*5.0 |
70*2.8 |
90*10 |
130*14 |
48*5.5 |
70*3.0 |
90*12 |
130*16 |
48*6.0 |
70*3.5 |
90*14 |
130*18 |
48*7.0 |
70*4.0 |
90*16 |
140*2.5 |
48*8.0 |
70*4.5 |
95*2.0 |
140*2.8 |
48*9.0 |
70*5.0 |
95*2.2 |
140*3.0 |
Tolerance in Dimension:
OD |
GB/T3639(GB8713) |
DIN2391(EN10305) |
Our Tolerence |
Best Quality |
4-30mm |
±0.10mm |
±0.08mm |
±0.05mm |
±0.02mm |
31-40mm |
±0.15mm |
±0.15mm |
±0.05mm |
±0.03mm |
41-50mm |
±0.20mm |
±0.20mm |
±0.05mm |
±0.03mm |
51-60mm |
±0.25mm |
±0.25mm |
±0.08mm |
±0.03mm |
61-70mm |
±0.30mm |
±0.30mm |
±0.10mm |
±0.05mm |
71-160mm |
±0.30mm |
±0.30mm |
±0.10mm |
±0.05mm |
Tolerance in WT |
±0.12mm |
±0.10mm |
±0.05mm |
±0.03mm |
|
||||
Process |
Diameter |
Length |
Precision |
Inner Hole Roughness |
Cold Rolled |
30-100mm |
≤12 m |
H8-H10 |
0.4-1.6 |
Cold Draw |
30-250mm |
≤12 m |
H8-H10 |
0.8-1.6 |
Honing |
40-500mm |
≤12 m |
H8-H9 |
0.4-0.8 |
Rolling |
40-400mm |
≤7 m |
H8 |
0.4 |
|
|
|
|
|
Inner Diameter |
H8 |
H9 |
H10 |
|
30mm |
±0.033 |
±0.052 |
±0.084 |
5-30mm |
30-50mm |
±0.039 |
±0.062 |
±0.100 |
±0.080 |
50-80mm |
±0.046 |
±0.074 |
±0.120 |
|
80-120mm |
±0.054 |
±0.087 |
±0.140 |
|
120-180mm |
±0.063 |
±0.100 |
±0.160 |
|
180-250mm |
±0.072 |
±0.115 |
±0.185 |
|
250-315mm |
±0.081 |
±0.130 |
±0.210 |
|
315-400mm |
±0.089 |
±0.140 |
±0.230 |
|
Mechanical Properties:
Condition |
Material Grade |
T.S (MPa) |
Y.S (MPa) |
Elongation (%) |
BKS |
ST35 (10#) |
≥420 |
≥315 |
≥14 |
BKS |
ST45(20#) |
≥520 |
≥375 |
≥12 |
BKS |
ST52(16Mn) |
≥580 |
≥420 |
≥10 |
GBK |
ST35 (10#) |
≥315 |
|
≥35 |
GBK |
ST45(20#) |
≥390 |
|
≥32 |
GBK |
ST52(16Mn) |
≥490 |
|
≥30 |
NBK |
ST35 (10#) |
340-470 |
≥235 |
≥32 |
About our company:
Yantai Xinpeng Steel pipe co,.ltd.
Located in Yantai, a beautiful coastal city in Jiaodong Peninsula, our company is in the (APEC) Science & Technology Industrial Park, urban area of Yantai, with convenient transportation.
Established in December 1992, with registered capital of 5 million yuan and plant and office space of 12,000 square meters, covering an area of 20,000 square meters , our company mainly produces various specifications of cold drawn,rolled precision steel tube,hydraulic cylinder tube and SRB Tube, which are widely used in such industries as hydro-cylinder, automobile, engineering machinery, textile machinery, printing machinery, oil drilling, etc. Our company is also the distributor of several domestic well-known steel tube plants in Shandong, and mainly distributes seamless steel tubes of all kinds of materials.
Distribution, production,agency services:
1. Distribution: Various specifications and materials of seamless steel tubes produced by steel tube plants, such as Baosteel, Baogang Group, Hubei Xinyegang Steel, Tianjin Pipe, Hu’nan Hengyang Valin Steel Tube, PanGang Group Chengdu Iron & Steel, Shandong Yantai General Steel Tube Plant, Yantai Lubao, etc.
2. In October 2002, Shandong Penghui Hydro-cylinder Co., Ltd. was established, and 1 set of 250 ton hydraulic precision cold drawn unit was introduced to produce various specifications of cold drawn precision steel tubes, which are widely used in such industries as hydro-cylinder, automobile, engineering machinery, textile machinery, printing machinery, oil drilling, etc.
3. Agent service: Hydro-cylinder used high precision cold drawn welded tube (DOM) produced by Italy Marcegaglia.
Adhere to the business concept of “integrity”, “the Xinpeng Staff” are dedicated to building the brand of Xinpeng Steel Tube with high quality products, and preserving the enterprise image of Xinpeng Steel Tube with perfect service and supreme credibility.
We warmly welcome new and old customers to our company to negotiate business, sincerely cooperate with each other, and realize mutual prosperity and common development.
About our business partner:
Process
About our deliver conditions:
1. Standard packing with plastic caps and strapped bundles.
2. Commercial length 2000~10500mm,custom lengths upon request
3. Surface protection
