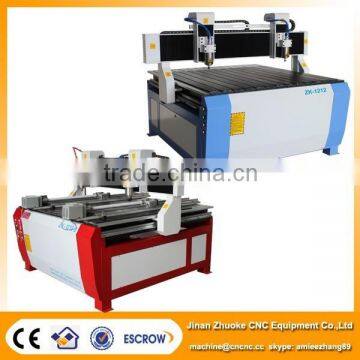

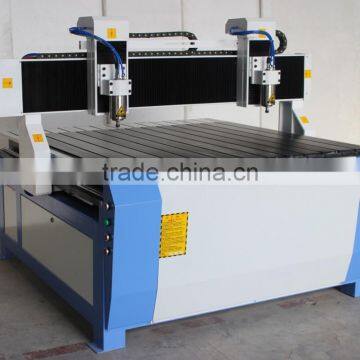

Low Price 2 Heads Wood CNC Router Machine with 2 Rotary Axis
Applicable Industries
Advertisement engraving and cutting, handicraft industry, advertisement logo,crystal word making, toys and gifts,
artwork engraving,various types of manmade plate,LED,neon literally cutting groove,plastic molding light bow, interior decoration industry, mold manufacturing,
wood processing, craft manufacturing, light box cutting, building model cutting, indoor decoration cutting, building, small metal, stationery, rulers, badges, department card, a variety of signs, trademark processing, etc.
Applicable Materials
Organic glass,acrylic,ABS,PVC,MDF,doublecolor board , copper,aluminum composite panel,wood,ox horn,marble,copper,aluminum industry,3D technology,acrylic cutting,wave board,man-made stone,wood etc.
Machine Characters

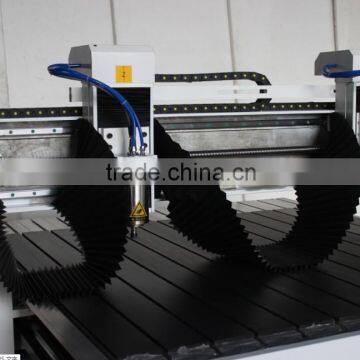

1. Whole cast iron machine bed, cast aluminum gantry with dustproof system, under impact resistance beam
more stronger, higher cutting engraving precision.
2. Imported high quality ball screw, precision segmentation, to achieve the high precision engraving.

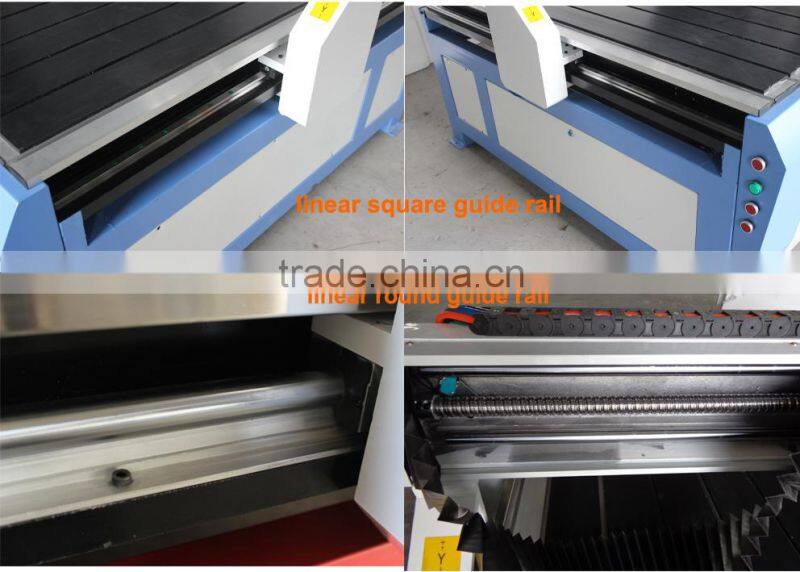

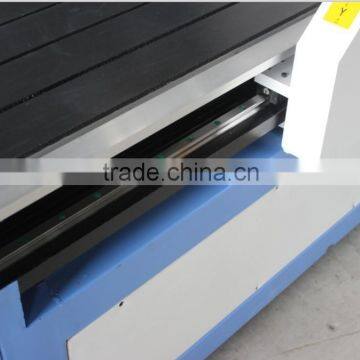

3. Adopt imported linear square guide rail (Hiwin, Taiwan, diameter 20mm) or linear square guide rail, with the high precision,ensure machine frame much stability and durability.

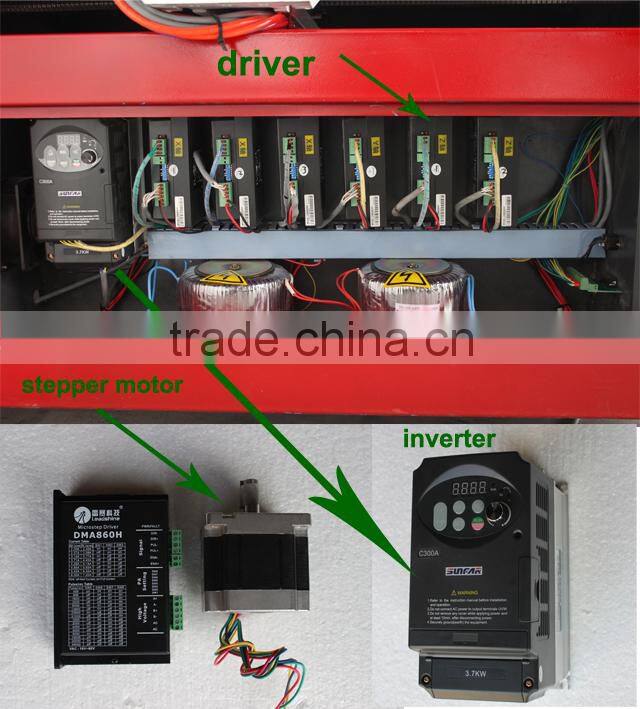

4. Using the Leadshine AC driver and 86BYG high power step motor , makes the machine run smoothly, and higher efficiency .
5. The Optional 1.5kw/ 2.2kw/ 3.2kw water cooling spindle motor adopt highspeed water frequency conversion brushless motors from domestic famous manufacturer .not only can cut vigorously, but also can engrave with great precision.

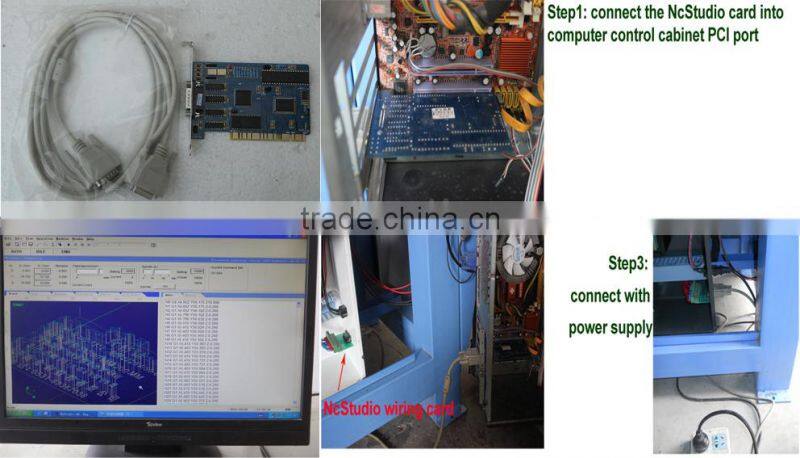

6. NcStudio control, connect with the desktop computer, showing the processing path, estimate the processing time, high stability, high efficiency, easy to learn.

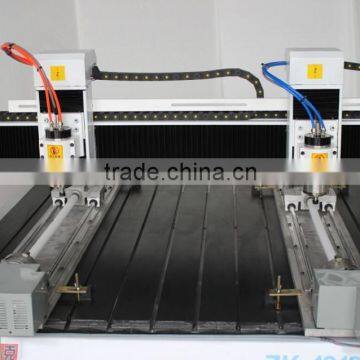

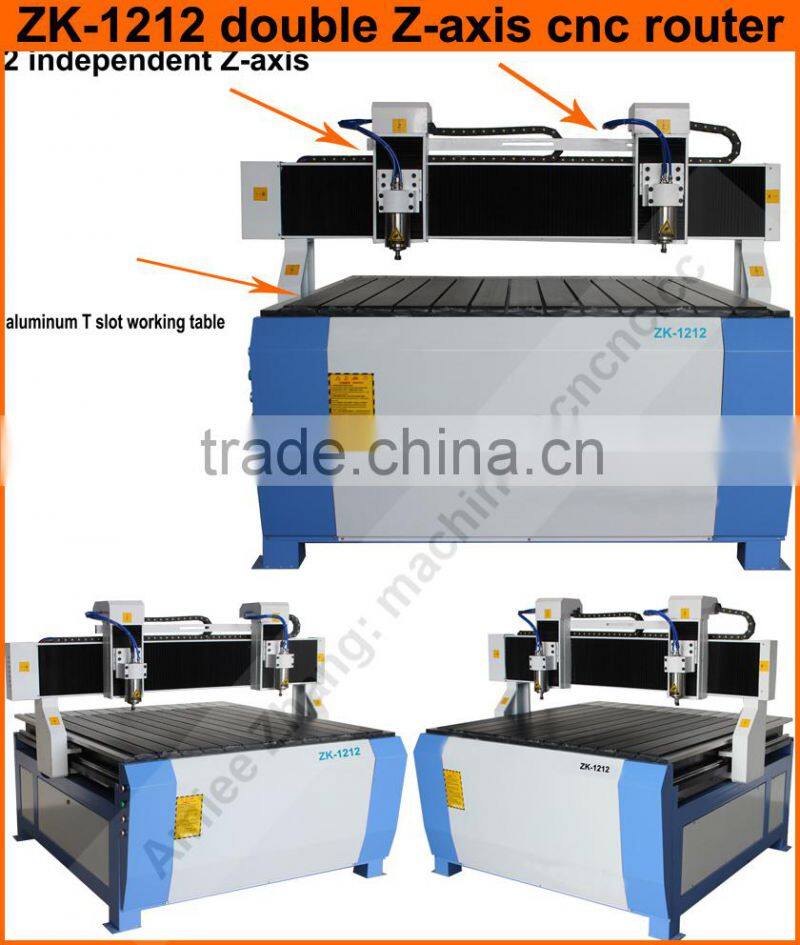

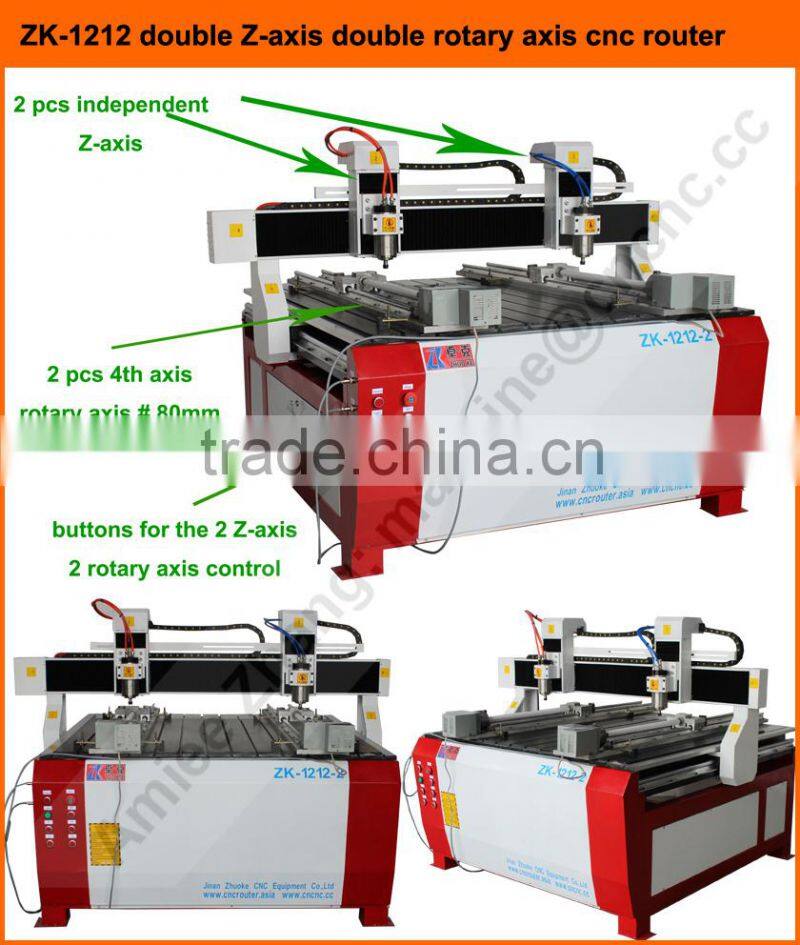

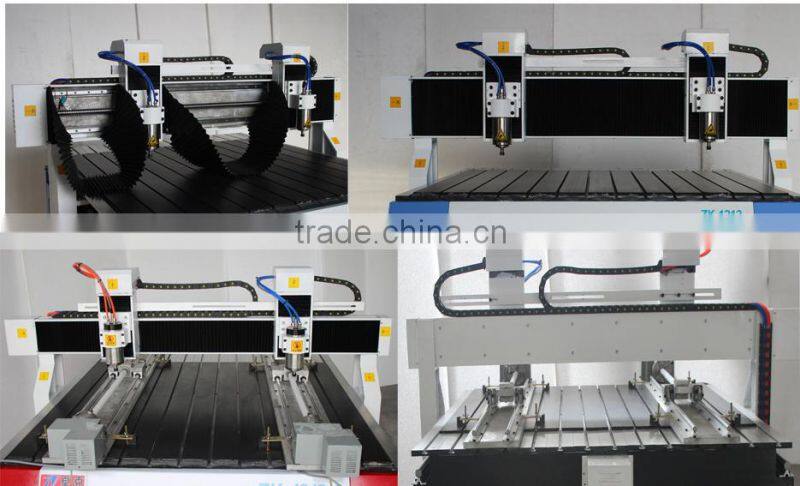

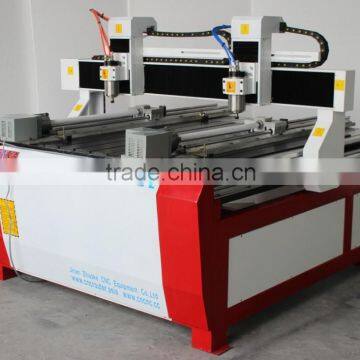

7. Double independent Z-axis , and 2 pcs 4th axis rotary axis, diameter 80mm, working length 1200mm, imporving the efficiency.

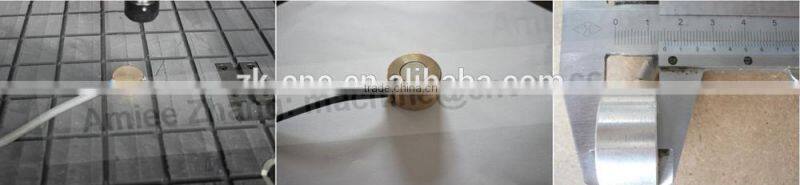

8. Auto tool calibration, helping to set the tools
9. Continuing working after the break point/power failure, lower the rejection rate.

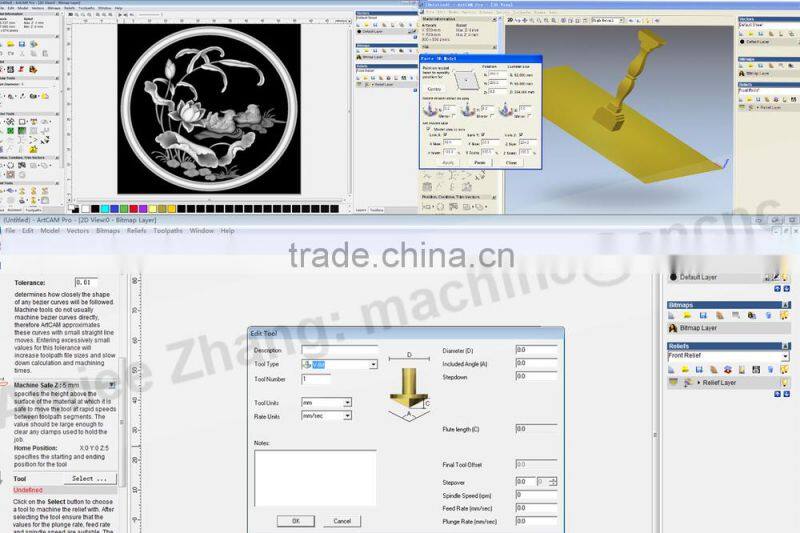

10. Good software compatibility, can compatible with the Artcam/Type3/Ucancam/JDPaint such CAD/CAM software, 2D/3D processing, more convenient to using.
Technical parameters
Certificate | CE |
Effective working area | 1200(X)mm*1200(Y)mm*150(Z)mm |
Max.thickness of the materials | ≤120mm(the distance between Z-axis and the bottom of the working station) |
Moving type | Gantry moving |
Materials | Cast iron machine bed, cast aluminium gantry |
Dust proof system | For X Z-axis |
Working table | Aircraft aluminium T slot |
Guide rail | Linear round guide rail or linear square guide rail |
Transmission | Ball screw for X Y Z-axis ( XY-axis: #2510, Z-axis: #1605) |
Driving mode | Stepper motor ( XY Z-axis: 86BYGH450A) |
Spindle motor | 1.5 kw or 2.2kw or 3.2kw water cooling |
Spindle speed | 0-24000rpm |
Spindle collet type | ER 11/ER20 |
Cutters diameter | 3.175mm, 4mm, 6mm, 8mm, 10mm, 12.7mm |
Voltage | AC 220V, 50/60Hz, single phase |
Empty traveling speed | 0-8000mm/min |
Engraving speed | 0-6000mm/min |
Machine accuracy | 0.05mm |
Diagonal error | 0.5mm |
Resetting accuracy | 0.05mm |
Control system | PCI NcStudio (For desktop computer,windows XP/32bits windows7) |
Motor wire | High soft specially for Numerical Control( 4*0.75) |
Spindle wire | Shielding high soft (3*1.5) |
Carving Instructions | G code *Uoo *mmg *plt HPGL |
Compatible software | Artcam, Type3, Ucancam, etc |
Software when delivery | Artcam 2008(2D/3D) |
Running environment temperature | 0-45 ℃ |
Relative humidity | 30%-75% |
Auto tool calibration | Yes, for Z-axis |
Tools | 15 pcs |
Accessories | Water pump(1), tools(15) power line, USB line, fixtures (4), user manual, software CDs, PCI NcStudio , collets(6), spanners(2), brush(1), water tank(1),limit swiches (3),etc. |
Other available models
ZK-3030 300*300mm ZK-4040 400*400mm ZK-6060 600*600mm
ZK-6090 600*900mm ZK-901 900*1500mm ZK-1215 1200*1500mm
ZK-1218 1200*1800mm ZK-1224 1200*2400mm ZK-1325 1300*2500mm
ZK-1530 1500*3000mm ZK-2030 2000*3000mm
Packing: 6CBM, 500kg, one plywood case
Shipping: EXW/FOB/CIF/DDP/DDU... or according to your need
I would like to send you more information& working videos, just feel free to contact us! ( Miss. Amiee Zhang)
