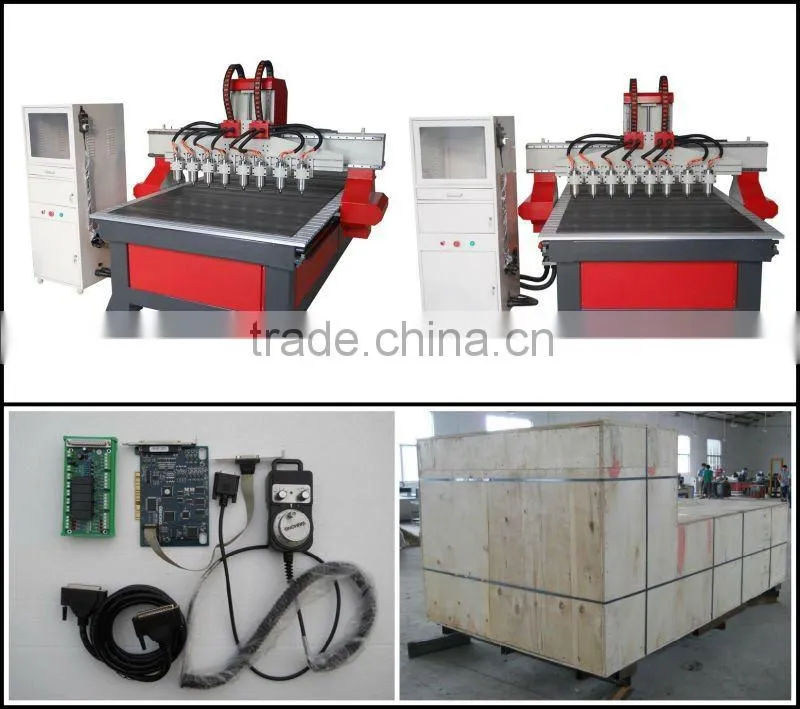

8 Heads CNC router machine
Application
The Computerized 8 heads cnc router is mainly used for relief processing, wood door, cabinets, kitchen utensils, chairs, decoration business, mould industry, wood panel, , wave board processing, MDF sheet carving, screen, calligraphy tablet design , , wood furniture, computer tables, and so on.
Technical parameters
Items |
Description |
Optional items |
Effective working area |
1300(X)mm*2500(Y)mm*200(Z)mm |
|
Max.thickness of the meterials |
≤200mm(the distance between Z-axis and the bottom of the working station) |
|
Materials |
Cast iron thickening machine bed |
|
Guide rail |
Linear square guide rail |
|
Transmission |
Rack for X Y-axis( Oblique tooth) ball screw for Z-axis |
|
Driving mode |
Stepper motor |
|
Spindle head |
8 |
|
Spindle motor |
1.5kw water cooling |
Or higher or air cooling |
Spindle speed |
0-24000rpm/min |
|
Empty traveling speed |
0-60000mm/min |
|
Engraving speed |
0-25000mm/min |
|
Resetting accuracy |
0.05mm |
|
Control system |
PCI NcStudio |
Or DSP offline or MACH 3 |
Carving Instructions |
G code *Uoo *mmg *plt HPGL |
|
Compatible software |
Artcam, Type 3, Ucancam,etc |
|
Packing size |
3200*2050*1800mm |
|
Gross weight |
1300kg |
Features
1.Simple operation and installation, when delivery we will provide the videos for training.

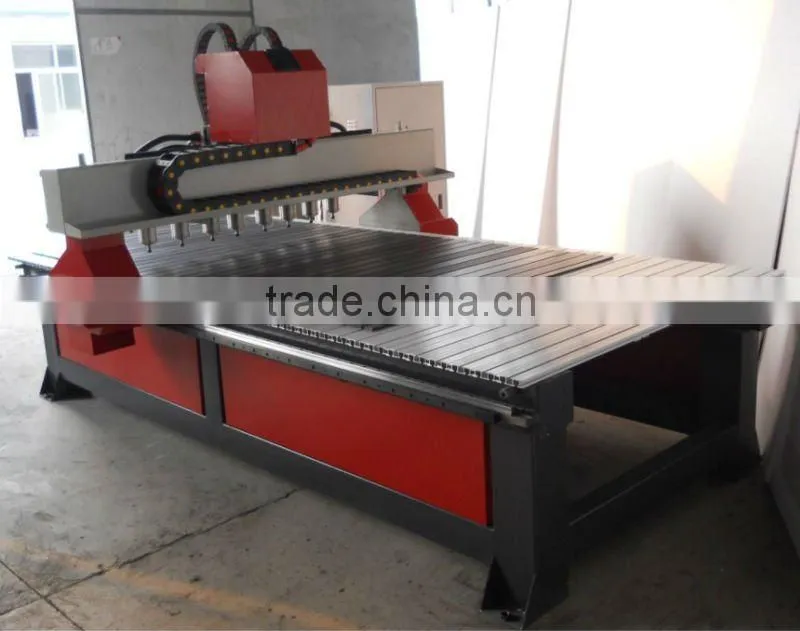

2.More steady and strong equipped with T type gantry and thickening cast iron machine bed

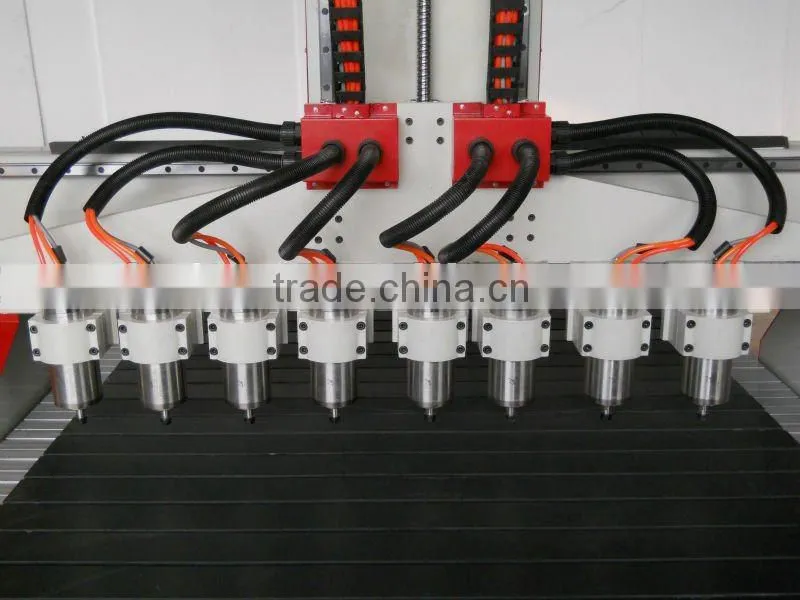

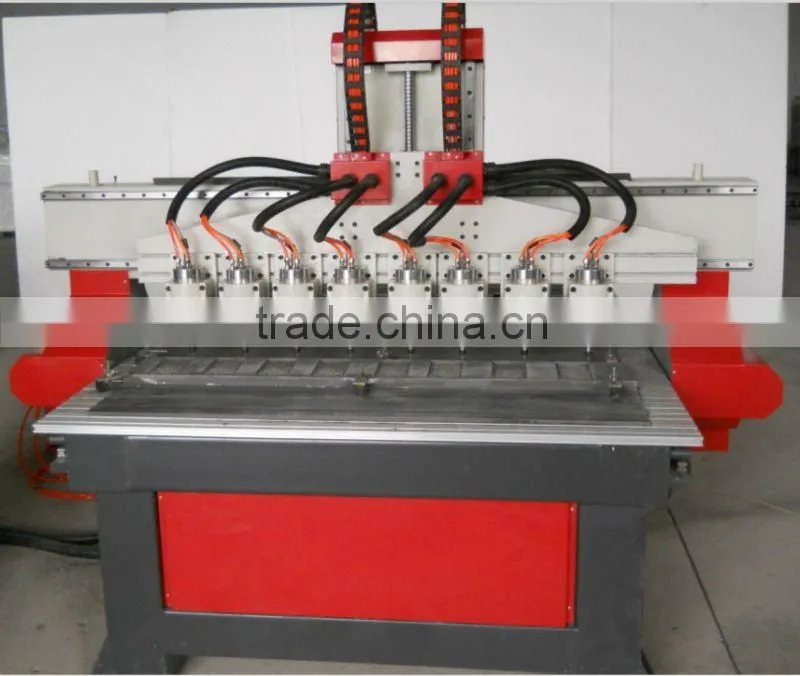

3.Equipped with 8 spindle heads, can processing several workpieces by one time, saving time and improving the efficiency
4. The Spindle heads distance is adjustable according to the workpiece processing size.
5.it can also just open any one spindle head when working.

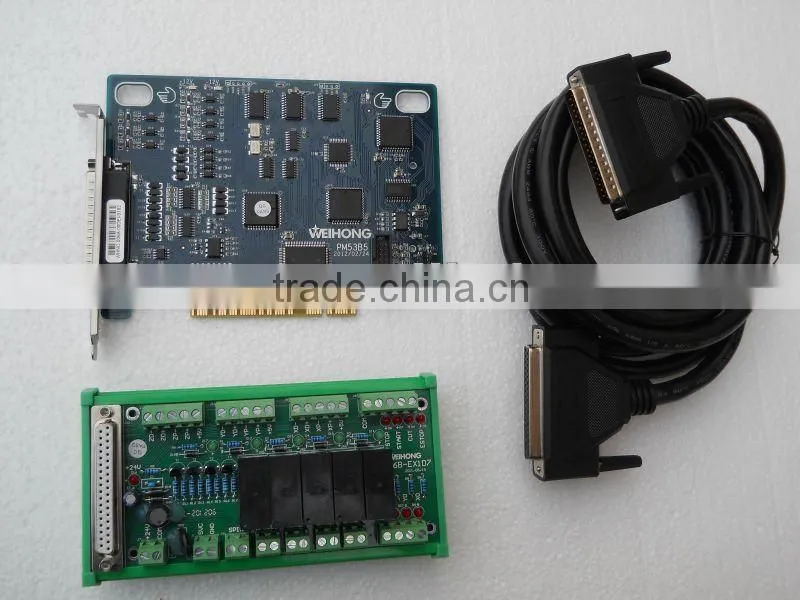

6. NcStudio control system, can be controlled by computer, can compatible with windows 7 desktop computer, showing the processing path and estimated processing time.

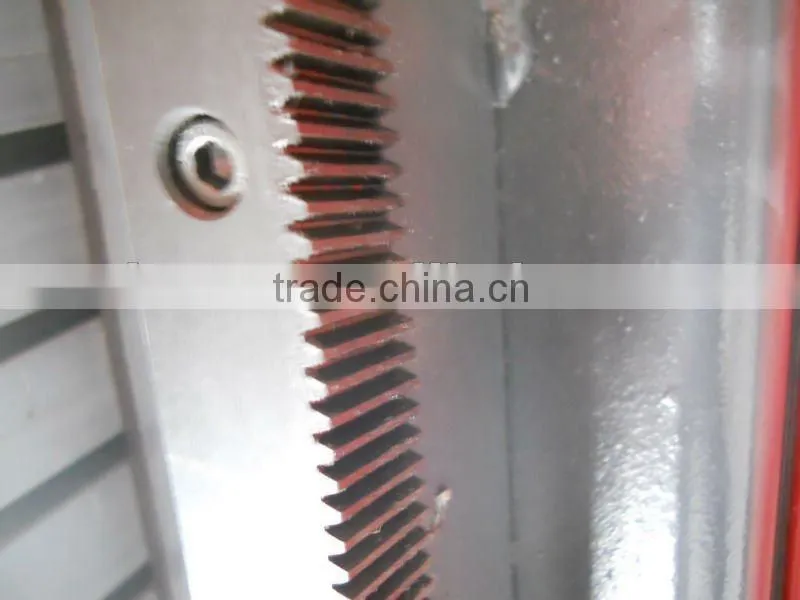

7.Oblique rack transmission, higher precision.
8.Longer 1.5kw water cooling spindle than conventional, high precision.

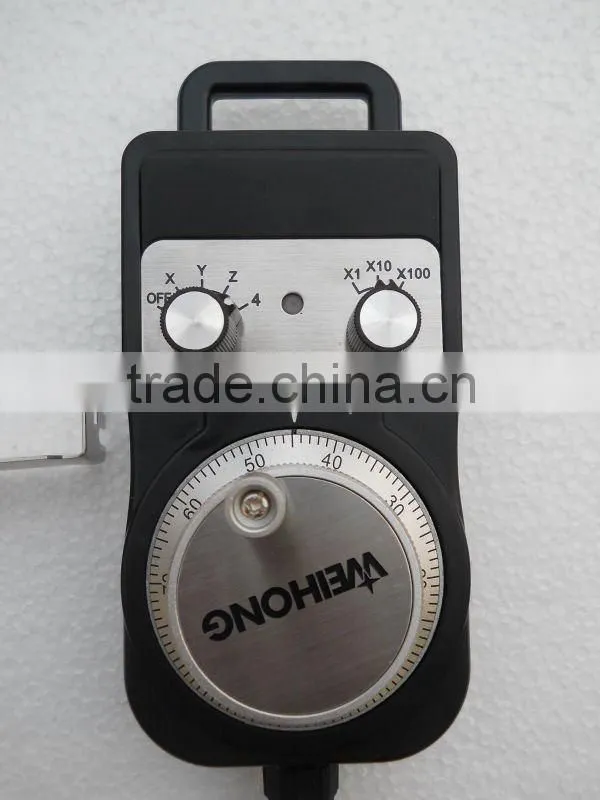

9.Equipped with the hand wheel, can control the machine in the distant.

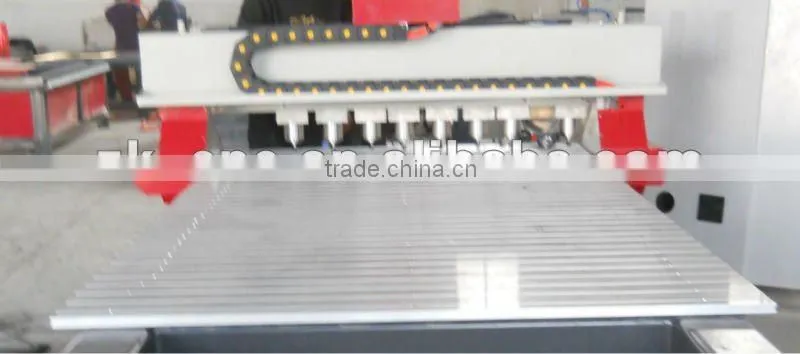

10.Transverse T slot working table, better for the relief fixing.
11. Function of re-carving after break point and power off, reducing the materials wasting.

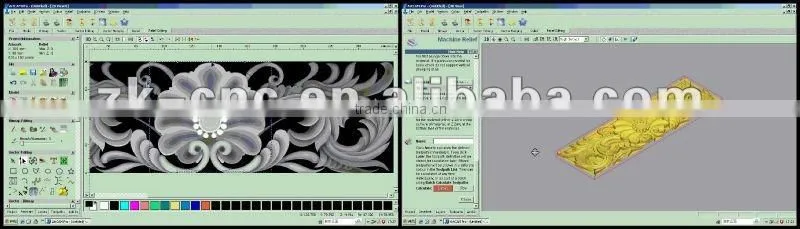

12.Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,Artcut engraving software, Coredraw, etc.
13.Optional items: vacuum table, better to fix the materials, dust collector, helping to suck the milling dust, rotary axis for cylindrical materials, DSP offline control system, when working, no need the computer...
Samples
Guarantee and After Sales Service
1.One year warranty,main parts are free of charge when problems happened during the guarantee period.
2.Life time free maintenance service.
3.Free training course at our factory with professional engineers.
4.We provide the consumable parts at agent price when you need replacement
5.24 hours online service each day,free technical support with different languages.
6.We provide door to door technical support ,if necessary.

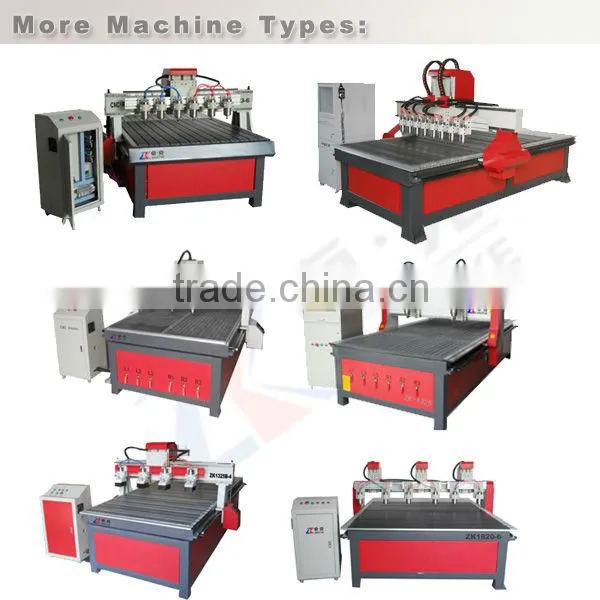

Other models you may be interested in
