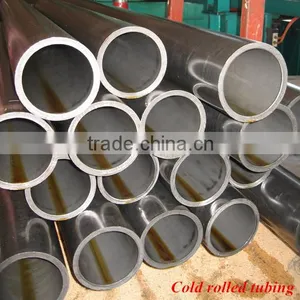

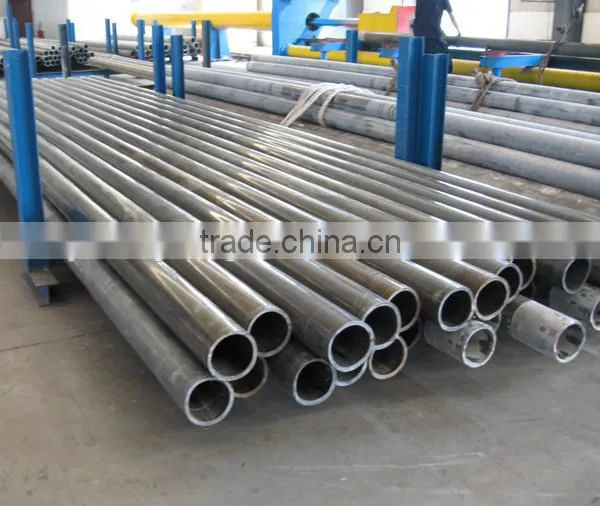

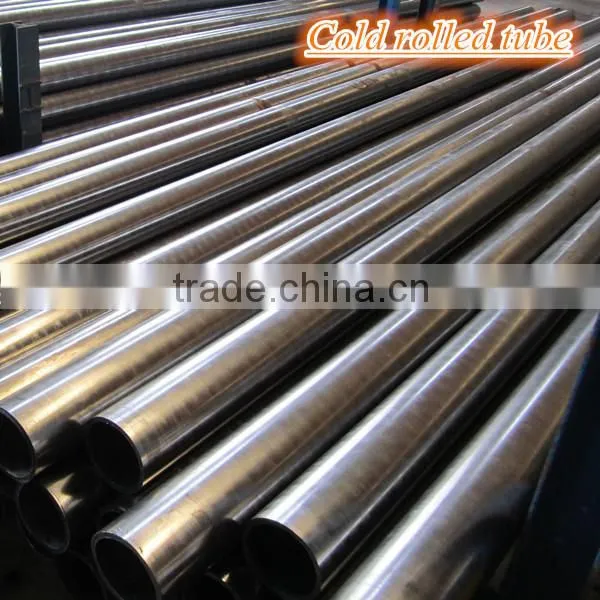

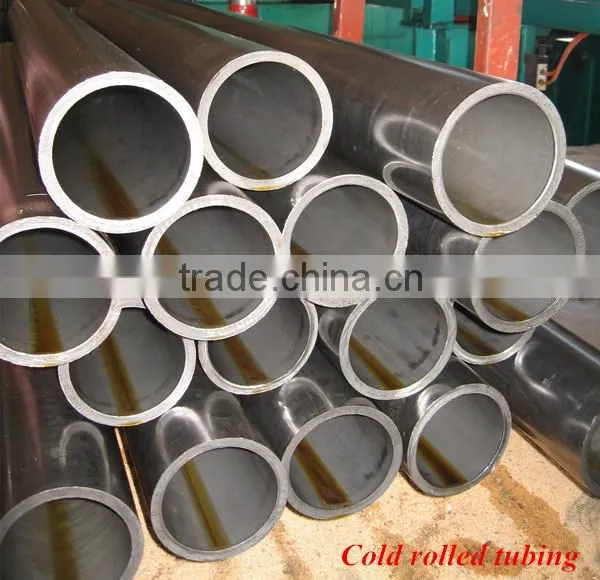

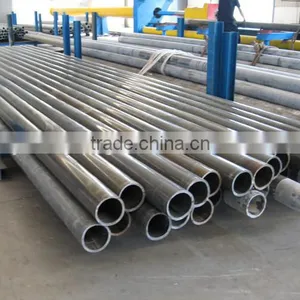

Commodity name: Trade assurance protected cold rolled seamless precision steel tube
Yantai Xinpeng Steel Pipe Co,.Ltd. is one of the best suppliers of the precision tube and hydraulic cylinder tube in North of China. Since 2002 Cold drawn machine set importing, Xinpeng become a big precision steel pipe manufacture with 500Mt month productivity in the next 12 years.
Suitable for hydraulic cylinder tubes,honing or skiving and roller burnishing cylinder tubes
Dimensions tolerance
Grade |
OD(mm) |
ID (mm) |
Tolerance |
||||
OD (mm) |
ID (mm) |
Wall thickness deviation (mm) |
Ovality (mm) |
Curvature(mm/m) |
|||
|
20#
|
40-74 |
30-65 |
±.01 |
-0.3,-0.5 |
≤0.5 |
≤0.1 |
0.3 |
74-98 |
65-85 |
±.01 |
-0.4,-0.6 |
≤0.5 |
≤0.15 |
0.3 |
|
100-116 |
85-100 |
±.02 |
-0.4,-0.6 |
≤0.6 |
≤0.15 |
0.3 |
|
124-134 |
110-115 |
±.02 |
-0.6,-0.8 |
≤0.6 |
≤0.20 |
0.3 |
|
140-158 |
120-135 |
±.02 |
-0.7,-0.9 |
≤0.8 |
≤0.20 |
0.3 |
|
165-176 |
140-150 |
±.02 |
-0.7,-0.9 |
≤0.8 |
≤0.20 |
0.3 |
|
188-203 |
160-180 |
±.02 |
-0.7,-0.9 Honed |
≤0.8 |
≤0.20 |
0.3 |
|
Mechanical properties
- Tensile strength:≥520Mpa
- Yield strength :≥375Mpa
- Elongation :>15%
- Hardness :HRB>85
- Supply condition:BKS(+SR)
Delivey conditions:
- Standard packing with plastic caps and strapped bundes.,standard weight approx 1500kg
- Commercial length 2000~10500mm,custom lengths upon request
- Surface protection
Production Process:
- Pretreatment : Pickling—Phosphating—Saponification
- Cold drawn/cold rolled
- Annealing furnace——+SR
- Straightener—— Straightening
- Straightness inspecting
- Dimension inspecting
- Sawing
- Lathe
- Polishing
- Products inspecting
- Finished Products
-
Application:
widely used in hydraulic system with precision steel tube, injection molding machine with precision steel tube, hydraulic press with precision steel tube, shipbuilding with steel tube, EVA foaming, hydraulic machinery, hydraulic cutting machine, shoe making machinery, hydraulic equipment, high pressure tubing, hydraulic tubing, card sets of joints, pipe joints, rubber machinery, forging machinery, casting machinery, engineering machinery, automotive high pressure steel pipe concrete pump, sanitation vehicle, automobile industry, shipbuilding industry, metal processing, military industry, diesel engine,
About our service:
1.cargo track service during transporting and feedback service after cargo is loaded on board
2.flexible terms of payment by T/T and L/C
3.big discount for repeat customers
4.smooth delivering procedure
our cooperation
RFQ:
Q1.What do you want to purchase ?
What we can offer are cold drawn seamless tubes,cold drawn welded tubes (DOM tubes)
Q2.Do you have the target price ?
Generally ,we have the target price when we buy something ,which is good for both supplier and
customer ,at the same time ,the target price should be objective ,reflecting the market.
Q3.What factors have an effect on the price ?
1 The market. our price rise and fall accompany with the market
2 The material and the grade .Different materials sometimes mean hundreds dollars.
3 The sizes. generally ,the thinner is more expensive because of the manufacture difficulty
Welcome to inquiry at any time!
