Wireless handwheel Temperature display panel metal wood cnc router engraving machinery
- 320 Set / Sets per Month
- QINGDAO/GUANGZHOU/YANTAI
- T/T L/C D/P D/A Credit Card PayPal
- Pneumatic flange dot pin engraving machine dot peen metal engraving machinery
- Pneumatic metal stainless steel flange dot pin engraving machine dot peen metal engraving machinery
- VIN number chassis code serial number dot peen marking metal engraving machinery
- Portable handheld dot peen marking machine vin number engraving machinery
- Pneumatic dot peen marking machine metal stainless steel flange dot pin engraving machine
- Pneumatic dot peen marking machine metal stainless steel dot pin engraving machine
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | ZHUOKE |
Model Number: | ZK-9015 metal cnc router | Rated Power: | 900w | Engraving Speed: | 0-6000mm/min |
Main Axle Rotational Speed: | 0-24000rpm/min | Feeding Height: | 80mm | Milling Cutter Diameter: | 3.175/4/6/8/10/12.7mm |
Application: | Metal /copper/iron | Dimensions: | 950*850*1600mm | Weight: | 200KG |
Certification: | CE | Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Wireless handwheel Temperature display panel metal cnc router engraving machinery

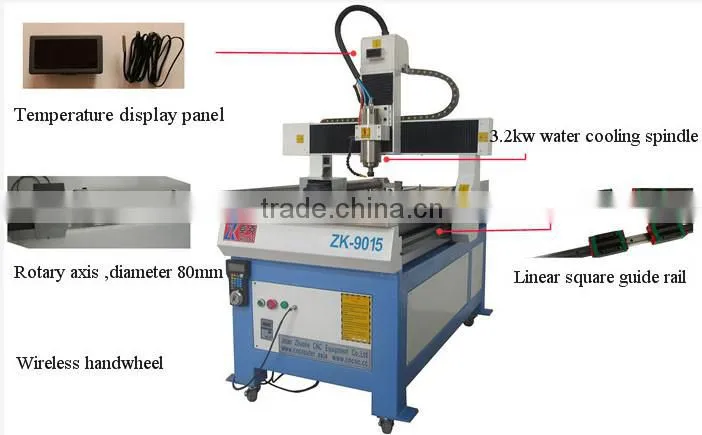

Temperature display panel ;3.2kw water cooling spindle ;Linear square guide rail (Hiwin ,Taiwan) ;Ball screw transmission ;Rotary axis ,diameter 80mm ,length 900mm ;Wireless handwheel
Applicable Industries
Good at in processing all kinds of small workpiece ,widely used in advertising signs ,badges,logo,mould construction
equipment ,mould products ,industrial mold ,etc.
Applicable Materials

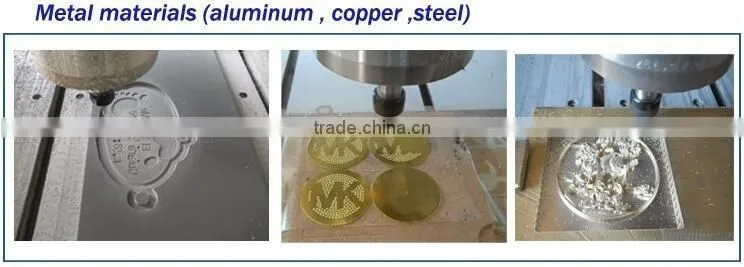

Suitable for all kinds of metal ,such as copper ,aluminum,iron ,stell ,stainless steel ,alloy ,aslo the acrylic,wood ,MDF
double color board ,stone ,jade,etc.
Machine characters
1 Small machine body ,tight ,machine body and gantry whole cast iron or aluminum,the machine stable ,no
deformation ,little shock ,and moving stability
2 Imported high linear square or round guide rail ,ball screw ,the achieve the high pricision engraving
3 Low noise 1.5/2.2/3.2kw water cooling spindle ,high speed rotated (0-24000rpm/min)
4 LED light ,light the working table ,convinent to use
5 Continuing working after the break point/ power failure ,lower the rejection rate
6 Good software compatibility ,can compatible with the Artcam /Type3,/Ucancam/JDPaint such CAD/CAM software ,2D/3D procedding ,more convenient to using
7 Optional control system NCstudio /DSP/Mach3,high stability ,high effifiency ,easy to learn
8 Water cooling system for the metal materials cooling the tools,avoiding the high temperature breaking tools
9 Leadshine Hybird servo motor 86H ,3.7kw Fuling inverter ,220v ,single phase .
Technical Data
Items | Destription | Optional |
Effective working area | 900(X)mm*1500(Y)mm*100(Z)mm (or bigger 120/200mm) | Bigger |
Max.thickness of the materials | ≤200mm(the distance between Z-axis and the bottom of the working station) | higher |
Materials | Square steel tube machine, casr iron gantry |
|
Guide rail | Linear square guide rail | or round |
Transmission | Rack for X Y-axis, ball screw for Z-axis | Whole ball screw tansmission |
Driving mode | Stepper motor | Stepper motor |
Spindle motor | 1.5/2.2/3.2kw water cooling | or air cooling |
Spindle speed | 0-24000rpm/min |
|
Empty traveling speed | 0-60000mm/min |
|
Engraving speed | 0-25000mm/min |
|
Voltage | AC 220V 50/60Hz single phase
|
|
Machine accuracy | 0.05mm |
|
Control system | PCI NcStudio | Mach3 or DSP offline |
Carving Instructions | G code *Uoo *mmg *plt HPGL |
|

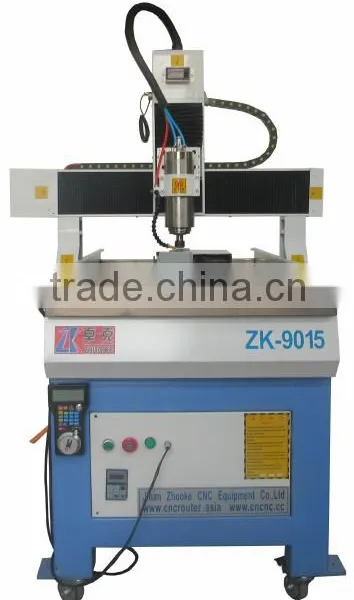

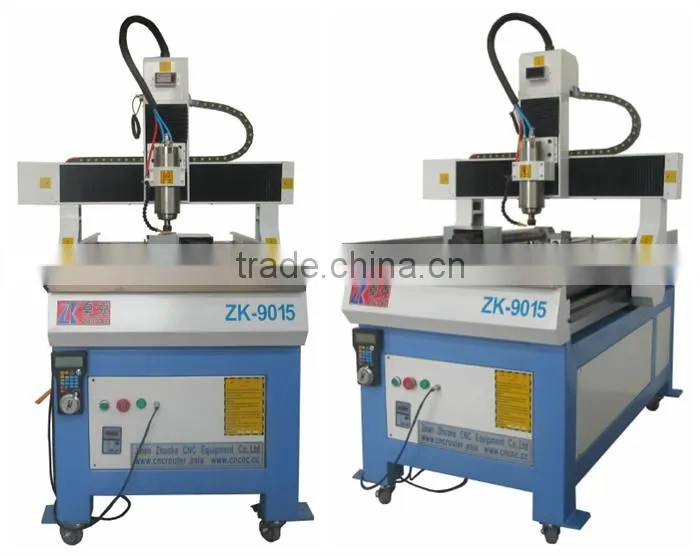

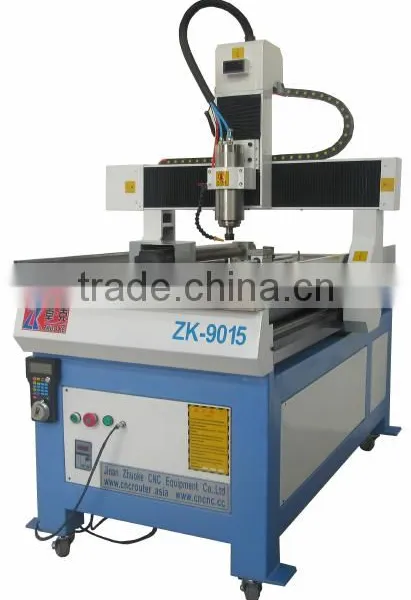

Machine zk-9015

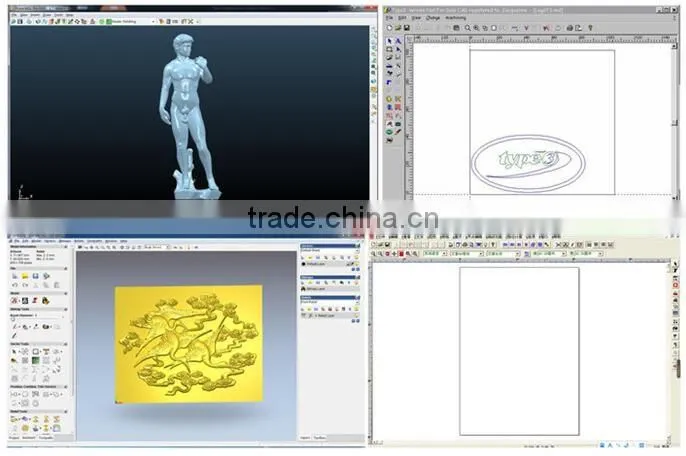

Design software and control system
1.Outside Package:Standard export wooden cases
2.Inner package:strech film
For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.
Jinan ZHUOKE CNC equipment Co.,Ltd is a modern export -oriented enterprise It located in the Jinan city ,SHANDONG province.

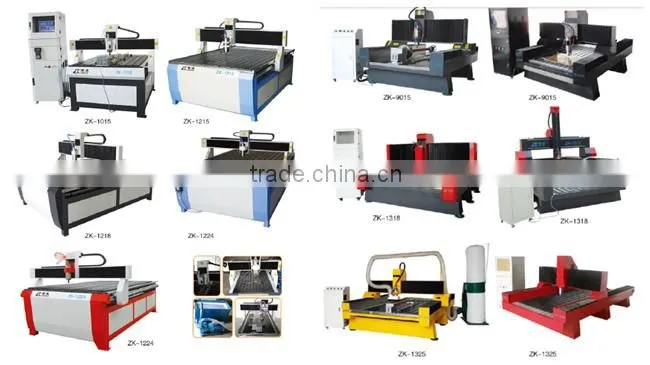

Our products are woodworking CNC router,PCB CNC router ,and laser engraving cutting machine .ZHUOKE series products are widely used in the woodworking advertising ,stone architectural models ,electronics,clothing
and other industries.
Our CNC machine are not only sold to the domestic,but also the Southeast Asia,Africa and so on.
The important thing is our products are excellent in quality and reasonable in price.
1.One year warranty,main parts are free of charge when problems happened during the guarantee period.
2.Life time free maintenance service.
3.Free training course at our factory with professional engineers.
4.We provide the consumable parts at agent price when you need replacement
5.24 hours online service each day,free technical support with English languages.
6.We provide door to door technical support ,if necessary.
