Help CenterZhuoKe CNC 6060 Metal Engraving Machine For Drilling And Milling With 3 Spindle Head Rotary Axis 600*600mm CE Approved ZK-6060
Related Products
-
3 Spindle Head Small Router CNC Engraving Machine 6060 1.5Kw With 3 Rotary Axis 80*600mm CE Approved ZK-6060US$ 1,600 - 2,500MOQ: 1 Set -
4 Axis 6090 Aluminum Cutting Machine Also Can Do Wood Acrylic With 1.5KW Water Cooling Spindle Of Mach3 ControllerUS$ 1,800 - 3,000MOQ: 1 Set
-
Mach3 Controller CNC Engraving Machine For Aluminum Rosewood 600*900MM With Dust Collector To Keep CleanUS$ 1,800 - 3,000MOQ: 1 Set
-
China 4 Axis CNC Router Machine For Aluminum Wood ZK-6090 With 1.5KW Water Cooling Spindle&Dust Collector To Keep CleanUS$ 1,800 - 3,000MOQ: 1 Set
-
Mach3 Controller CNC Router Machine For Aluminum Acrylic Wood ZK-6090 600*900MM With Dust CollectorUS$ 1,800 - 3,000MOQ: 1 Set
3 Spindle Head Small Router CNC Engraving Machine 6060 1.5Kw With 3 Rotary Axis 80*600mm CE Approved ZK-6060
|

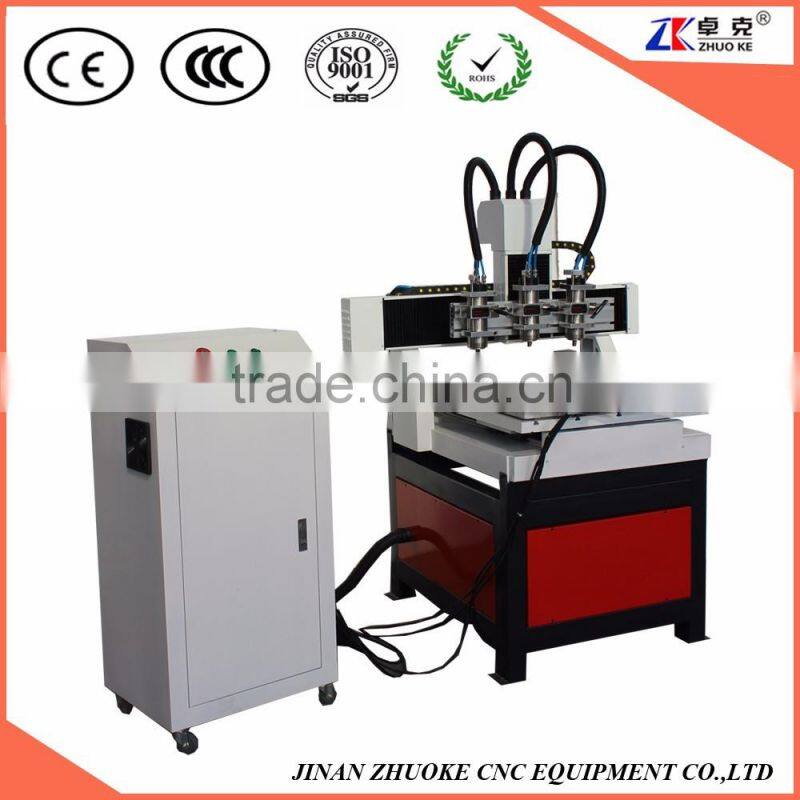

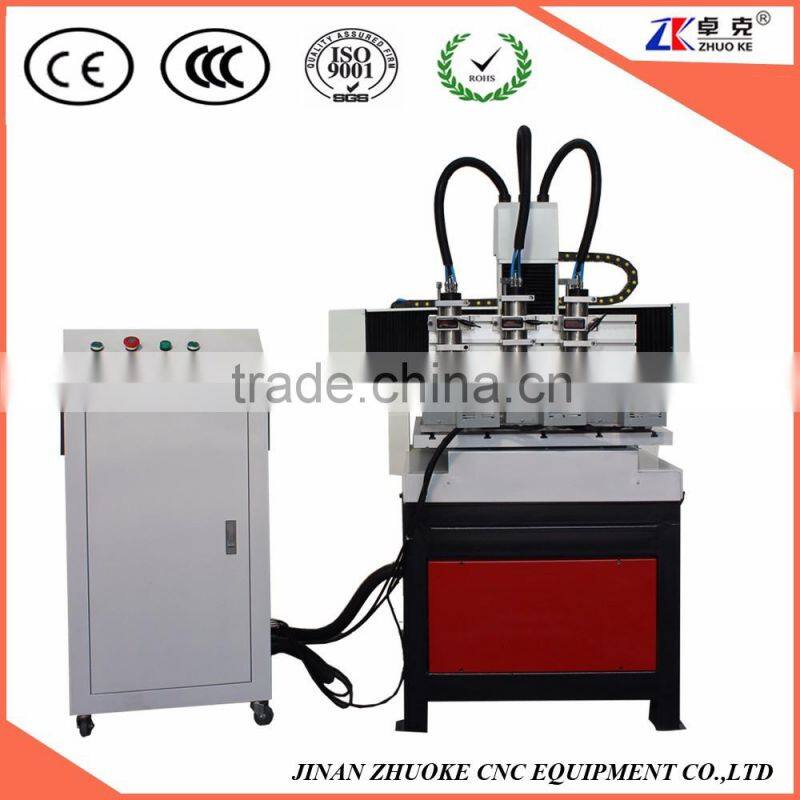

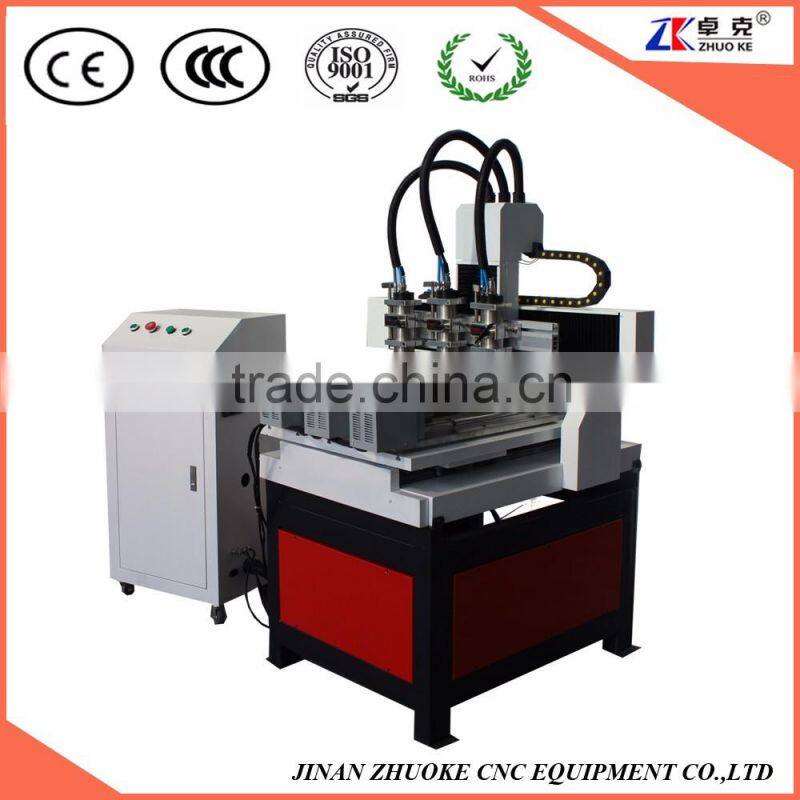

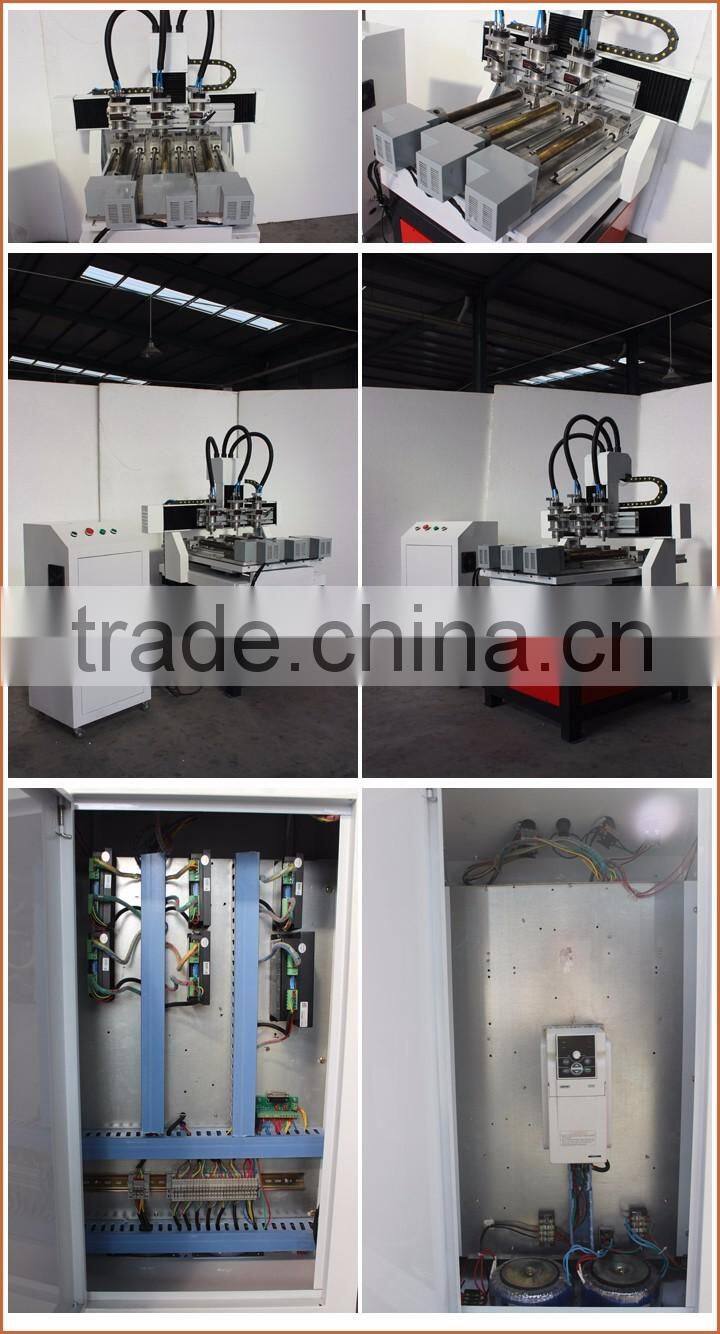

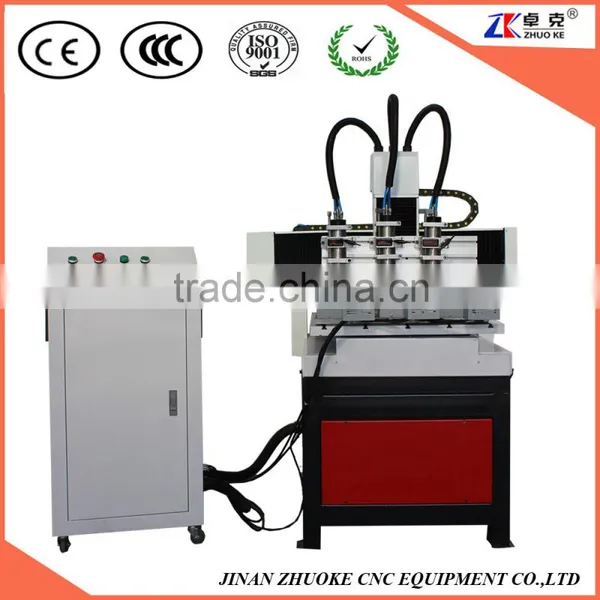

ZK-6060 CNC Router Machine : 600*600*150mm (XYZ) 1.5Kw water cooled spindle *3 Rotary axis *3 , diameter 80mm , length 600mm Hiwin linear square guide rail , Ballscrew transmission Step motor and driver system Table moving system |
Certificate |
CE |
Effective working area |
600(X)mm*600(Y)mm*100/150(Z)mm |
Materials |
Whole cast aluminum |
Working table |
Aircraft aluminium T slot |
Dust proof system |
For X Z-axis |
Guide rail |
Linear square guide rail |
Transmission |
Ball screw for X Y Z-axis ( XY Z-axis: #1605) |
Driving mode |
Stepper motor ( XY Z-axis: 57BYG-311) |
Spindle motor |
1.5/2.2kw kw water cooling |
Spindle collet type |
ER 11/ER20 |
Tools diameter |
3.175mm, 4mm, 6mm, 8mm, 10mm,12.7mm |
Voltage |
AC 220V 50/60Hz, single phase |
Spindle speed |
0-24000rpm/min |
Empty travelling speed |
0-8000mm/min |
Engraving speed |
0-6000mm/min |
Machine accuracy |
0.03mm |
Diagonal error |
1mm |
Resetting accuracy |
0.05mm |
Control system |
DSP offline (A11E) or PCI NCStuido System or Mach3 |
Spindle wire |
Shielding high soft (3*1.5) |
Compatible software |
Artcam, Type3, Ucancam, etc |
Carving Instructions |
G code *Uoo *mmg *plt HPGL |
Running environment temperature |
0-45 °C |
Relative humidity |
30%-75% |
Applicable Industries
Good at in processing all kinds of small workpiece ,widely used in advertising signs, badges, logo, mould construction
equipment, mould products, industrial mold, etc.

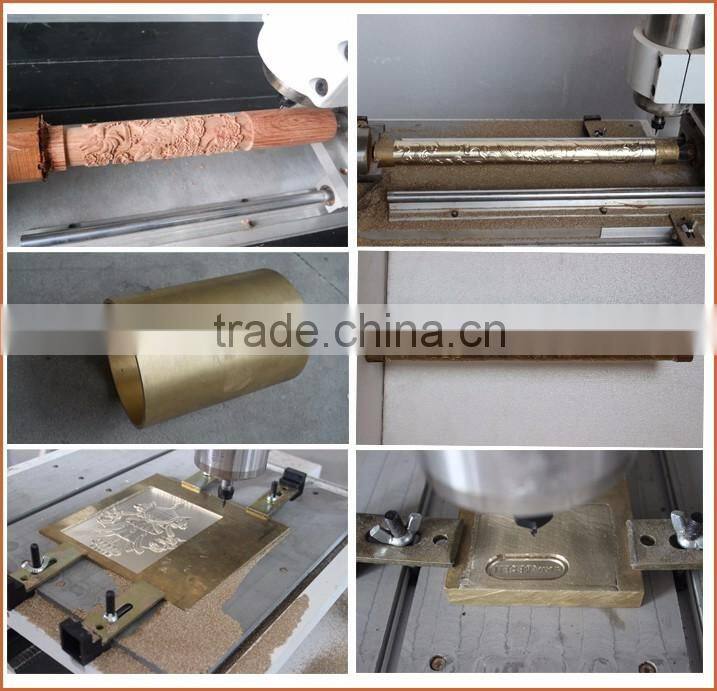

Applicable Materials
Suitable for all kinds of metal, such as copper, aluminum, iron, stell, stainless steel, alloy, also the acrylic, wood,
MDF, double color board, stone, jade, ect.
|

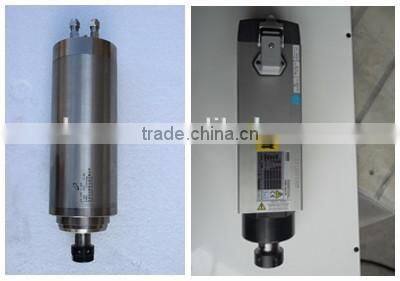

Higher Power Spindle (water cooling / air cooling) |
1.5Kw/2.2kw/3.2kw/4.5kw/5.5kw/6.0kw/7.5kw/9.0kw
|
|

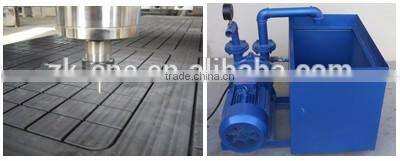

Vacuum Table with vacuum pump using the vacuum adsorption better to fix the different size materials. |
|
|

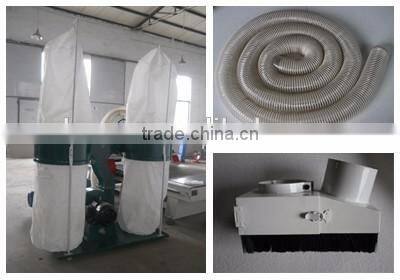

Dust collector help to suck the milling dust |
|
|

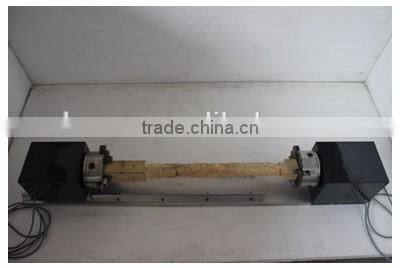

Rotary axis for cylinder materials |
|
|

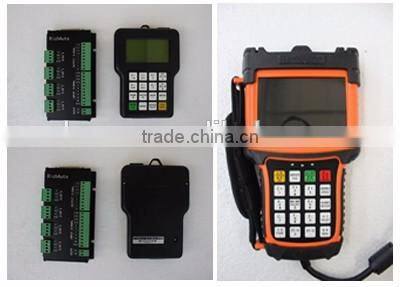

DSP Offline control system can be offline control without computer , has the USB port |
|
