4 Axis CNC Router / CNC Machine MACH3 Control (ZKM-1325B)
Applications
Wood processing, antique furniture, furniture, speakers, games, crafts, wood tray, screen, relief murals and other deep-relie, hard wood, MDF, particle board engraving, milling and cutting.
Stone engraving, for granite, Mongolia black, Dynasty black, Indian red such superhard stone mterials engraving, also can for the glass, tile, marble, marble, blue stone, insulation materials such hard materials engraving
Metal engraving and sheet metal cutting, aluminum, copper, brozen, brass, iron, inox, steel, stainless steel...
Features
1. Whole machine is welded with thick walled steel, Type machine holder and gantry, the stability is effect,
not easy to be deformed.

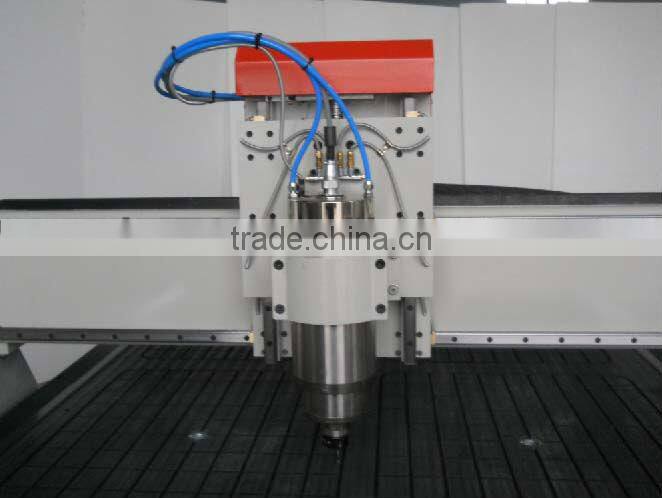

2. 3.0kw water cooling spindle, more powerful, low noise, not easy to break cutters.

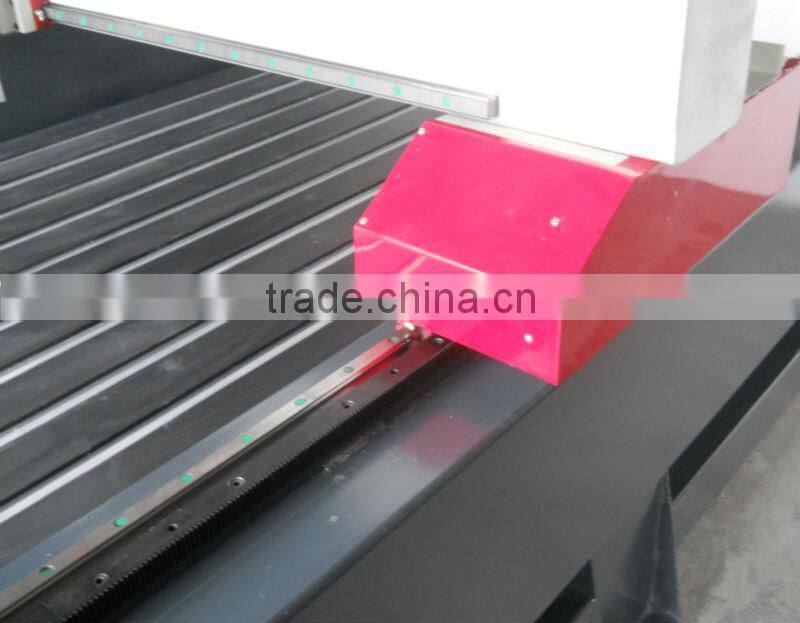

3. Three axis adopt Hiwin, Taiwan high precision diameter 25mm linear square guide rail, X Yaxis uses the rack
and pinion transmission, fast working, high efficiency, Zaxis uses ball screw transmission, high precision
4. Adopting the Mach3 control system with USB port, can for desktop & laptop computer,
windows XP/7 operating system, also has the handhweel for remote control, very conveinet.
5. Rotary axis, diameter 250mm, working length 2500mm
6.Well software compatibility: CAD/CAM designing software, such as Artcam, Type3, Ucancam, JDPaint, Castmate, etc.
Parameters
XY-axis working size |
1300*2500mm |
Max. speed |
25000mm/min |
Z-axis working size |
450mm |
Spindle power |
3KW (water-cooled) |
Driving way |
XY-axis adopt rack, Z-axis adopt ball screw |
Spindle speed |
0-18000rpm/min |
Guideway |
Linear square guideway |
Blade diameter(mm) |
3.175,4,6,12.7mm |
Worktable size |
1320*3040mm |
Driving mode |
Stepper motor |
Max. Feeding height |
>400mm |
Control system |
MACH3 |
Cut thickness material |
≤100mm |
Power source |
AC220V/50HZ or 380V |
Software running environment |
Windows98/2000/xp |
Running circumstance temperature |
0-45°C |
Max. working speed |
12000mm/min |
Relative humidity |
30%-75% |
Resetting accuracy |
0.05mm |
Body dimensions |
3050*1600*1600mm |
Command |
G code,u00,mmg,plt |
Pack dimensions |
3350*1900*1900mm |
Compatible software |
Type 3, Artcut, Artcam |
optional items |
vacuum table ,DSP,dust collector |
Samples display
