Help CenterDIN2391 Mechanical Tubing
Related Products

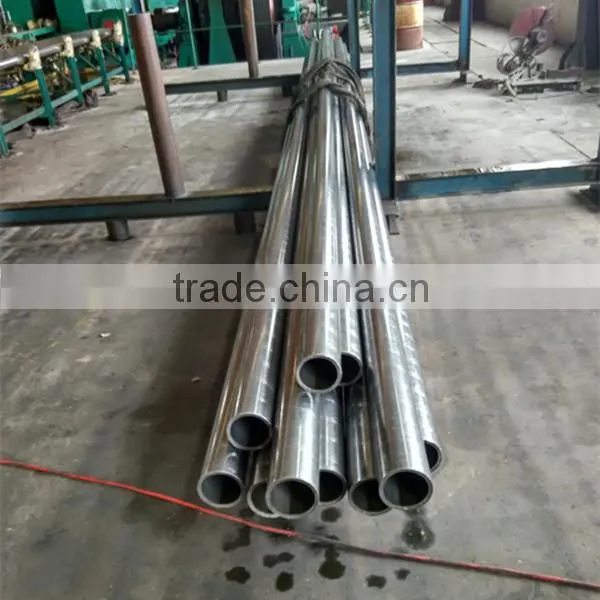

Product: mechanical tubing
Technical specification: Suitable for hydraulic cylinder tube
Grade:20# 45# Q345 25Mn 27SiMn
Tensile strengh: ≥ 600N/mm2
Outer diameter: 30-250mm
Wall thickness: 2-30mm
Elongnation: >15
Package: standard packing with plastic bags or as client's request
Delivery time: within 20-30 days after receiving downpayment or as client's request
Trade terms: FOB Yantai, Qingdao or as client's request
Main Features: high precision, excellent brightness, no oxidization on the outer and inner walls after heat treatment, high cleanness inside wall. The steel tube is able to stand high pressure. No deformation after cold bending, no crack after flaring and flattening .
Main Application:to be used in hydraulic system, automobile and in the occasion where the high precision, brightness, cleanness and mechanical properties of the tube are required
Process
Equipped with JLB250T hydraulic cold drawn set, LD120 cold rolling set, annealing furnace, strong honed machine, polising machine,lathe,saws CNC skived and roller burnished machine, kinds of testing machine.
Mechanical Property
Delivery Condition |
Cold drawn+stress-relieved(BK+S)(SR) |
Cold finished(hard)(BK) |
|||
Steel Grade |
Tensile strength (Rm Mpa)
|
Yield strength (ReH Mpa)
|
Elongation A5% |
Tensile strength (Rm Mpa)
|
Elogation A5%
|
20# |
≥520 |
≥375 |
≥15 |
≥550 |
≥8 |
45# |
≥600 |
≥520 |
≥10 |
≥640 |
≥5 |
16Mn(Q345B Q345D) |
≥600 |
≥520 |
≥14 |
≥640 |
≥5 |
25Mn |
≥600 |
≥510 |
≥15 |
≥640 |
≥5 |
27SiMn |
≥760 |
≥610 |
≥10 |
≥800 |
≥5 |
St45 |
≥520 |
≥375 |
≥15 |
≥550 |
≥5 |
E355(St52) |
≥600 |
≥520 |
≥14 |
≥640 |
≥5 |
SAE1026 |
≥600 |
≥510 |
≥15 |
≥640 |
≥5 |
Application
Widely used in hydraulic system with precision steel tube, injection molding machine with precision steel tube, hydraulic press with precision steel tube, shipbuilding with steel tube, EVA foaming, hydraulic machinery, hydraulic cutting machine, shoe making machinery, hydraulic equipment, high pressure tubing, hydraulic tubing, card sets of joints, pipe joints, rubber machinery, forging machinery, casting machinery, engineering machinery, automotive high pressure steel pipe concrete pump, sanitation vehicle, automobile industry, shipbuilding industry, metal processing, and other field.
FAQ
Q1.What do you want to purchase ?
What we can offer are cold drawn seamless tubes,cold drawn welded tubes (DOM tubes)
Q2.Do you have the target price ?
Generally ,we have the target price when we buy something ,which is good for both supplier and
customer ,at the same time ,the target price should be objective ,reflecting the market.
Q3.What factors have an effect on the price ?
1 The market. our price rise and fall accompany with the market
2 The material and the grade .Different materials sometimes mean hundreds dollars.
3 The sizes. generally ,the thinner is more expensive because of the manufacture difficulty
Waiting for your contact!
