Specifications
1.Cylinder CNC Router2.For square , round ,cylinder materials
3.Square guideways
4.3.0kw spindle power
5.Passed CE

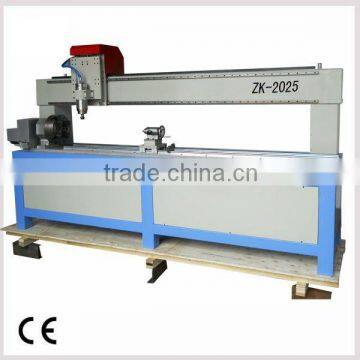

Cylinder Engraving Machine CNC Router
ZK-2025(OEM)
Features :
1. Simple operation and installation, when delivery we will provide the videos for training.
2. More steady and strong with whole cast iron material.
3. Specially designed 4 supporting point rotary axis, can not only for cylindrical materials , but also square materials.
3. Can be controlled by computer, showing the processing path and estimated processing time.
4. Hiwin square guide rail, long life time and high precision.
5.Eergency stop button enhance security.
6. Function of re-carving after break point and power off, reducing the materials wasting.
7. Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,Artcut engraving software, Coredraw, etc.

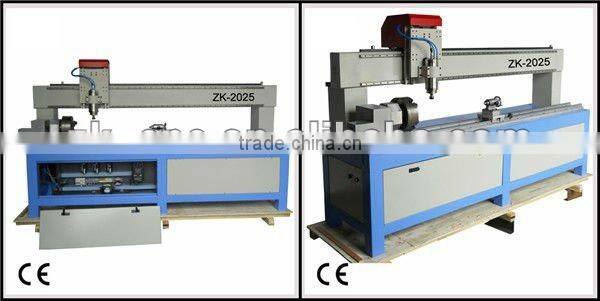

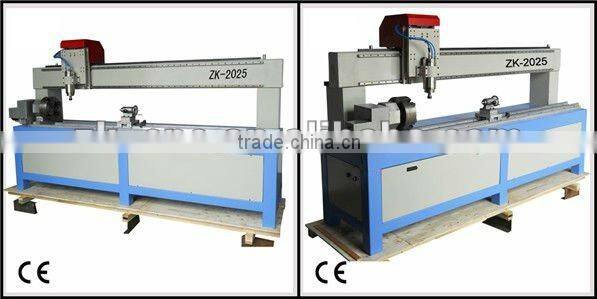

Referrence Machine Pictures :
Control Cabinet :
Rotary axis Fixture Clamp:
3.0Kw Spindle
Technical Data :
Items | Description | Items | Description |
Diameter of rotary axis | 250mm | Engraving command | Gcode Uoo.mmg.plt |
Working length | 2000mm | Software operating ambient | Windows2000/XP |
Transmission | X,Y axis—rack Z axis—guide screw | Spindle power | 3.0kw(water-cooling) |
Guide way | Linear square guider | Spindle speed | 0-24000rpm |
Total power | 3.5kw | Milling cutter | 3.175,4,6,8,10,12.7mm |
X,Y,Z-axis structure | XY-axis :rack Z-axis: screw | Driving system | Stepper motor |
Biggest feeding height | >200mm | Control system | PCI NcStudio control system |
Biggest travelling speed | 25000mm/min | Power supply | AC220V 50/60Hz or AC380v 50/60Hz |
Biggest engraving speed | 12000mm/min | Repeated accuracy of positioning | 0.05mm |
Compatible software | TYPE3, ArtCAM , Ucancam V9,etc | Diagonal error | 1mm |
Applications :
The Computerized cylinder cnc router is mainly used for cylindrical materials ,specially designed for square materials, furniture,instrument, cane, engraving and cutting, such as, wood, acrylic, organic glass, metal, stone,…
Package :
Working Samples :
If you have any questions about our machine , just feel free to contact our company !
(Jinan Zhuoke CNC Equipment Co.,Ltd.)
