Cylindrical CNC Router (ZK-2012)

Jinan Zhuoke CNC Equipment Co., Ltd.

US$ 3,500 - 10,000 MOQ: 1 Set

Key Specifications

Condition:

New

CNC or Not:

CNC

Place of Origin:

Shandong, China

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

CNC or Not CNC

Place of Origin Shandong, China

Brand Name ZK

Model Number 2012

Voltage 380v

Power(W) 3.7kw

Dimension(L*W*H) 167*81*165cm

Weight 450kg

Certification CE SGS

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

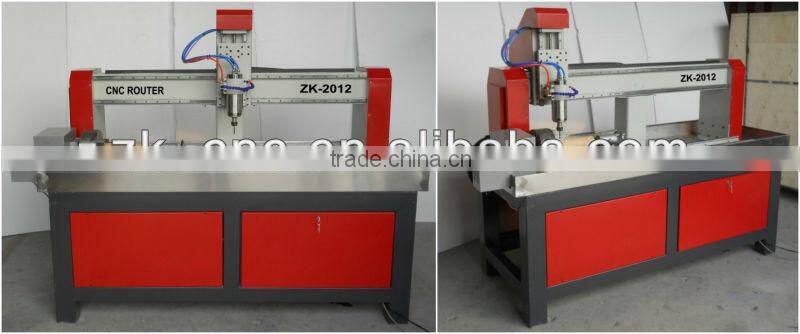

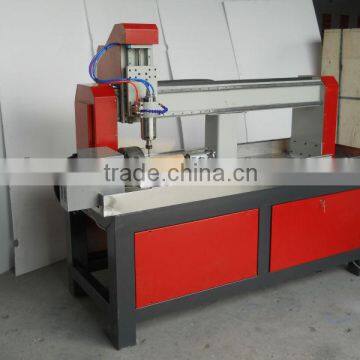

Cylindrical CNC Router for Wood Metal Stone ZK-2012

Machine features

1.High temperature tempering treatment, high rigidity, bearing strength better

2.Can be controlled by computer, showing the processing path and estimated processing time.

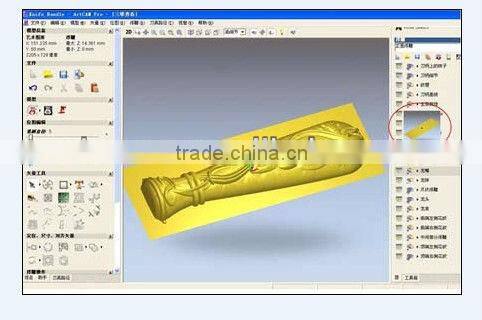

3.Good software compatibility, suitable for Type3, Artcam, Castmate, UcanamV9, etc.

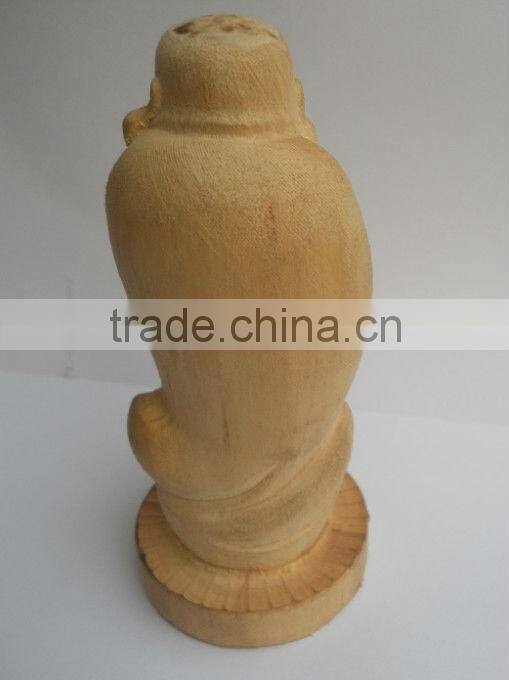

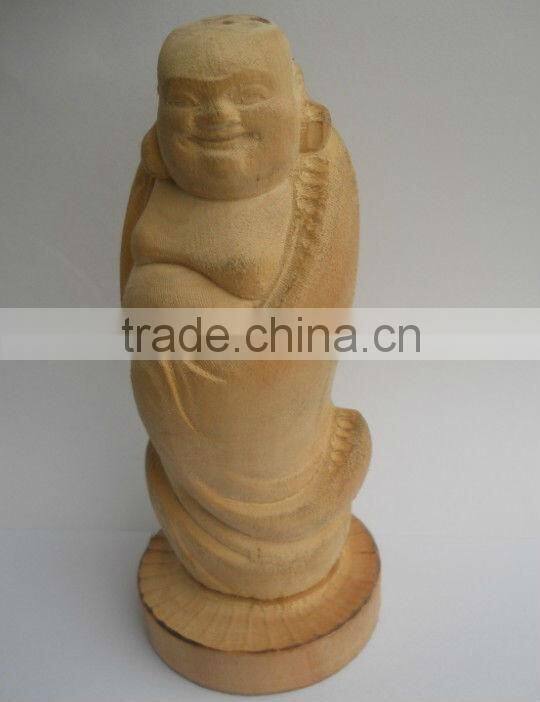

4.Applicable to 2D 3D engraving , for wood ,metal ,stone ,acrylic ,mdf ..

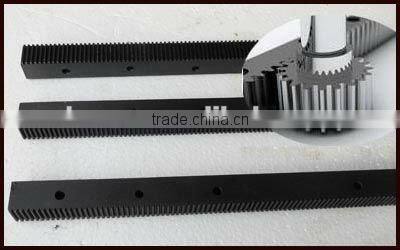

5.High precision rack and pinion transmission, fast speed.

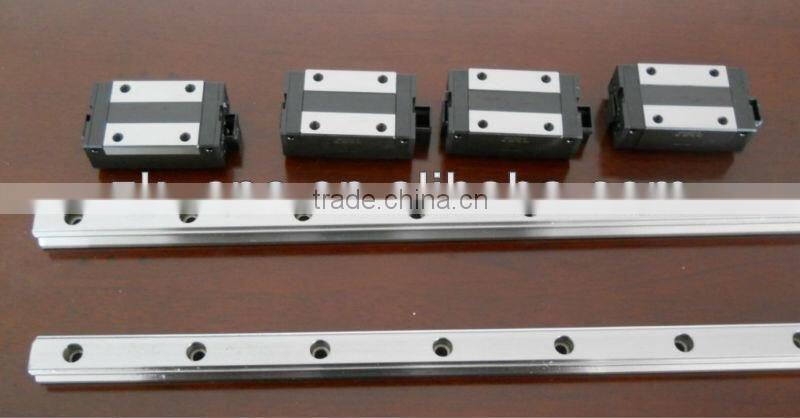

6. Imported linear square guide way, double row four row slider, high precision, long life time.

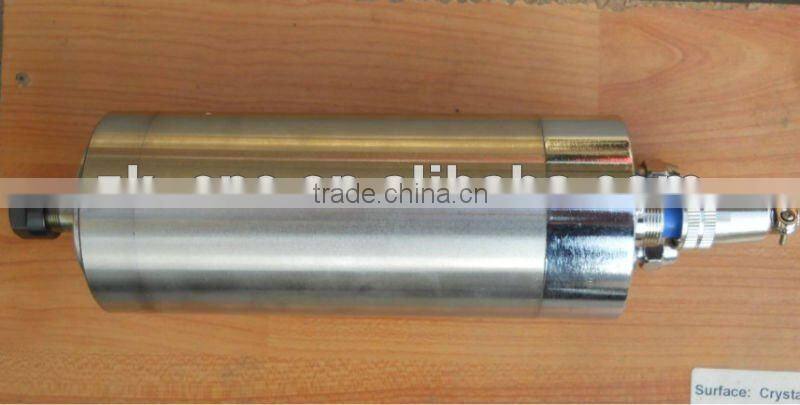

7.3kw water cooling spindle, more powerful, low noise, not easy to break cutters.

8.Simple operation and installation, when delivery we will provide the videos for training.

Technical parameters

Items	Description	Optional

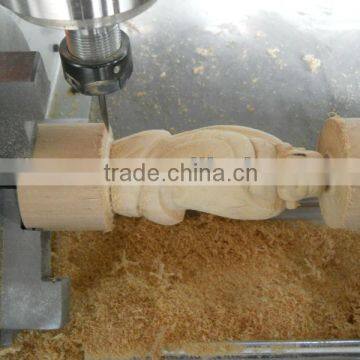

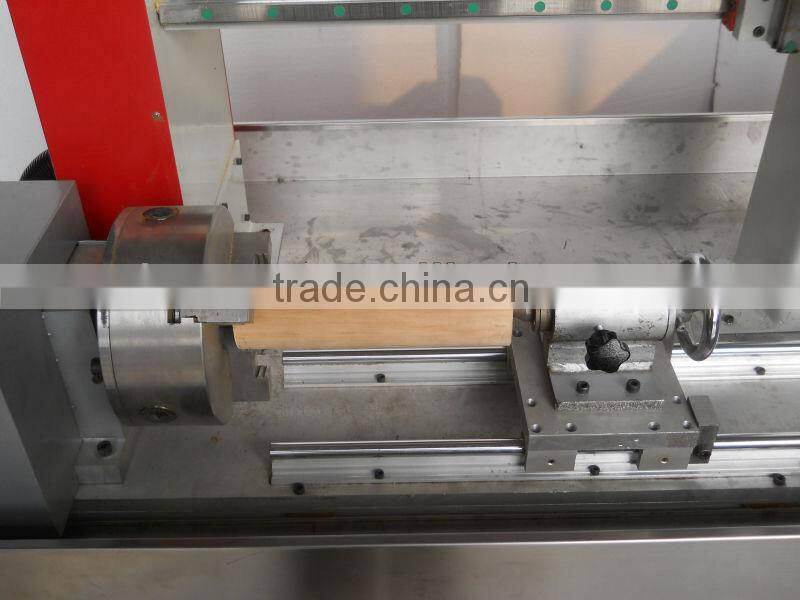

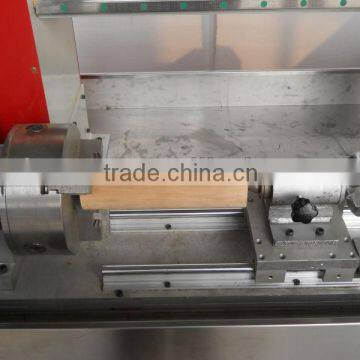

Rotary axis diameter	200mm	Or larger
Effective working length	1200mm	Or longer
Materials	Cast iron machine bed, cast aluminum gantry	Whole cast iron
Guide rail	Linear square guide rail
Transmission	Rack for X Y-axis, ball screw for Z-axis
Driving mode	Stepper motor	Or servo motor
Spindle motor	3.0kw water cooling	3.0kw/5.5kw or air cooling
Spindle speed	0-24000rpm/min
Empty traveling speed	0-60000mm/min
Engraving speed	0-25000mm/min
Voltage	AC 220V 50/60Hz or AC 380V 50/60Hz
Resetting accuracy	0.05mm

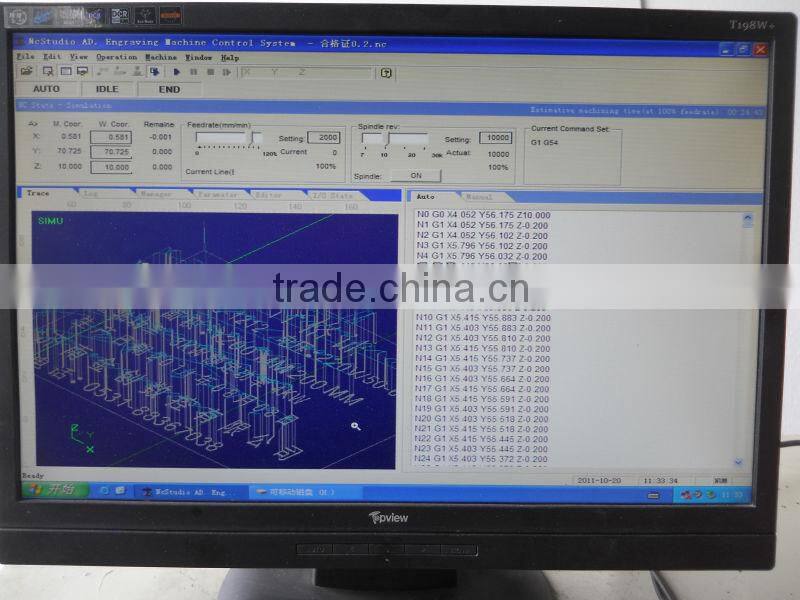

Control system	PCI NcStudio	Or DSP offline or MACH3
Carving Instructions	G code Uoo mmg *plt HPGL
Software environment	Windows 2000 / XP
Running environment temperature	0-45°C
Relative humidity	30%-75%
Packing size	185012001900mm
Gross weight	450kg
