furniture CNC router for wood 1300*2500mm
- 220 Set / Sets per Month
- Qingdao Shanghai
- Credit Card PayPal
- engraving cnc router,1325 woodworking cnc router 1300*2500*200
- engraving and milling machine,1325 woodworking cnc router 1300*2500*200
- engraver router,1325 woodworking cnc router 1300*2500*200
- dsp control cnc machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router machine,1325 woodworking cnc router 1300*2500*200
- cnc woodworking router,1325 woodworking cnc router 1300*2500*200
Product Details
Condition: | New | CNC or Not: | CNC | Place of Origin: | Shandong, China |
Brand Name: | ZK | Model Number: | ZK-1325A | Voltage: | 220V |
Power(W): | 800W | Dimension(L*W*H): | 3100*1750*1500mm | Weight: | 850kg |
Certification: | CE | Warranty: | 1year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications

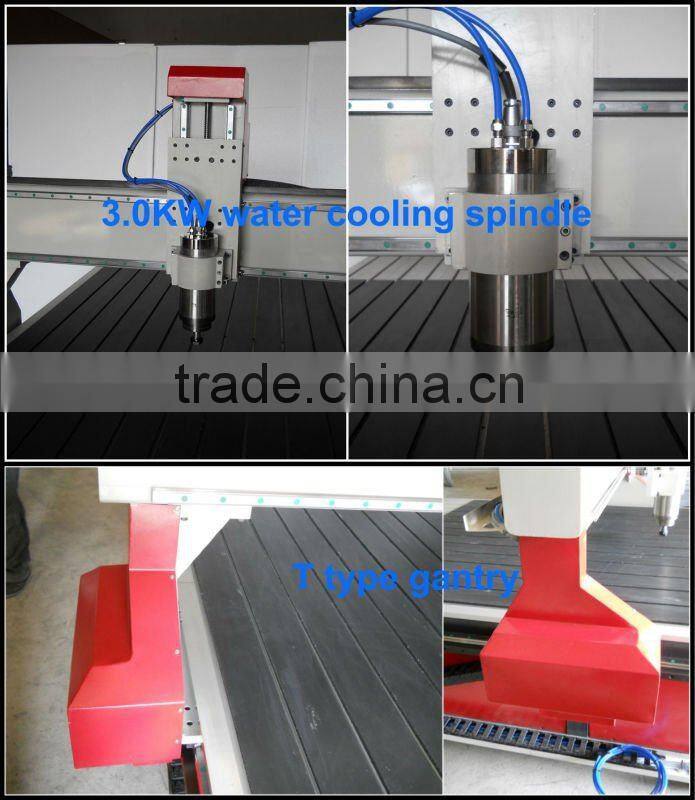

best design for machine electricityrack and pinion transmission
linerar round guide rail
3.0kw spindle motor
Technical parameters:
Items | Description | Optional |
Effective working area | 1300(X)mm*2500(Y)mm*200(Z)mm | Bigger |
Max.thickness of the materials | ≤200mm(the distance between Z-axis and the bottom of the working station) |
|
Milling cutter | 3 4 6 12.7 | |
Z-axis working area | 150mm | |
Power(without spindle) | 800W | |
Materials | Square steel tube machine bed, Cast aluminum gantry |
|
Guide rail | Linear round guide rail | Or linear square guide rail |
Transmission | Rack for X Y-axis, ball screw for Z-axis | Whole ball screw transmission |
Driving mode | Stepper motor | Servo motor |
Spindle motor | 3.0kw water cooling | Or 5.5kw air cooling |
Spindle speed | 0-24000rpm/min |
|
Empty traveling speed | 0-30000mm/min |
|
Engraving speed | 0-18000mm/min |
|
Voltage | AC 220V 50/60Hz, single phase or AC 380V 50/60Hz, three phase |
|
Resetting accuracy | 0.05mm |
|

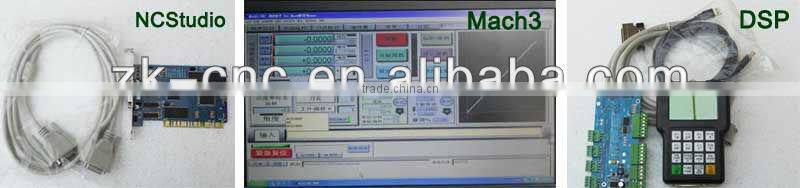

Control system | NcStudio | DSP offline or MACH3 |
Carving Instructions | G code *Uoo *mmg *plt HPGL |
|
Compatible software | Artcam, Type3, Ucancam, JDpaint, Castmate, such CAD/CAM design software |
|
Machinery Dimension | 3060*1750*1500mm | |
Packing size | 3200*1860*1750mm |
|
Gross weight | 1300kg |
|
Features:
1.Square steel tube machine type, good stability, not easy to deformation.
2.Fast speed rack & pinion transmission , linear round guide rail, double row four lines ball slide, loading capacity,working stability, high precision, long life time.
3.Double stepper motor for Y-axis, selected pairing,ensure the smooth movement.
4.Best design for machine electricity, famous brand electrical equipment parts, let the failure rate to minimum.
5.3.0kw spindle motor, more powerful, not easy to break cutters.
6.Six partitions vacuum table, can be effective for the adsorption of different size plates.
7.Good compatibility: can compatible for CAD, CAM, Type 3, Artcam, Castmate, Ucan cam...
8.Memory method after break point and power off, avoiding the materials wasting, improving the working efficiency.
9.ZK1325A is an artful product with strong functions, can be used widely and conveniently, and the price is reasonable.
Application Industry:
Widely used in woodworking industry, door, cabinets, kitchen utensils, chairs, decoration business, mould industry, wood panel, wave board processing, MDF sheet carving, screen, calligraphy tablet design , relief, wood or bamboo furniture, computer tables, panel furniture, office furniture, instrument industry, and so on.
Also can for advertising signs, acrylic brands, 3D characters,
garden or wall decoration, logo, forming system module, billboard, plate, LED/neon channel, literal-hole cut, blister Light box mold…
Samples :
If you have any need, please contact us, thank you very much!
