Specifications
Advertising cnc cutting machinecast aluminum gantry
1.5kw water cooling
stepper motor
linear square guide rail

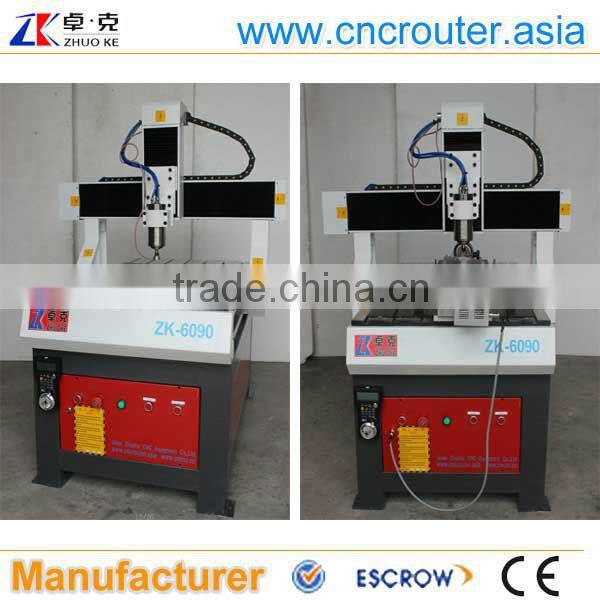

woodworking cnc router with rotary axis ZK-6090
Features
1.Cast iron machine bed, good stability, not easy to deformation.

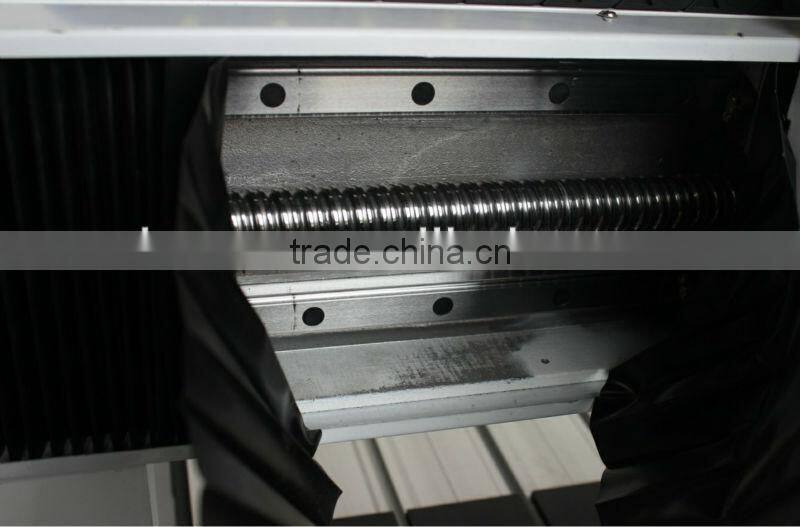

2.Imported ball screw for X Y Z-axis and linear square guide rail,working stability, high precision, long life time

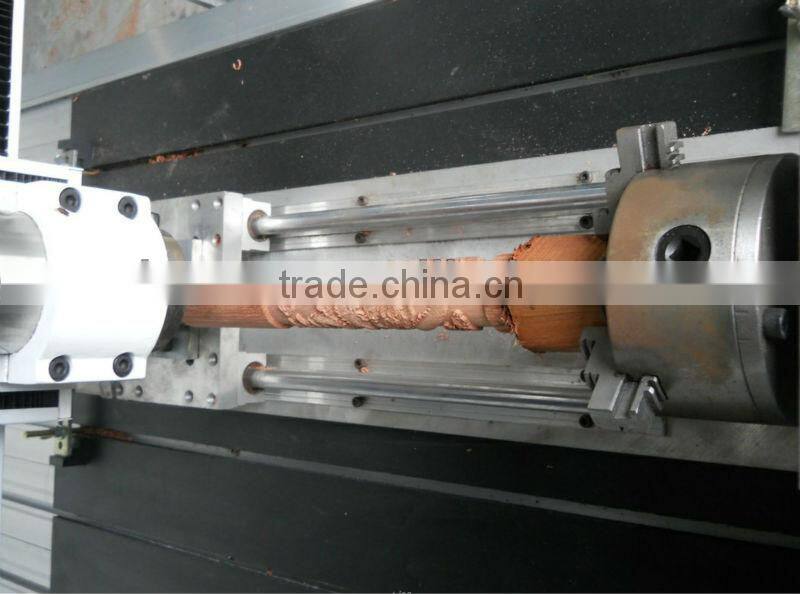

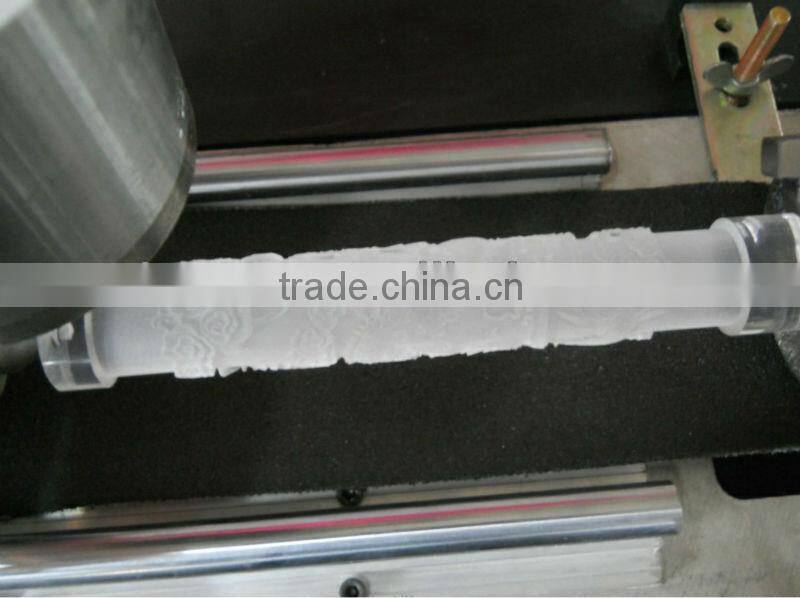

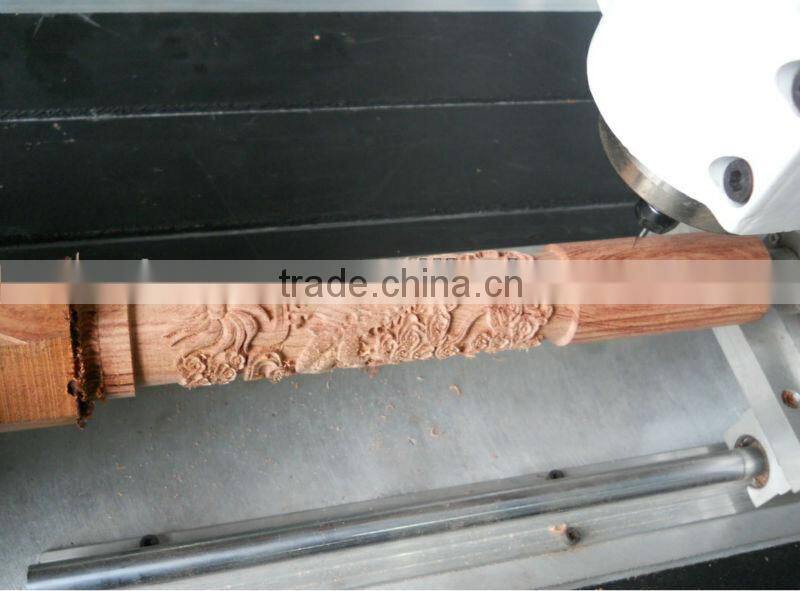

3.Rotary axis for cylindrical materials..

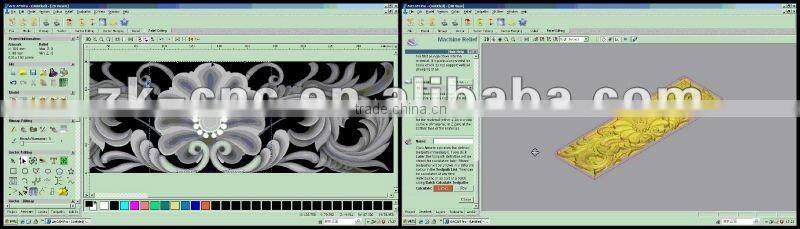

4.Good compatibility: can compatible for CAD, CAM, Type 3, Artcam, Castmate, Ucancam...
5.Memory method after break point and power off, avoiding the materials wasting, improving the working efficiency.
6.ZK6090 is an artful product with strong functions, can be used widely and conveniently, and the price is reasonable.It is widely applied in various industries such as advertisement decoration, sign making, label industry, woodworking, mold manufacturing, architectural model, marble carving, metal signs as well as art crafts and gifts industry. And can engrave many kinds of metal or nonmetal materials, such as copper, aluminum, iron, stainless steel. Steel, wood, MDF,acrylic, PVC, plastic...

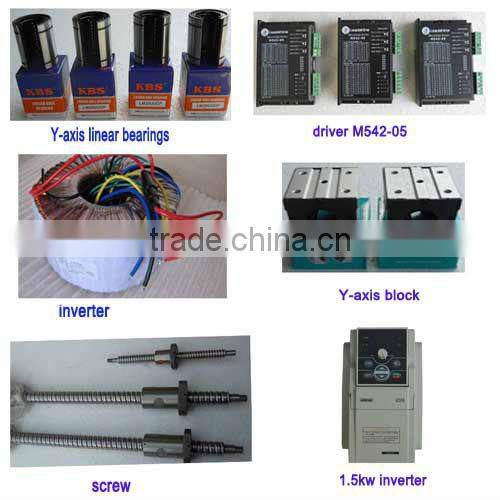

machine fittings
Technical parameters
Items | Description | Optional |
Effective working area | 600(X)mm*900(Y)mm*120(Z)mm | |
Max.thickness of the materials | ≤120mm(the distance between Z-axis and the bottom of the working station) | Higher Z-axis/feeding height |
Materials | Cast iron machine bed, cast aluminum gantry | |
Water cooling system | Stainless steel water slot(optional) | |
Working table | Aircraft aluminum T slot | |
Guide rail | Linear square guide rail | Linear round guide rail |
Transmission | Ball screw for X Y Z-axis | |
Driving mode | Stepper motor | Servo motor |
Spindle motor | 1.5kw water cooling | Or 2.2/3.0kw or air cooling spindle |
Spindle speed | 0-24000rpm/min | |
Empty travelling speed | 0-8000mm/min | |
Engraving speed | 0-6000mm/min | |
Resetting accuracy | 0.05mm | |
Control system | PCI NcStudio | Or DSP offline or MACH3 |
Carving Instructions | G code (*Uoo *mmg *nc) | |
Voltage | AC 220V 50/60Hz | Or according to your need |
Packing size | 1500*1200*1630mm | |
Gross weight | 370kg |

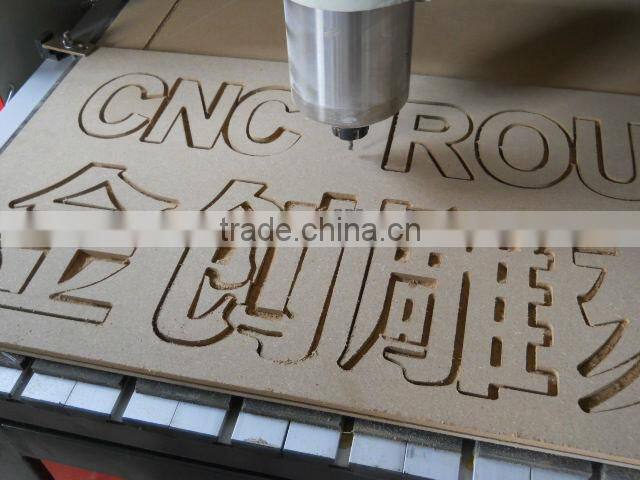

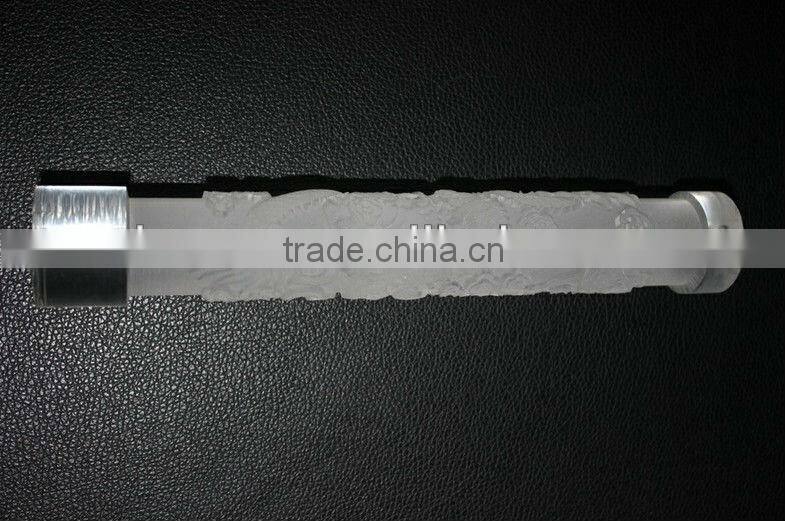

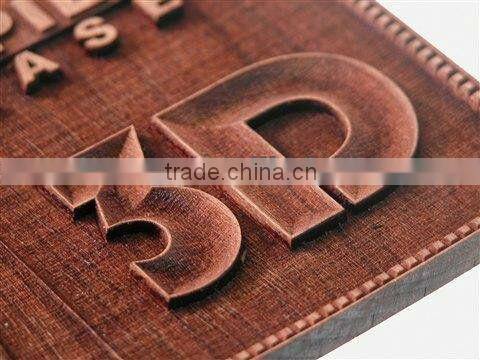

Samples
Guarantee and After Sales Service
1.One year warranty,main parts are free of charge when problems happened during the guarantee period.
2.Life time free maintenance service.
3.Free training course at our factory with professional engineers.
4.We provide the consumable parts at agent price when you need replacement
5.24 hours online service each day,free technical support with different languages.
6.We provide door to door technical support ,if necessary.
Other models you maybe interested in
ZK-3030 300*300mm ZK-4040 400*400mm ZK-6060 600*600mm
ZK-9012 900*1200mm ZK-1212 1200*1200mm ZK-1212 1200*1500mm
ZK-1224 1200*2400mm ZK-1325 1300*2500mm ZK-2030 2000*3000mm
For further details, please feel free to contact us!
