Lower price Artcam design software 1.5kw spindle metal cnc cutting engraving machine 6090

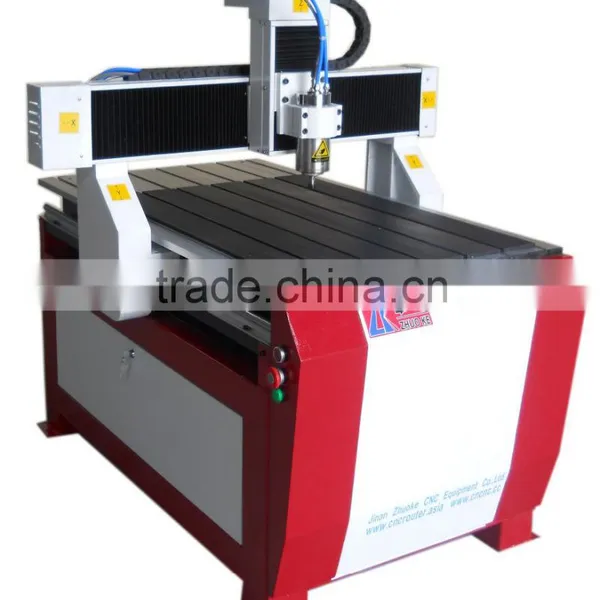

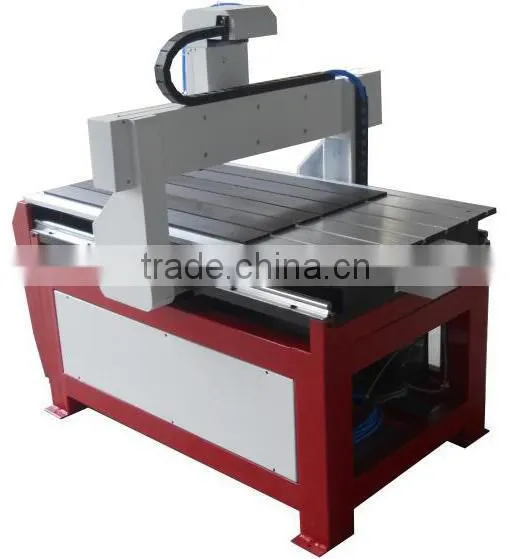

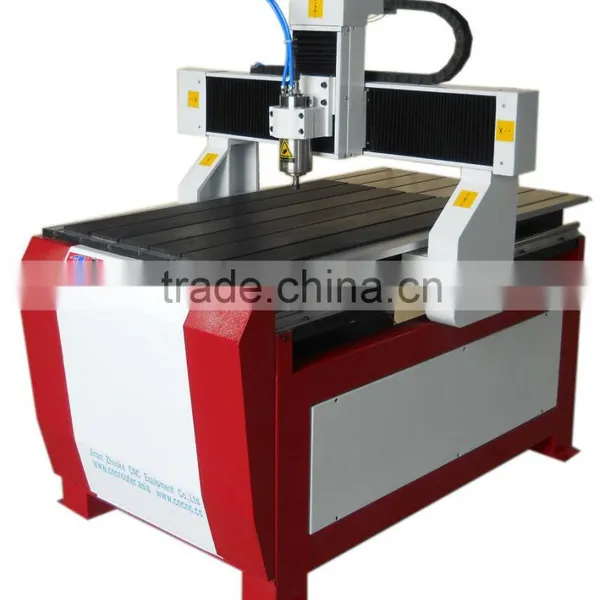

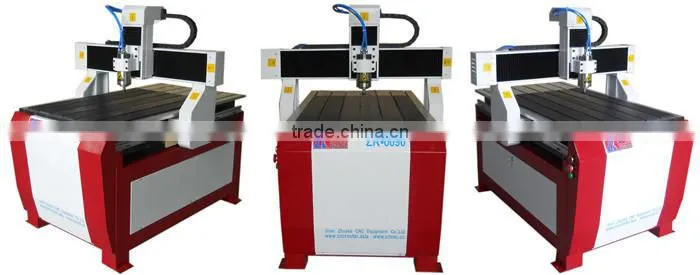

Machine Pictures
1.5kw water cooling spindle ; cast iron machine bed ,cast aluminm T slot ;Linear round guide rail ;pci ncstudio control system ,Stepper motor ;ball screw transmission ;stainless steel water
slot;
Applicable Materials

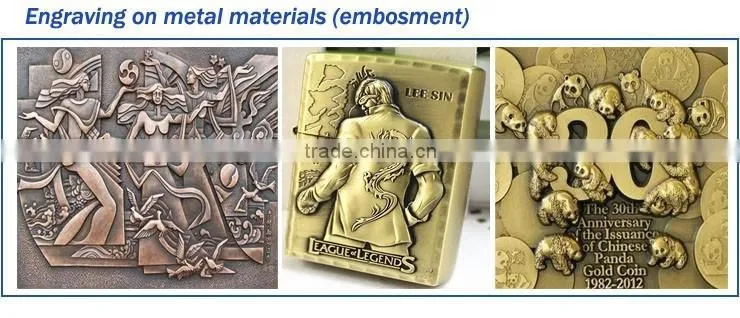

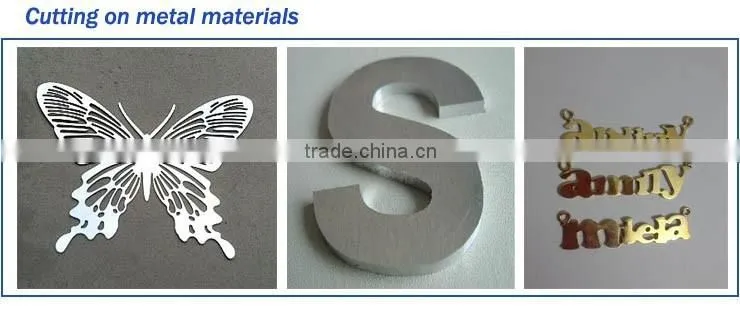

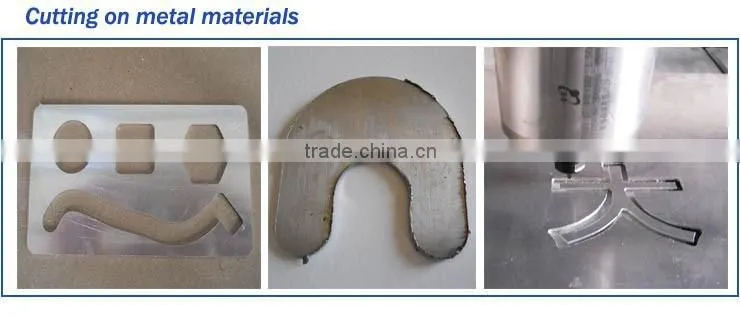

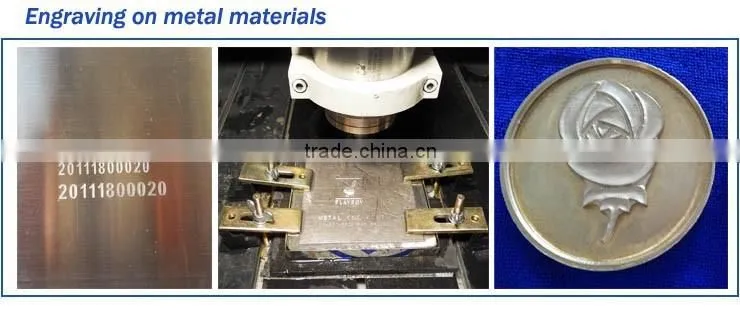

Suitable for all kinds of metal ,such as copper ,aluminum ,iron ,alloy ,also the acrylic ,wood MDF,double color
board,stone ,jades,etc.
Machine characters
1 Body small ,tight ,cast iron machine bed ,cast aluminum machine gantry ,stable .
2 Imported high quality ball screw transmission ,square guide rail .
3Low noise1.5kw water cooling spindle ,high rotated speed ,can realize only diameter 0.1mm tools engraving on
the hardness
4 Auto tool calibration help you to set the tools ,not break the tools nose,ensuring the workpiece high precision processing
5 Water cooling system for the metal materials ,cooling the tools ,avoiding the high temperature breaking
tools
6 Optional control system ,NcStudio /DSP /Mach3 ,high stability ,high efficiency ,easy to learn
7 Aircraft aluminum T slot working table with PVC board .
8 Good software compatibility ,can compatible with the Artcam /Type3/Ucancam/JDPaint/ such CAD/CAM software ,2D/3D processing,more convenient to using
Machine configuration
Machine |
ZK-6090 |
Materials |
Cast iron machine bed ,cast aluminum gantry |
Effective working area |
600*900*120mm |
Moving type |
Gantry moving |
Working table |
Aircraft aluminum T slot |
Guide rail |
Linear square guide rail or linear round guide rail |
Transmission |
Ball screw |
Driving mode |
Stepper motor |
Spindle motor |
1.5/2.2/3.2 water cooling spindle |
Collect type |
ER11/20 |
Suitable tools diameter |
3.175/4/6/8/10/12.7mm |
Voltage |
AC220V 50/60Hz,single phase |
Spindle speed |
0-24000rpm/min |
Control system |
PCI NcStudio |
Design software |
Artcam /Ucancam /JDPaint/TYPE 3 |
Optional items |
DSP/Mach3/original NcStudio control system ,air cooling spindle Vacuum table ,dust collector ,computer cabinet ,rotary axis ,water cooling system ,servo motor .etc |
1.Outside Package:Standard export wooden cases
2.Inner package:strech film
For shipping,you can choose the sea shipping,air shipping or the transmission of expressage:DHL/TNT/Fedex.
1.One year warranty,main parts are free of charge when problems happened during the guarantee period.
2.Life time free maintenance service.
3.Free training course at our factory with professional engineers.
4.We provide the consumable parts at agent price when you need replacement
5.24 hours online service each day,free technical support with English languages.
6.We provide door to door technical support ,if necessary.
