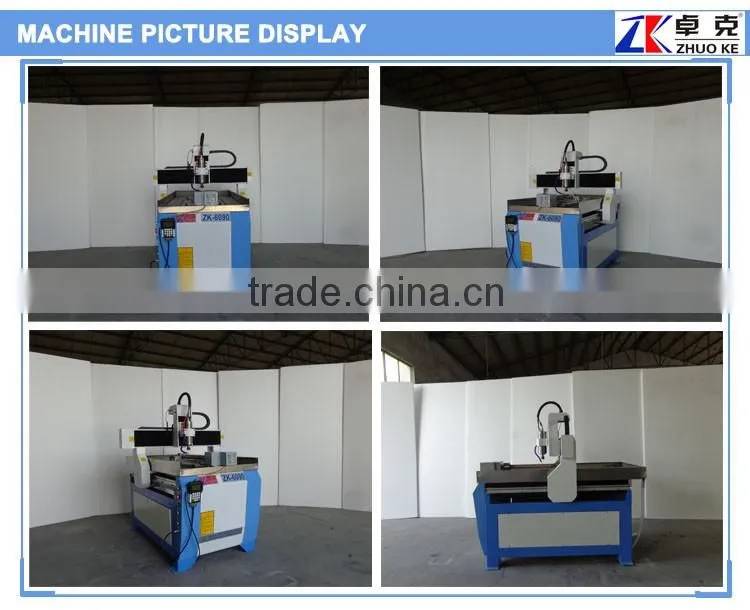

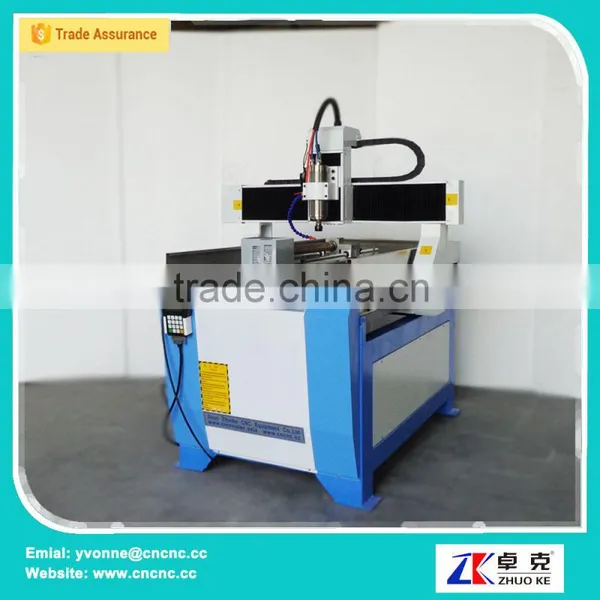

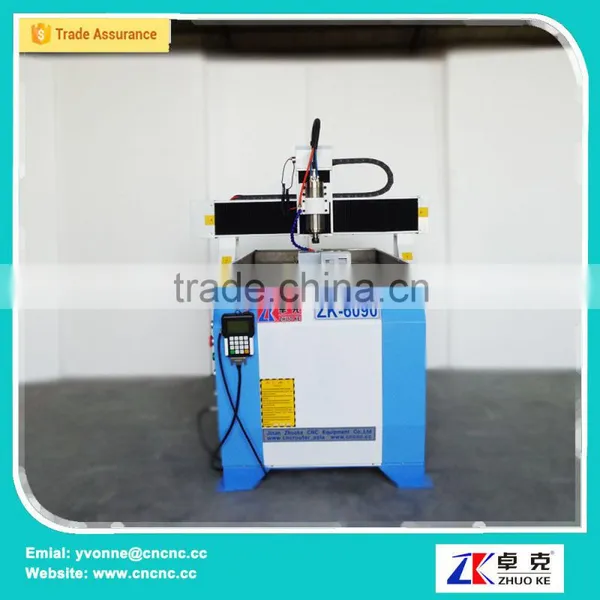

Jinan Zhuoke small cnc router epoxy resin cutting machine 6090 with USB controller Fuling inverter
Items |
Basic configuration |
Certificate |
CE |
XY-axis working area |
600*900mm |
Material |

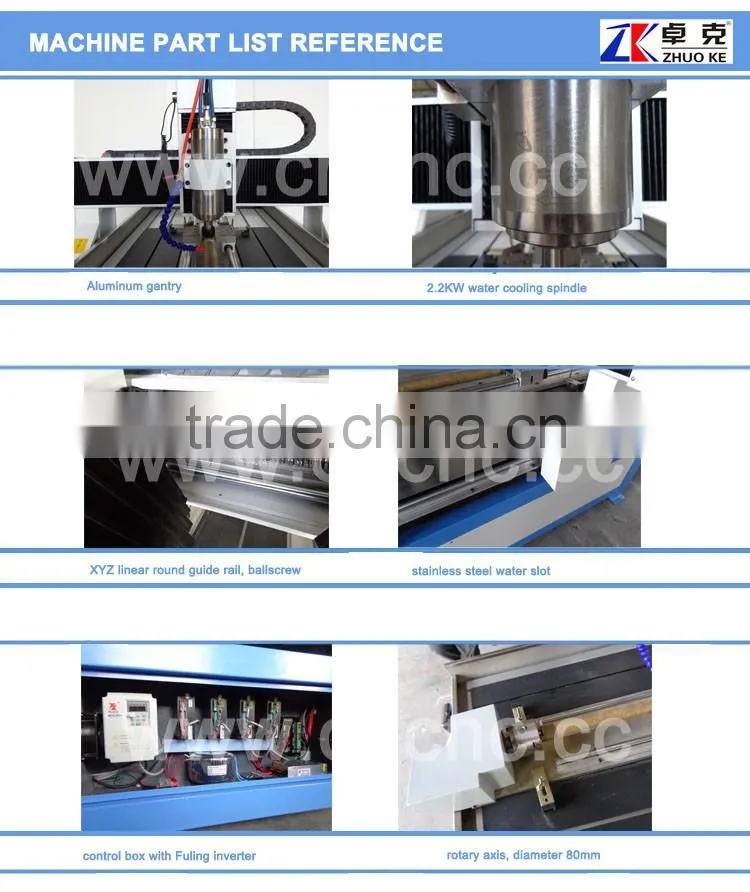

Cast iron machine bed, cast aluminum gantry |
Moving way |
Gantry moving |
Working table |
Aircraft aluminum with T slot |
Guide way |
XYZ-axis linear round guide rail |
Driving mode |
XYZ-axis ball screw(XZ:1605,Y:2510) |
Z-axis working area |
150mm |
Max traveling speed |
8000mm/min |
Engraving speed |
6000mm/min |
Mechanical precision |
0.05mm |
Driving method |
Stepper motor(XYZ:86BYGH450A) |
Water cooling system |
Water pump for spindle |

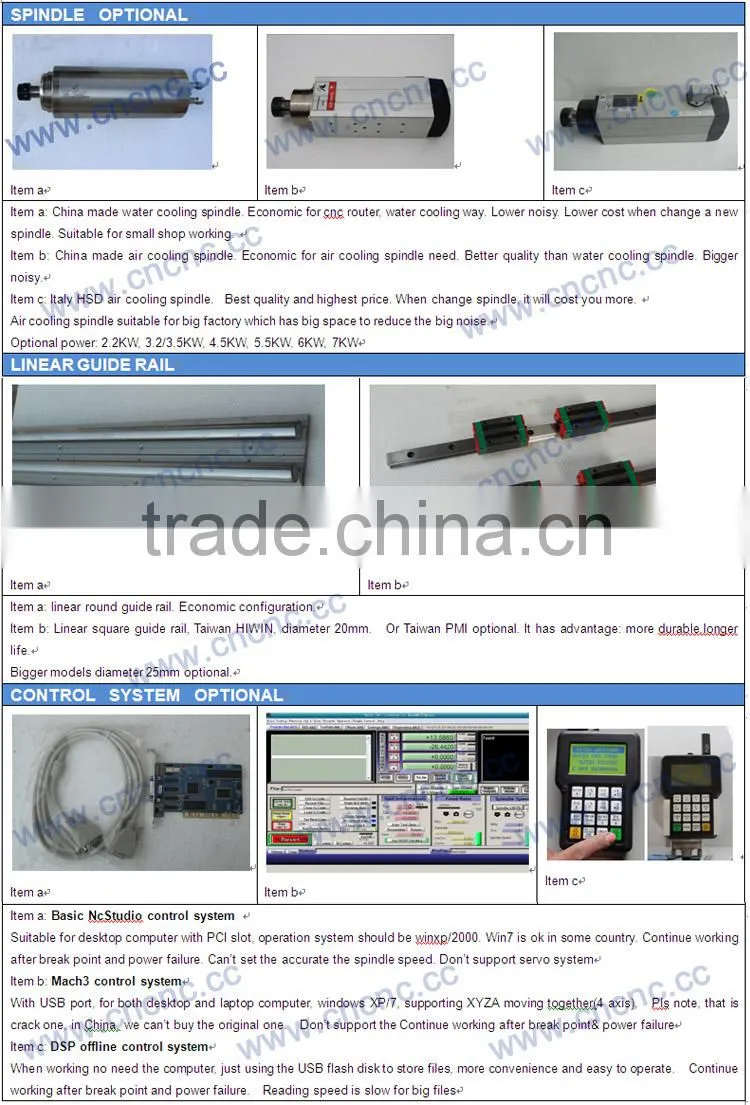

Spindle |
2.2 KW water cooling |
Spindle speed |
0-24000rpm |
Collet type |
ER20 |
Tools diameter |
3.175mm, 4mm, 6mm,8mm,10mm,12.7mm |
Control system |
DSP control system |
Design software when delivery |
Artcam |
Compatible design software |
Artcam, Type3, Ucancam, JDPaint, MasterCAM |
Command |
G code ,U00, mmg nc,etc |
Running ambient temperature |
0-45 |
Relative humidity |
30%-75% |
Voltage |
AC 220V,50/60Hz, single phase |
