27SiMn Seamless Steel Pipe ASTMA519
- Yantai Qingdao or as client's request
- T/T
You May Like
-
Stress Relieved and Honed Steel Pipe Top Supplier
-
E235 Cold Drawn Seamless Mild Carbon High Precision Steel Pipe
-
Better Inner Roughness Honed Steel Pipe Top Supplier
-
High Precision Carbon Seamless Steel Pipe Widely Used
-
Hydraulic Cylinder Using Steel Tube Stress Relieved
-
Whole Sale Honed Seamless Steel Pipe After Stress Relieved
Product Details
| Thickness | 2, 30 | Section Shape | Round | |
| Outer Diameter | 25 - 300 mm | Place of Origin | Shandong, China | |
| Secondary Or Not | Non-secondary | Application | Hydraulic Pipe | |
| Certification | Other, ISO9001:2008 | Surface Treatment | Other, as client's request | |
| Alloy Or Not | Non-alloy |
Product Description
Product name: 27SiMn seamless steel tube
Outer diameter: 30-300mm
ID tolerance: H7 H8 H9
Package: standard package with plastic bags or wooden cartons or as client's request
Delivery time: within 20-30 days after receiving downpayment or as client's request
Trade term: FOB Yantai, Qingdao or as client's request
Payment term: T/T or L/C or as client's request

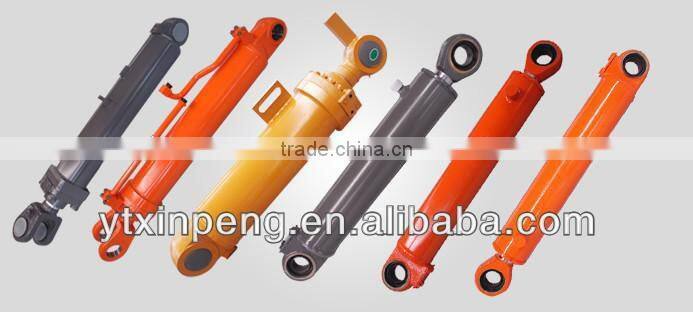

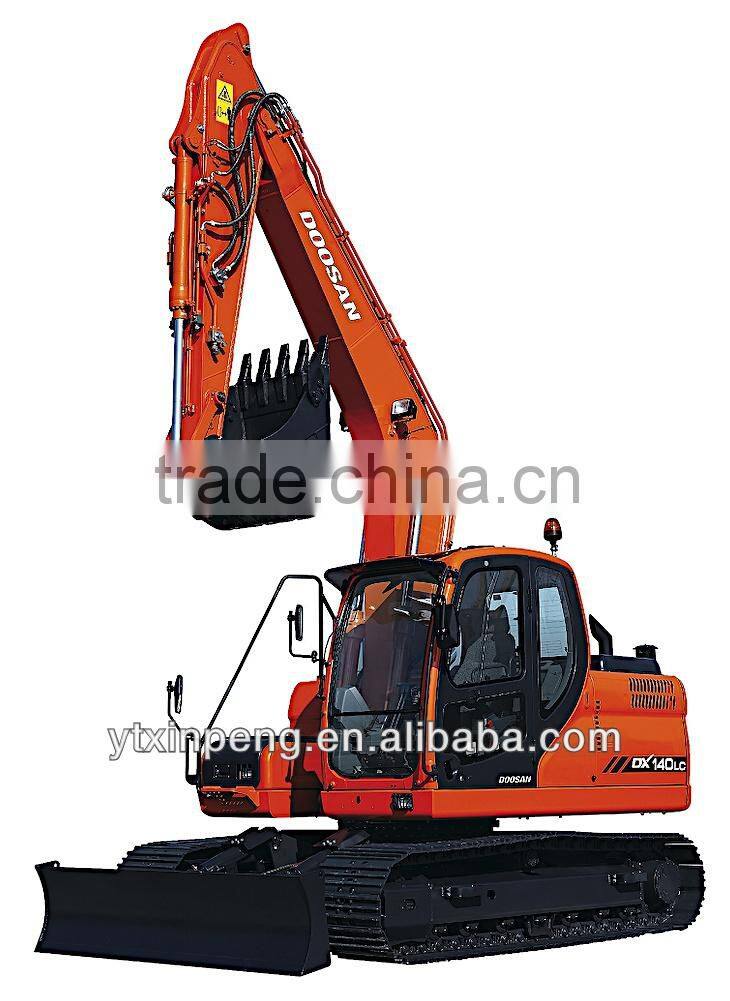

Application: hydraulic cylinder for heavy machine, excavator, textile machine, oil drilling and other field
Other popular products
mainly products: cold drawn/rolled steel pipe, stress relieved steel pipe, SRB or hones steel pipe, polishing steel pipe etc.
1. Hydraulic Cylinder Tube------Main products of Xinpeng,
Used in the hydraulic cylinder of the heavy machinery, Cranes, excavator also forklifts. Material is various, mainly STKM-13CT ST52 CK45 and 1020. We can work and get the mechanical property of the clients need and extended the life of the hydraulic cylinder.
2.SRB tube ----- used inElevatorbuffer and Hydraulic Cylinder .This kind tube have a better roughness inner the tube, ra0.2-0.4um and can use directly in the hydraulic cylinder tube. Range: ID 50-250mm and Length can work at most 6M.
3. Cold finished tube---- Widely Used. Processing range 30-300mm, biggest length is 11M.
Xinpeng Have passed ISo9001 verified from 2008; each tube of ours is strictly in quality control that can assure the product quality of Xinpeng.
Mechanical Property
Delivery Condition | Cold drawn+stress-relieved(BK+S)(SR) | Cold finished(hard)(BK) | |||
Steel Grade | Tensile strength (Rm Mpa)
| Yield strength (ReH Mpa)
| Elongation A5% | Tensile strength (Rm Mpa)
| Elogation A5%
|
20# | ≥520 | ≥375 | ≥15 | ≥550 | ≥8 |
45# | ≥600 | ≥520 | ≥10 | ≥640 | ≥5 |
16Mn(Q345B Q345D) | ≥600 | ≥520 | ≥14 | ≥640 | ≥5 |
25Mn | ≥600 | ≥510 | ≥15 | ≥640 | ≥5 |
27SiMn | ≥760 | ≥610 | ≥10 | ≥800 | ≥5 |
St45 | ≥520 | ≥375 | ≥15 | ≥550 | ≥5 |
E355(St52) | ≥600 | ≥520 | ≥14 | ≥640 | ≥5 |
SAE1026 | ≥600 | ≥510 | ≥15 | ≥640 | ≥5 |
Technique and Tolerance
Working Method | Range | Size of ID | Tolerance | |||||
ID tolerance | WT(mm) | Ovality | Curvature | |||||
H8 | H9 | H10 | ||||||
Cold Drawn | 25-250 | >30-50 | +0.0390 | +0.0620 | +0.1000 | ±5% to 7.5% ID>210mm ±10% | ≤0.10-0.20 | 0.3 |
Cold rolling | 25-150 | >50-80 | +0.0460 | +0.0740 | +0.1200 | |||
Cold drawn-hone | 40-250 | >80-120 | +0.0540 | +0.0870 | +0.1400 | |||
Cold drawn-SRB | 50-250 | >120-180 | +0.0630 | +0.1000 | +0.160 | |||
Cold drawn-polish | 40-250 | >180-250 | +0.0720 | +0.1150 | +0.1850 | |||
Cold drawn-polish-SRB | 50-250 | Other size and technique parameter upon request | ||||||
Certificate
Strictly according to system verified ISO9001:2008, all our products are in high quality control and tight tolerance.
Application
Widely used in hydraulic system with precision steel tube, injection molding machine with precision steel tube, hydraulic press with precision steel tube, shipbuilding with steel tube, EVA foaming, hydraulic machinery, hydraulic cutting machine, shoe making machinery, hydraulic equipment, high pressure tubing, hydraulic tubing, card sets of joints, pipe joints, rubber machinery, forging machinery, casting machinery, engineering machinery, automotive high pressure steel pipe concrete pump, sanitation vehicle, automobile industry, shipbuilding industry, metal processing, military industry, diesel engine, the internal combustion engine, air compressor, construction machinery, forestrymachinery, etc.
Packing&Shipping
1. bundle packing
2. marking as per customer's requests
3. paint on the pipe as per customer request
4. pipe caps as customer request
Delivery condition
1. NBK(+N)
after cold forming, eventually above phase transition point, in a protective atmosphere of annealing oxidation medium
2. GBK(+A)
after cold forming, annealing in non oxidizing medium protective gas
3. BK(+C)
the final heat treatment after cold forming, therefore small steel pipe plastically, the plastically degree does not guarantee
4. BKW(+LC)
after final heat treatment, a tiny cold drawing deformation, continue again when machining steel pipe allowed inside certain limits cold deformation(bending, flaring)
5. BKS(+SR)
have a stress relief after cold forming, heat treatment, steel pipe can be carried out within a certain limit in the appropriate processing.
More products details pls contact us!
