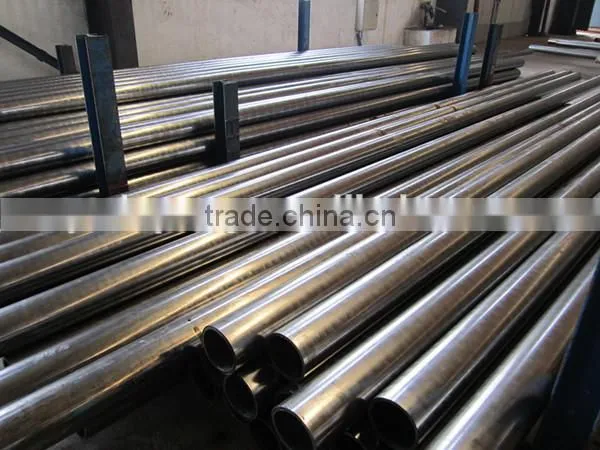

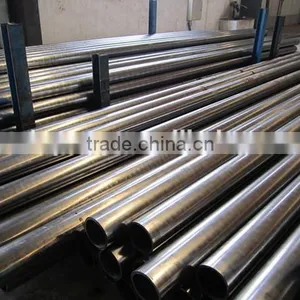

Product: Wellknown cold rolled steel pipe
Technical specification: Suitable for hydraulic cylinder tube
Grade:20# 45# 16Mn 25Mn 27SiMn
Outer diameter: 30-250mm
Wall thickness: 2-30mm
Elongnation: >15
Package: standard packing with plastic bags or as client's request
Delivery time: within 20-30 days after receiving downpayment or as client's request
Trade terms: FOB Yantai, Qingdao or as client's request
Main Features: high precision, excellent brightness, no oxidization on the outer and inner walls after heat treatment, high cleanness inside wall. The steel tube is able to stand high pressure. No deformation after cold bending, no crack after flaring and flattening .
Main Application:to be used in hydraulic system, automobile and in the occasion where the high precision, brightness, cleanness and mechanical properties of the tube are required
Process
Equipped with JLB250T hydraulic cold drawn set, LD120 cold rolling set, annealing furnace, strong honed machine, polising machine,lathe,saws CNC skived and roller burnished machine, kinds of testing machine.
Technique and tolerance
Working Method |
Range |
Size of ID |
Tolerance |
|||||
ID tolerance |
WT(mm) |
Ovality |
Curvature |
|||||
H8 |
H9 |
H10 |
||||||
Cold Drawn |
25-250 |
>30-50 |
+0.0390 |
+0.0620 |
+0.1000 |
±5% to 7.5% ID>210mm ±10% |
≤0.10-0.20 |
0.3 |
Cold rolling |
25-150 |
>50-80 |
+0.0460 |
+0.0740 |
+0.1200 |
|||
Cold drawn-hone |
40-250 |
>80-120 |
+0.0540 |
+0.0870 |
+0.1400 |
|||
Cold drawn-SRB |
50-250 |
>120-180 |
+0.0630 |
+0.1000 |
+0.160 |
|||
Cold drawn-polish |
40-250 |
>180-250 |
+0.0720 |
+0.1150 |
+0.1850 |
|||
Cold drawn-polish-SRB |
50-250 |
Other size and technique parameter upon request |
||||||
Application
Widely used in hydraulic system with precision steel tube, injection molding machine with precision steel tube, hydraulic press with precision steel tube, shipbuilding with steel tube, EVA foaming, hydraulic machinery, hydraulic cutting machine, shoe making machinery, hydraulic equipment, high pressure tubing, hydraulic tubing, card sets of joints, pipe joints, rubber machinery, forging machinery, casting machinery, engineering machinery
Company introduction
Established in December 1992, with registered capital of 5 million yuan and plant and office space of 12,000 square meters, covering an area of 20,000 square meters , our company mainly produces various specifications of cold drawn,rolled precision steel tube,hydraulic cylinder tube and SRB Tube, which are widely used in such industries as hydro-cylinder, automobile, engineering machinery, textile machinery, printing machinery, oil drilling, etc. Our company is also the distributor of several domestic well-known steel tube plants in Shandong, and mainly distributes seamless steel tubes of all kinds of materials.
Waiting for your contact!
