Specifications
2.2kw water cooling spindlestainless steel water slot
linear square guide rail
whole ball screw
3D processing
cnc metal engraving machine with rotary axis (ZK-6090)
Application
The Computerized CNC Metal Engraving and Cutting Machine is suitable for various metal, metal tag, nameplate, dog tag, metal artware engraving and sheet metal cutting, materials such as copper, aluminum, iron, steel, stainless steel…
Also can for wood, MDF, PVC, PMMA, acrylic, plywood engraving& cutting, stone, glass, plastic engraving…
Technical parameters
Effective working area | 600(X)mm*900(Y)mm*200(Z)mm |
Max.thickness of the materials | ≤200mm(the distance between Z-axis and the bottom of the working station) |
Materials | Cast iron machine bed, cast aluminum gantry |
Water cooling system | Stainless steel water slot |
Working table | Aircraft aluminum T slot |
Guide rail | Linear square guide rail |
Transmission | Ball screw for X Y Z-axis |
Driving mode | Stepper motor |
Spindle motor | 2.2kw water cooling |
Spindle speed | 0-24000rpm/min |
Empty traveling speed | 0-8000mm/min |
Engraving speed | 0-6000mm/min |
Resetting accuracy | 0.05mm |
Control system | PCI NcStudio (or DSP offline) |
Carving Instructions | G code *Uoo *mmg *plt HPGL |
Software environment | Windows 2000 / XP |
Packing size | 1500*1200*1630mm |
Gross weight | 370kg |
Features
1. Simple operation and installation, when delivery we will provide the videos for training.
2. More steady and strong equipped with cast iron machine bed.
3. Can be controlled by computer, showing the processing path and estimated processing time.
4. Water cooling system, ensuring the processing for the metal/stone/glass cooling.
5. 2.2kw water cooling spindle, more powerful.
6.Rotary axis for cylinder processing, diameter 150mm, working length 600mm, gear transmission
7. Function of re-carving after break point and power off, reducing the materials wasting.
8.Good software compatibility, all kinds of CAD/CAM ,such as Typ3 , ArtCam, Castmate, UcanCam,Artcut engraving software, Coredraw, etc.

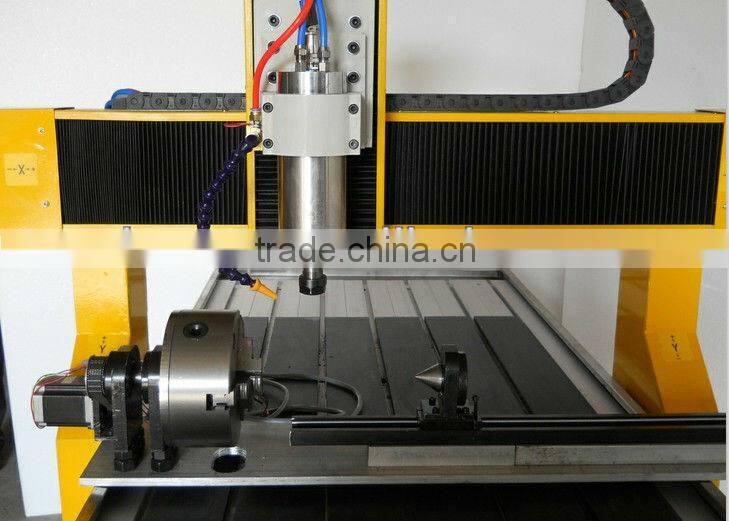

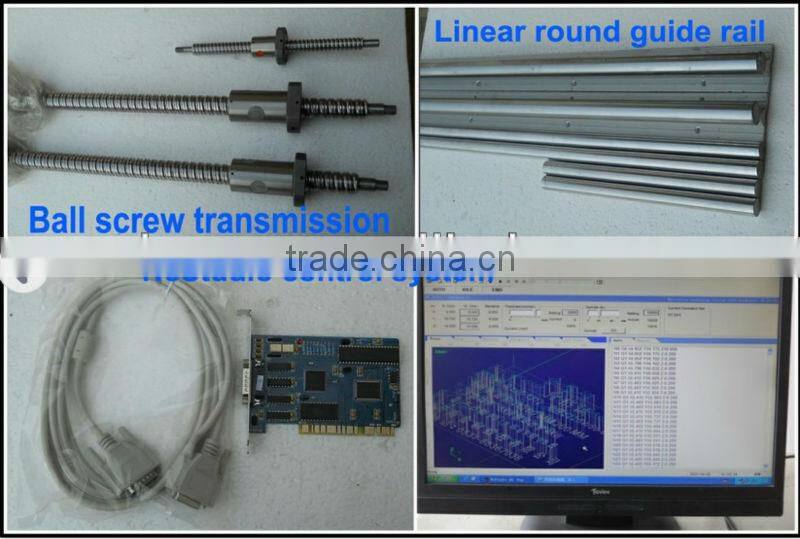

Reference machine pictures
machine package
Sample pictures
Also have other models
ZK-3030(300*300MM),ZK-4040(400*400mm),ZK-5060(500*600mm), ZK-6060(600*600mm),ZK-6090(600*900mm), ZK-1212(1200*1200mm),ZK-1215(1200*1500mm), ZK-1218(1200*1800mm), ZK-1224(1200*2400mm), ZK-1325(1300*2500mm), ZK-2030(2000*3000mm)
or we can design according to your need!
For further details, please feel free to contact us!
