ABOUT OUR COMPANY :
we are the top 5 manufacture of precision seamless steel tube in China ,and we have passed ISO90012008 verified certificate ,our company mainly produces various specificaion cold finished seel tube which are widely used in hydraulic cylinder ,oil drilling,automobile ,textil machinery ,and so on .
Description |

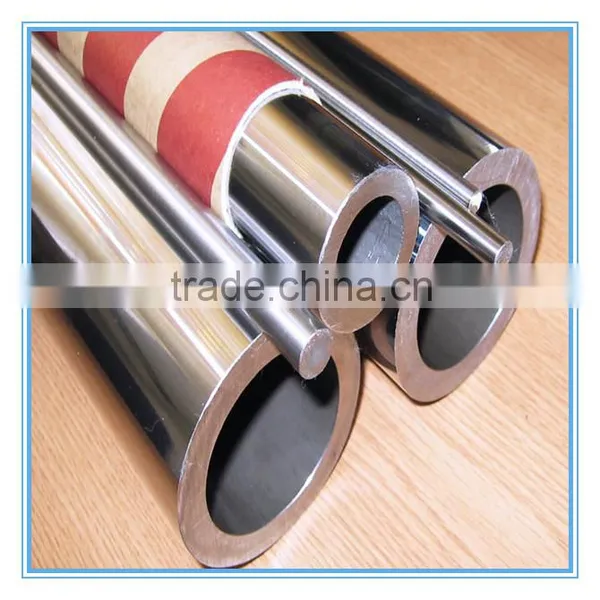

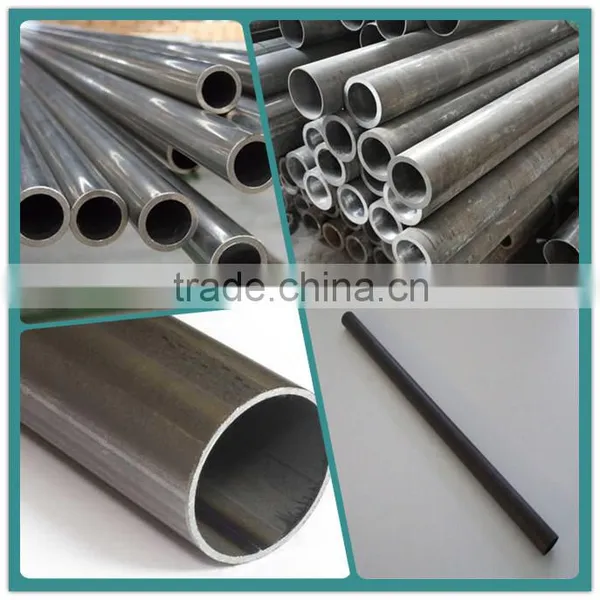

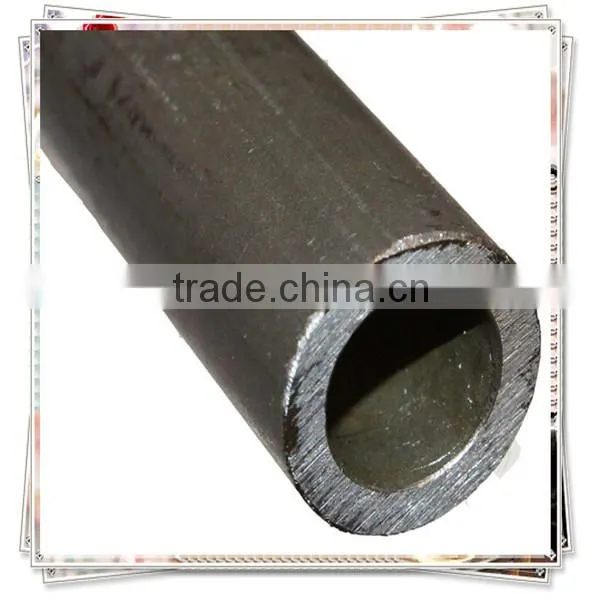

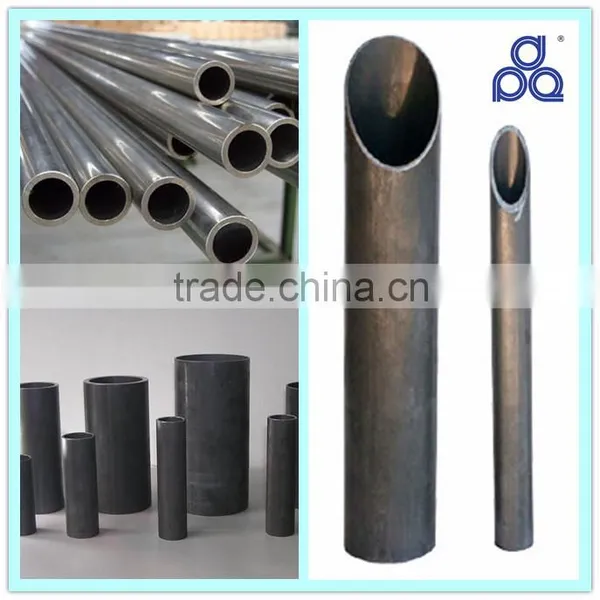

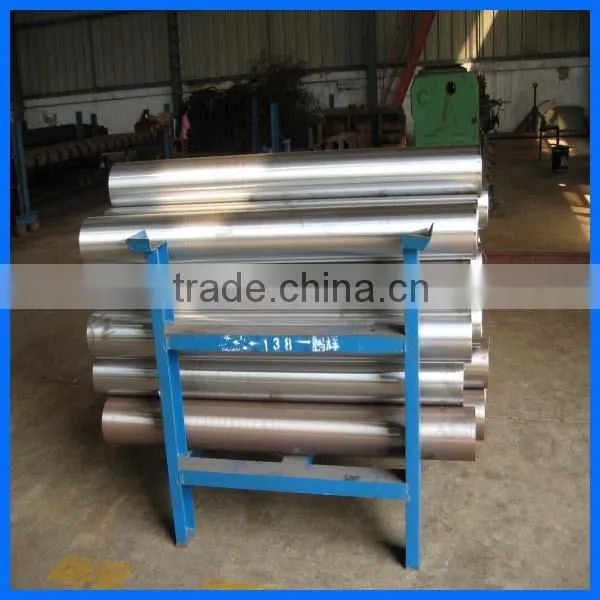

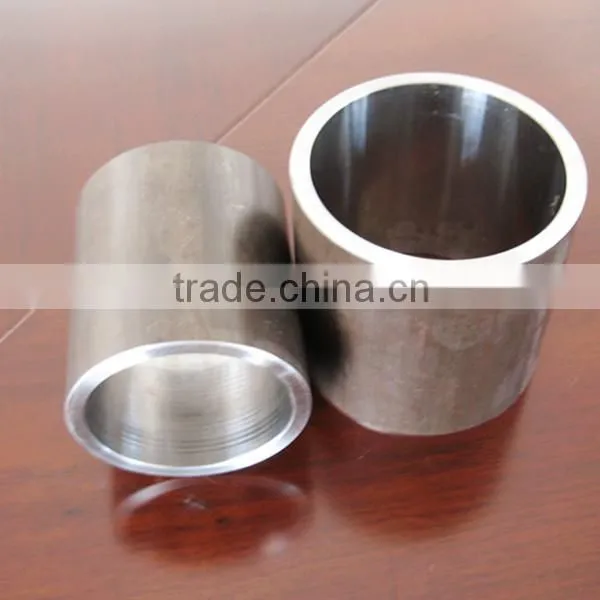

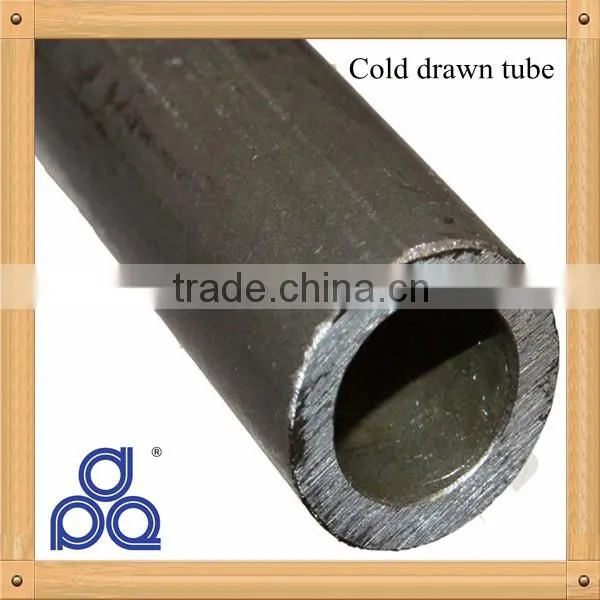

ASTM A519 mechanical tube carbon precision seamless steel pipe |
Standard |
ASTM ,GB ,DIN, EN AISI etc |
Material |
10#-45#,16Mn,ST35-ST52,Q345 |
O.D |
30mm-250mm |
W.T |
2mm-30mm |
Length |
According to the customer’s need |
Surface/End |
According to the customer’s request |
Certificate |
ISO9001 2008 |
Technique |
Cold drawn /rolled ,hot rolled ,etc. |
Surface |
Polished, black, bright. or according to the customer’s acquirement |
Application |
Hydraulic cylinder , automobile, oil drilling etc. |
Package |
We usually bundle with steel strips ,branding parcel or wooden box outside or according to the customer’s need |
Delivery Time |
1.The products in stock will delivery immediately received the deposit 2.According to the order quantity, the delivery time ranges from ten days to twenty days |
the chemical com[osition
Material |
C |
Si |
Mn |
S(≤) |
P(≤) |
Cr |
Ni |
Mo |
C20# |
0.17—0.23 |
0.17—0.37 |
0.35—0.65 |
0.035 |
0.035 |
≤0.25 |
≤0.30 |
|
CK45# |
0.42—0.50 |
0.17—0.37 |
0.50—0.80 |
0.035 |
0.035 |
≤0.25 |
≤0.30 |
|
Q345B |
≤0.20 |
≤0.55 |
1.00—1.60 |
0.040 |
0.040 |
V:0.02-0.15 |
Nb:0.015-0.06 |
Ti:0.02-0.20 |
|
ST52 E355 16Mn |
≤0.20 |
≤0.55 |
1.00—1.60 |
0.045 |
0.045 |
V:0.02-0.15 |
Nb:0.015-0.06 |
Ti:0.02-0.20 |
25Mn |
0.22—0.30 |
0.17—0.37 |
0.70—1.00 |
0.035 |
0.035 |
≤0.25 |
≤0.25 |
|
27SiMn |
0.24—0.32 |
1.10—1.40 |
1.10—1.40 |
0.030 |
0.030 |
|
|
|
42SiMn |
0.39—0.45 |
1.10—1.40 |
1.10—1.40 |
0.030 |
0.030 |
|
|
|
42CrMo |
0.38—0.45 |
0.17—0.37 |
0.50—0.80 |
0.025 |
0.025 |
0.90—1.20 |
|
0.15—0.25 |
the mechanical of proerpty
Delivery |
cold finished(hard)(BK) |

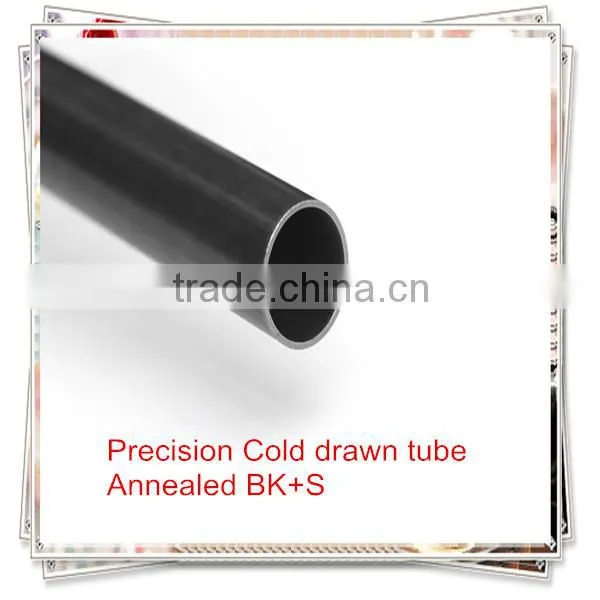

Cold drawn and stress-relieved(BK+S) |
|||
Steel grade |
Rm MPa |
Elongation |
Rm MPa |
ReH MPa |
Elonggation |
St45 |
≥550 |
≥5 |
≥520 |
≥375 |
≥15 |
20# |
≥550 |
≥8 |
≥520 |
≥375 |
≥15 |
St52 (E355) |
≥640 |
≥5 |
≥600 |
≥520 |
≥14 |
SAE1026 |
≥640 |
≥5 |
≥600 |
≥510 |
≥15 |
STKM 13C |
≥550 |
≥8 |
≥520 |
≥375 |
≥15 |
Q345B |
≥640 |
≥5 |
≥600 |
≥520 |
≥14 |
CK45 |
≥640 |
≥5 |
≥600 |
≥520 |
≥10 |
(1)Delivery time: In 20 days or according to client's requires
(2)Trade terms: EXW/FOB/CIF etc
(3)Payments: T/T or L/C or according to client's requires
(4)Port: Yantai or Qingdao
(5)MOQ: 5 metric tons or at customer's demands
(6)Packing: we usually bundle with steel strips ,branding parcel or wooden box outside ,or according to the customer’s acquirement
1.100% PMI,Spectro Chemical Aanlysis Test for Raw Material |
2.100% Dimension & Visual Examination |
3. Mechanical Properties Test Include Tension Test,Flaring Test (For Seamless tube/pipe)/ Flange Test (For Welded Pipe & Tube), Hardness Test ,Reversed Flattening Test |
4.100% Hydrostatic Test or 100% NON-DESTRUCTIVE Test (ET or UT) |
5.Radiographic Test for Welded Pipe (shall be accordance with specification,or shall be as agreed upon between the purchaser and vendor) |
6.Straightness Test (optional) |
7.Roughness Test (optional) |
8.Intergranular Corrosion Test(optional) |
9.Impact Test (optional) |
10.Grain Size Determinations (optional) |
NOTES : ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION. |
