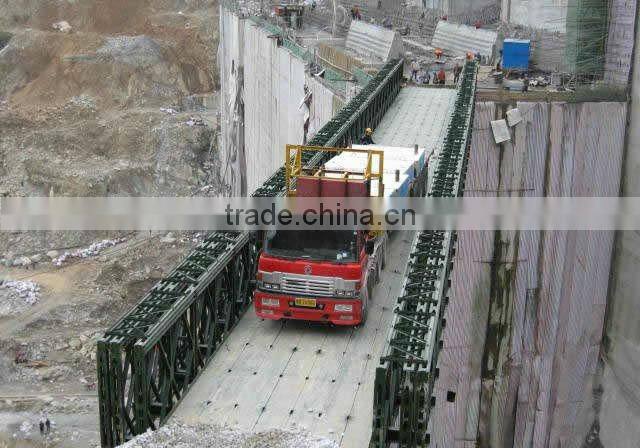

Steel Structure Bridge Component

Name: Steel Structure Bridge Component
Brand: zhongye
SKU: 123071133
Availability: InStock

Steel Structure Bridge Component thumbnail-1

Steel Structure Bridge Component photo-1

US$ 1,200 - 1,600 MOQ: 1 Set

Key Specifications

Get Latest Price

Standard:

ASTM, GB

Grade:

steel

Dimensions:

Q345B

Contact Supplier Request Quote Chat Now

Jiangsu Zhongye Traffic Engineering Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard ASTM, GB

Grade steel

Dimensions Q345B

Place of Origin Jiangsu, China

Brand Name zhongye

Type Heavy

Application Steel Structure Bridge

Specifications

1 Less expense, wide usage
2 Provide engineer guidance at site
3 Factory Provid Directly
4 use unskilled labor to instal

Bailey Bridge construction requires no special tools or heavy equipment for construction, the bridge elements are small enough to be carried in , and the bridge is strong enough to carry . It is considered a great example of military engineering.

Bailey Bridge requires no special tools or heavy equipment for construction, the bridge elements are small enough to be carried in , and the bridge is strong enough to carry . It is considered a great example of military engineering.

The compact 200 panel bridge: The compact 200 panel bridge is similar to the compact 100 panel bridge from their appearance. The difference is its increased panel height to 2.134m. It employed the method of alternating joints between Reinforcement Chords and the joints between panels. This method can decrease inelastic deformation caused by the oversized pinholes. Pre-arch method is used to additionally cut down mid-span and vertical deflection to a larger degree. Bolt-connected components use the orienting sleeve- fixing method to increase accuracy of connections. Shear is created in orienting sleeves and tension is developed in bolts, which increase the usage life of the bolts and ensure the safety of panel bridges. Wind resistant brace is made to be composite type and is connected to transom/girders to improve overall stability of panel bridges.

The part between braced frame and panels is fixed through bridging so as to prevent the whole bridge from side bending. After the erection, there will be a pre-arched degree over the span of the bridge. Besides it can be assembled into single-lane bridges. The compact 200 panel bridge can also be assembled into double lane bridge, hence it broadens its application range. It is suitable for the load designs of HS-15, HS-20, HS-25 and pedrail-50 etc.

Span Construction-Load Table ---Extra Single Lane (W=4200mm)
SPAN-ft	HS-15	HS-20	HS-25
30	SS	SS	SS
40	SS	SS	SS
50	SS	SS	SS
60	SS	SS	SS
70	SS	SS	SSR
80	SS	SSR	SSR
90	SSR	SSR	SSR
100	SSR	SSR	SSR
110	SSR	SSR	DS
120	SSR	DS	DSR1
130	DS	DSR1	DSR2H
140	DSR1	DSR2H	DSR3H
150	TSTSR2	DSR2H	DSR4H
160	DSR2H	DSR2H	TSR2
170	TSR2	TSR2	TSR3
180	TSR2	TSR3	TSR3H
190	TSR3H	TSR3	QSR4
200	QSR4	TSR3QSR3	QSR4

Span Construction-Load Table ---Double Lane (W=7350mm)
SPAN-ft	HS-15	HS-20	HS-25
30	SS	SS	SS
40	SS	SS	SS
50	SS	SS	SSR
60	SS	SSR	SSR
70	SSR	SSR	DS
80	SSR	DS	DSR1
90	SSRH	DSR1	DSR2H
100	DSR1	DSR2H	TSR2
110	DSR1	DSR2	QS
120	TS	DSR2H	TSR2
130	DSR2H	TSR2	TSR3
140	TSR2	TSR3	TSR3H
150	TSR3H	TSR3H	QSR4
160	QSR4	QSR4	QSR4
170	QSR4	QSR4
180	QSR4

1.SS shows one range one tier; DS shows two ranges one tier; TS shows three ranges one tier; DD shows two range two tiers etc.
2.If R follows SS, DS, DD, etc, means reinforce type,and R1 means only one range reinforced, R2 means two ranges reinforced etc.
