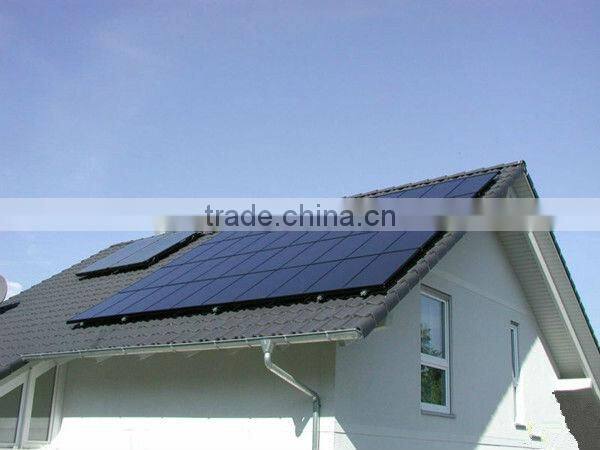

Complete Solar Power System 1kw for Home Ues

Name: Complete Solar Power System 1kw for Home Ues
Brand: RESUN
SKU: 123069869
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

RESUN

Model Number:

RS-HS-1KW

Suzhou Resun Solar Energy Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name RESUN

Model Number RS-HS-1KW

Specification Normal

Application Home

Output Voltage (V) 110V/120V 220V/240V

Load Power (W) 500W

Solar Power (W) 1KW

Work Time (h) 8Hours

Specifications

1.for off grid solar system
2.with inverter, controler, battery, solar panel ,mounting
3.easy installation
4. with CE TUV

Technical Data
Solar Panels	Type	4 X 250W Panels
	Rated Maximum Power (Pmax)	250W
	Cell Type	Polycrystalline
	Tolerance	± 3%
	Voltage @ Pmax (Vmp)	30.1V
	Current @ Pmax (Imp)	8.30A
	Short Circuit Current (Isc)	8.87A
	Open Circuit Voltage (Voc)	37.2V
	Nominal Operating Cell Temperature	47°C ± 2°C
	Panel Dimensions	164099040mm
	Standard Test Conditions	25°C 1.5AM ,1000W/m2
Inverter	SPEC	48V 1000W
	Wave Form	Pure sine wave
	Output Voltage	AC110V/ 220V
	Output Frequency	50Hz/60Hz
	Inverter Efficiency	90%
Battery	Voltage	12V
	Capacity	200AH
	Battery Type	Deep Cycle, Sealed Gel, Lead acid
Host box	Construction	Steel, Outdoor Rated
	Charge Controller	battery status indicators,
	Output Voltage	AC110V/ 220V
	Working Temp., Humidity	-20 ~ +70° C, 20 ~ 90% RH
	Storage Temp., Humidity	-20 ~ +70° C, 20 ~ 90% RH
Fitting List
Item name	Description	QTY
Solar Panels	poly 250w	4PCS
Battery	12V 200AH	4PCS
Inverter	2KW	1SET
Solar Panel Bracket	/	1SET
Host box	/	1SET
Cables	/	1SET
