Specifications
1 Less expense, wide usage2 Provide engineer guidance at site
3 Factory Provid Directly
4 use unskilled labor to install
5.Gavanized painted

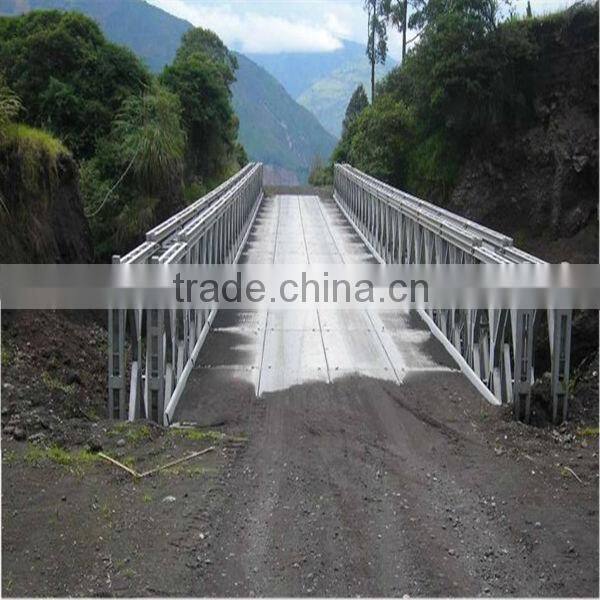

The compact 100 panel bridge can be easily dissembled and rapidly erected. The whole bridge is made by high-tensile strength steel. Main beam is light weight panels and the panels are connected by panel connection pins.
It is easy to assemble or disassemble and transport. It can also be assembled into different forms of panel bridges according to their span length and transportation requirement. So, it has been widely applied as emergency transportation, temprary or permanent bridge.
Its suitable load design is such like HS-15, HS-20, HS-25 and pedrail-50 etc. equivalent.
The compact 200 panel bridge is similar to the compact 100 panel bridge from their appearance. The only difference is the panel height of 2.134m. So, its performance has been highly improved. in addition, there are two-lane structures available, with width of 7.56m, which broden its usage.
Application of the compact standard 200 panel bridge:
Single lane: Bridge deck width: 4.2m. Span length: 9.14-76.2m
Double lanes: Bridge deck width: 7.4m. Span length: 9.14-57.9m
| Span Construction-Load Table --- Extra Single Lane (W=4200mm) | Span Construction-Load Table ---Double Lane (W=7350mm) | |||||||
| SPAN-ft | HS-15 | HS-20 | HS-25 | SPAN-ft | HS-15 | HS-20 | HS-25 | |
| 30 | SS | SS | SS | 30 | SS | SS | SS | |
| 40 | SS | SS | SS | 40 | SS | SS | SS | |
| 50 | SS | SS | SS | 50 | SS | SS | SSR | |
| 60 | SS | SS | SS | 60 | SS | SSR | SSR | |
| 70 | SS | SS | SSR | 70 | SSR | SSR | DS | |
| 80 | SS | SSR | SSR | 80 | SSR | DS | DSR1 | |
| 90 | SSR | SSR | SSR | 90 | SSRH | DSR1 | DSR2H | |
| 100 | SSR | SSR | SSR | 100 | DSR1 | DSR2H | TSR2 | |
| 110 | SSR | SSR | DS | 110 | DSR1 | DSR2 | QS | |
| 120 | SSR | DS | DSR1 | 120 | TS | DSR2H | TSR2 | |
| 130 | DS | DSR1 | DSR2H | 130 | DSR2H | TSR2 | TSR3 | |
| 140 | DSR1 | DSR2H | DSR3H | 140 | TSR2 | TSR3 | TSR3H | |
| 150 | TSTSR2 | DSR2H | DSR4H | 150 | TSR3H | TSR3H | QSR4 | |
| 160 | DSR2H | DSR2H | TSR2 | 160 | QSR4 | QSR4 | QSR4 | |
| 170 | TSR2 | TSR2 | TSR3 | 170 | QSR4 | QSR4 | ||
| 180 | TSR2 | TSR3 | TSR3H | 180 | QSR4 | |||
| 190 | TSR3H | TSR3 | QSR4 | |||||
| 200 | QSR4 | TSR3QSR3 | QSR4 | |||||
|
Remark: 1.SS shows one range one tier; DS shows two ranges one tier; TS shows three ranges one tier; DD shows two range two tiers etc. 2.If R follows SS, DS, DD, etc, means reinforce type,and R1 means only one range reinforced, R2 means two ranges reinforced | ||||||||
